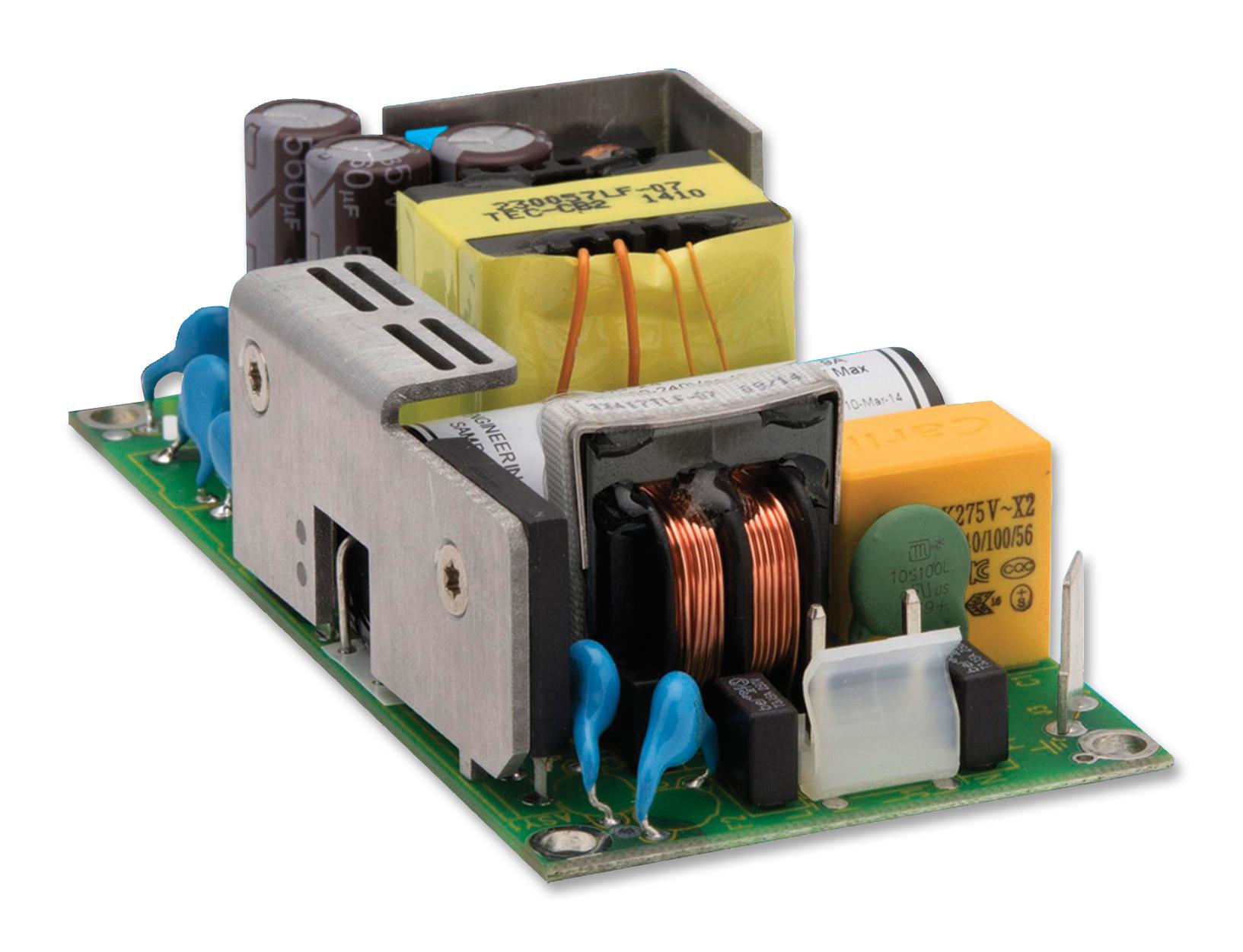

TDK-LAMBDA ZMS10024 Medical Power Supply
The ZMS100 Series power supplies are compact, highly efficient units suitable for medical and industrial applications. They operate from 85-264VAC input, with convection cooling for 80W and forced-air cooling for up to 100W, offering excellent reliability and a long lifespan thanks to electrolytic capacitors. Certified for medical use with 2x MoPP isolation, these supplies feature overcurrent and overvoltage protection, high efficiency up to 89%, and robust safety standards including IEC/EN 60950-1 and 60601-1. Their compact dimensions (50.8 x 101.6 x 31.9 mm) and slim profile enable space-saving integration into various equipment designs.
TDK-LAMBDA ZMS10024 Medical Power Supply Specifications:
- AC Input Voltage range: 85-264VAC, 47-63Hz
- Input Current: 2.0A at 230VAC, 1.0A at 115VAC
- Efficiency: Up to 89%
- Cooling: Convection for 80W, Forced air for 100W
- Operating Temperature: -20°C to +70°C, derating to 50% load from 50°C to 70°C
- Storage Temperature: -40°C to +85°C
- Isolation: >100MO at 26°C & 70%RH, 4kVac input-to-output
- Dimensions: 50.8 x 101.6 x 31.9 mm
- Weight: 150g
- Safety Certifications: IEC/EN 60950-1, 60601-1, includes 2x MoPP isolation
- Vibration & Shock: Meets EN standards, withstands 10-500Hz at 2G
- Humidity: 5-95% RH non-condensing
- Overcurrent Protection: Auto recovery, Overvoltage Protection: Latching
Buy the TDK-Lambda ZMS100 – Reliable Power Supplies for Industrial Applications
Purchase the TDK-Lambda ZMS100 Series power supplies online for reliable performance in medical and industrial equipment. These compact units deliver up to 100W with high efficiency and robust safety features, including medical-grade approvals and reinforced isolation. Designed for versatile installation, they operate over a wide voltage range and feature advanced protection against overcurrent and overvoltage. Ideal for space-constrained settings, these power supplies ensure long-term reliability, compliance with safety standards, and seamless integration into various electronic and medical systems. Buy now for dependable power solutions.
Get TDK-Lambda ZMS100 power supplies today—built for precision, efficiency, and long-lasting durability in medical and industrial environments.
Frequently Asked Questions
Where can I buy TDK-LAMBDA ZMS10024?
You can click on the BUY or RFQ button to purchase ZMS10024 from an authorized TDK-LAMBDA distributor.
How do I troubleshoot issues or seek technical support for part ZMS10024?
You can download the ZMS10024 datasheet or visit the TDK-LAMBDA website for support.
Who is the manufacturer of ZMS10024?
TDK-LAMBDA
