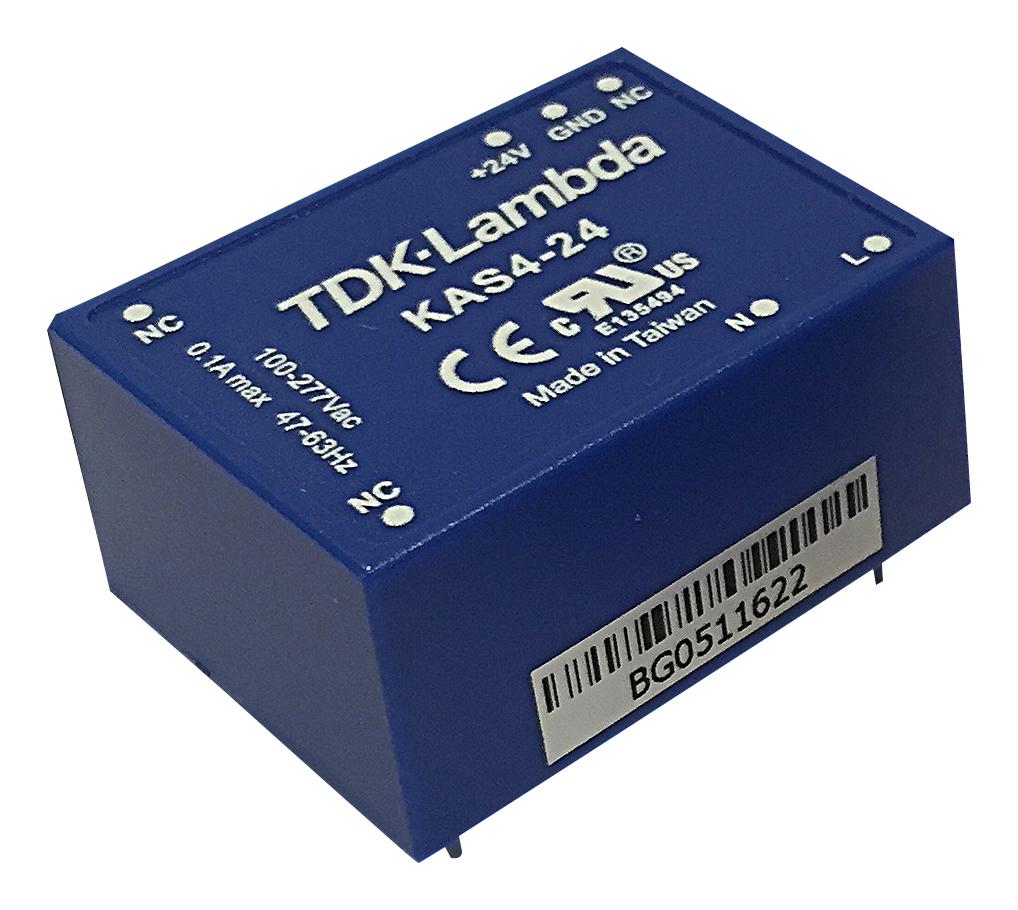

TDK-LAMBDA KAS424 Industrial Power Supply
The KAS Series consists of compact PCB-mount wide AC-DC power supplies designed for industrial, broadcast, and communication applications. These supplies support input voltages from 90-305VAC and 120-430VDC, offer low no-load power consumption, and operate in a wide temperature range from -40°C to +80°C. They feature protections like hiccup mode overcurrent and are designed with a resin UL 94V-0 case for safety. Suitable for professional environments, they ensure reliable power delivery in compact form factors, with RF immunity and UL/CSA approvals.
TDK-LAMBDA KAS424 Industrial Power Supply Specifications:
- Input Voltage Range: 90-305VAC 47-63Hz or 120-430VDC
- Inrush Current Limiting: 30/50A (115/230VAC) at cold start, requires 10 5A external NTC thermistor
- Input Current: 75/55mA (115VAC), 110/70mA (230VAC)
- No Load Power Consumption: less than 0.3W
- Operating Temperature: -40°C to +80°C, derates linearly from 60°C to 80°C load
- Storage Temperature: -40°C to +85°C
- Humidity: 10% to 95% RH (non-condensing)
- Cooling Method: Convection
- Withstand Voltage: 3kVAC from input to output
- Safety Certifications: UL, CSA, IEC/EN60335-1, CE Mark
- Dimensions: 28.5 x 25.8 x 17.0 mm for the smaller model, 37.0 x 27.5 x 17.5 mm for the larger, PCB mountable with UL 94V-0 resin case
- MTBF: Over 450,000 hours as per MIL-HDBK-217F
- Warranty: 3 years
Buy the Buy TDK Lambda KAS Series Part Number KAS424 Online
Secure your industrial power needs with the TDK Lambda KAS424 power supply, featuring a wide input range, low power consumption, and comprehensive safety certifications. Designed for professional industrial, broadcast, and communication environments, it ensures stable operation across a broad temperature range. Its compact PCB-mount design with UL 94V-0 resin casing offers durability and safety. Ideal for applications requiring reliable, low-noise power, this supply guarantees seamless integration into demanding systems. Purchase online now for quick delivery and proven performance.
Buy TDK Lambda KAS424 now and experience unmatched reliability and performance with its versatile industrial power capabilities.
Frequently Asked Questions
Where can I buy TDK-LAMBDA KAS424?
You can click on the BUY or RFQ button to purchase KAS424 from an authorized TDK-LAMBDA distributor.
How do I troubleshoot issues or seek technical support for part KAS424?
You can download the KAS424 datasheet or visit the TDK-LAMBDA website for support.
Who is the manufacturer of KAS424?
TDK-LAMBDA
