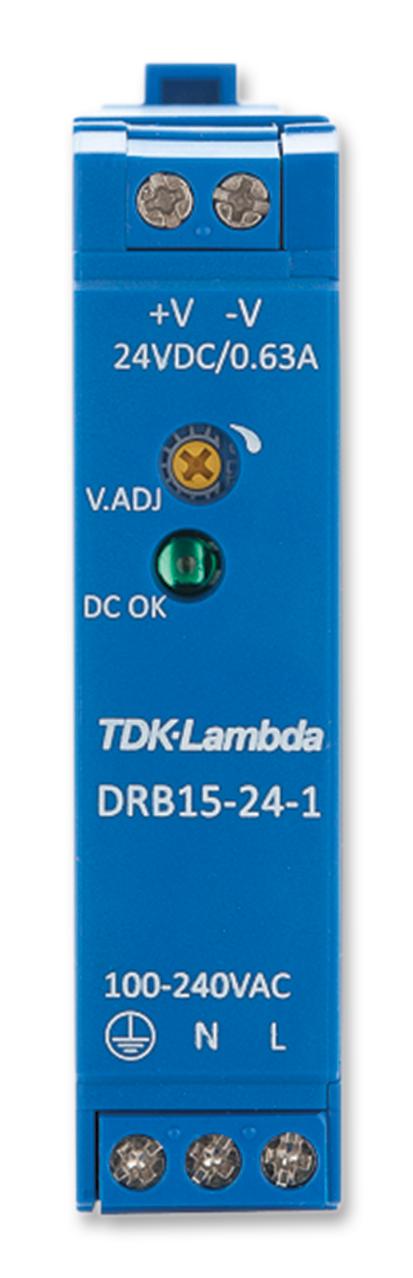

TDK-LAMBDA DRB15241 Industrial DIN Rail Power Supply
The TDK-Lambda DRB Series consists of compact, high-efficiency DIN rail mount power supplies ranging from 15W to 100W. Designed for industrial applications, these supplies feature efficiencies up to 91%, low no-load power consumption, and excellent thermal performance. Their wide input voltage range of 85-264VAC and robust safety approvals ensure reliable performance in various environments. The series supports serial operation, includes green LED indicators for DC OK signals, and offers adjustable output voltage for versatile setup in automation and control systems. Designed with flame-retardant polycarbonate cases, these power modules are ideal for space-conscious industrial automation and renewable energy projects.
TDK-LAMBDA DRB15241 Industrial DIN Rail Power Supply Specifications:
- Input Voltage Range: 85-264VAC, withstands 300VAC for 5 sec
- Input Frequency: 47-63Hz
- Inrush Current: 35A-50A (cold start)
- Power Factor: up to 0.98/0.93 at 110/230VAC
- Output Voltage: 5V, 12V, 24V, 48V options
- Output Current: 0.63A to 4.2A depending on model
- Line and Load Regulation: 50-240mV
- Ripple & Noise: Max 20-40mV
- Over Current Protection: Hiccup with auto recovery
- Over Voltage Protection: Latching mode at 115%-135% Vout
- Efficiency: Up to 91% at 230VAC
- Hold-up Time: 20ms at 230VAC, full load
- Operating Temperature: -20°C to +70°C (derating applies)
- Storage Temperature: -40°C to +85°C
- Dimensions: Ranges from 18x75x90mm to 45x75x100mm
- Weight: 85g to 300g
- Case Material: Flame-retardant polycarbonate (UL94 V-0)
- Safety Approvals: UL60950-1, CSA22.2 No.60950-1, EN60950-1
- Emissions: EN55022, CISPR22 class B
- Immunity: EN61000-4 series
- Cooling Method: Convection
Buy the Buy TDK-Lambda DRB Series Power Supply Part Number DRB15241 Online
Purchase the TDK-Lambda DRB Series power supply online to ensure reliable energy management for your automation or renewable energy projects. These compact and efficient units feature adjustable output voltage, excellent thermal performance, and UL safety approvals. With a wide input voltage range of 85-264VAC and efficiency up to 91%, they reduce energy consumption and operational costs. Easy to install on DIN rails, their robust case design offers durability in harsh environments. Trust TDK-Lambda for premium industrial power solutions with quick online availability and excellent customer support.
Buy TDK-Lambda DRB15241 now and experience unmatched reliability and performance in industrial automation and renewable energy setups.
Frequently Asked Questions
Where can I buy TDK-LAMBDA DRB15241?
You can click on the BUY or RFQ button to purchase DRB15241 from an authorized TDK-LAMBDA distributor.
How do I troubleshoot issues or seek technical support for part DRB15241?
You can download the DRB15241 datasheet or visit the TDK-LAMBDA website for support.
Who is the manufacturer of DRB15241?
TDK-LAMBDA
