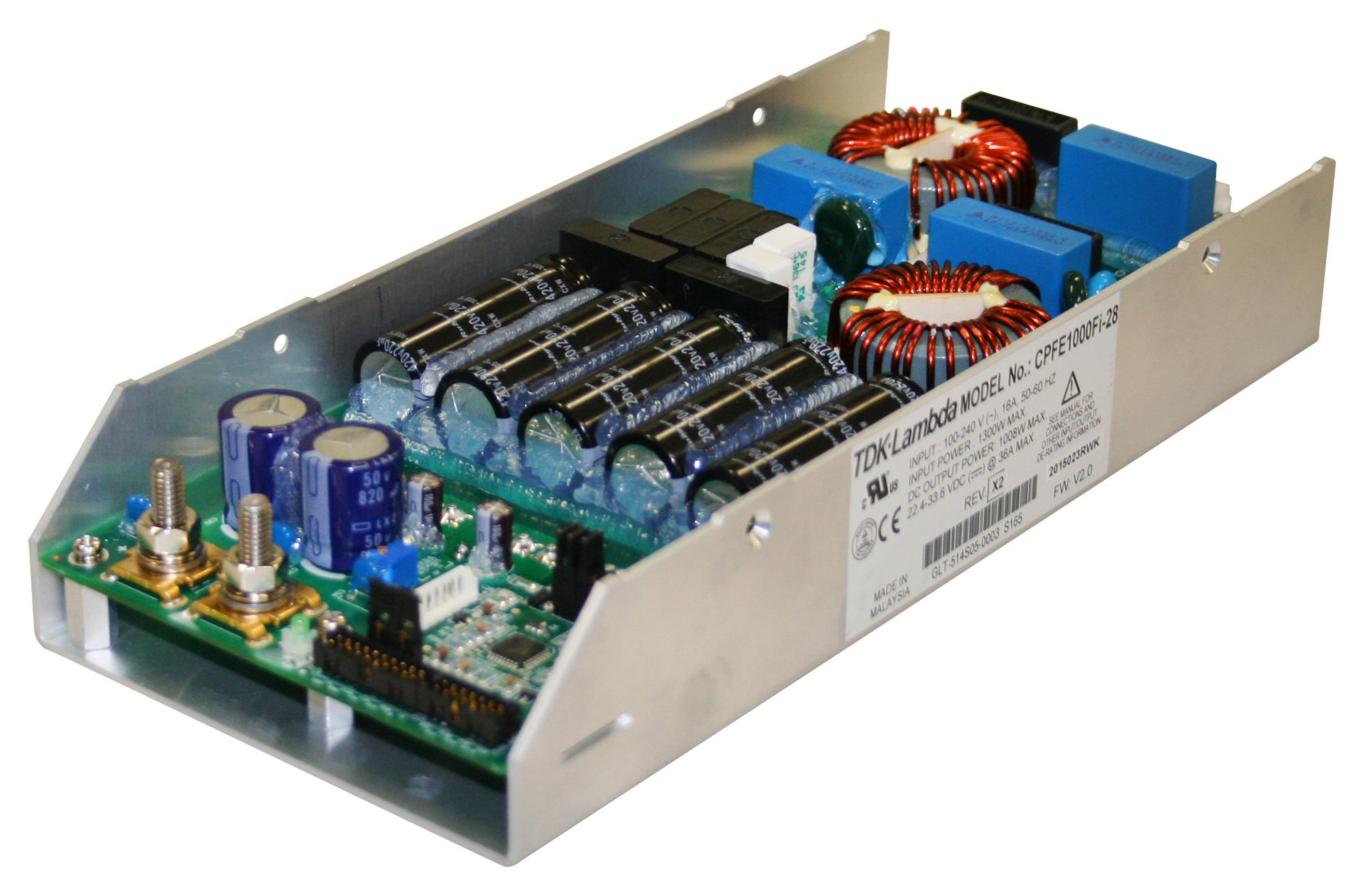

TDK-LAMBDA CPFE1000FI12 Industrial Power Supply
The CPFE1000FI series from TDK-Lambda offers efficient, conduction-cooled power supplies designed for industrial applications. With models ranging from 12V to 48V outputs, these supplies feature high efficiency between 79% and 86%, compact size, and protective coating options for harsh environments. They are suitable for systems requiring remote monitoring and control, providing a stable power supply with overcurrent and overvoltage protections. Designed to operate from 90 to 265VAC, these supplies feature UL, CSA, and CE safety approvals, and are ideal for industrial automation, broadcast, and renewable energy systems. Cooling is conduction-based, enabling quiet operation in demanding environments.
TDK-LAMBDA CPFE1000FI12 Industrial Power Supply Specifications:
- AC Input VAC: 90 to 265VAC, 47-63Hz
- Input Current: 13.6 / 6.6 A (Model dependant)
- Inrush Current (115 / 230VAC): 20/40 peak A
- Efficiency: 79% to 86% (Model dependant)
- Output Voltage: 12V, 28V, 48V options
- Output Voltage Setpoint Accuracy: +2% at 50% load
- Line Regulation: 48mV for 12V, 56mV for 28V, 96mV for 48V
- Ripple and Noise (20MHz BW): 1%, 2% below 0°C
- Over Current Protection: 105% - 140%, automatic recovery
- Over Voltage Protection: 125% - 145%, automatic recovery
- Operating Temperature: -40°C to +70°C ambient (derating applies), 85°C baseplate
- Storage Temperature: -40°C to +100°C
- Cooling: Conduction cooled
- Dimensions: 254 x 112 x 44 mm
- Weight: 1220 g
- Safety Approvals: UL60950-1, CSA 22.2 No 60950-1, EN60950-1, CE Mark
- Vibration & Shock: MIL-STD-810F compliant
- Line Dip: SEMI F47 compliant
- EMC: EN55022/EN55011 Class B, Class A radiated emissions
- Remote Sense: Yes, up to 500mV cable drop compensation
Buy the TDK-Lambda CPFE1000FI – Reliable Power Supply for Industrial Applications
Purchase your TDK-Lambda CPFE1000FI series power supply online now and benefit from reliable, efficient power solutions for industrial automation, broadcast, and renewable energy projects. These conduction-cooled supplies are compact, with high efficiency up to 86%, and feature remote monitoring, overcurrent, and overvoltage protections. Easy to integrate, they operate from 90 to 265VAC and are certified with UL, CSA, and CE approvals. Make your project more reliable and efficient by ordering today from our secure online store.
Order your TDK-Lambda Series CPFE1000FI power supply today and ensure stable, efficient power delivery for your industrial equipment and automation needs.
Frequently Asked Questions
Where can I buy TDK-LAMBDA CPFE1000FI12?
You can click on the BUY or RFQ button to purchase CPFE1000FI12 from an authorized TDK-LAMBDA distributor.
How do I troubleshoot issues or seek technical support for part CPFE1000FI12?
You can download the CPFE1000FI12 datasheet or visit the TDK-LAMBDA website for support.
Who is the manufacturer of CPFE1000FI12?
TDK-LAMBDA
