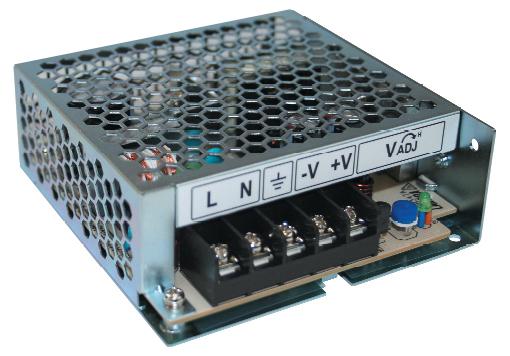

TDK-LAMBDA LS5024L Power Supply Module
The LS Series power supplies offer 25W to 150W of reliable, general-purpose power, featuring small size and efficiency. Designed for industrial, communications, and test applications, they withstand surges up to 300VAC, operate over a wide input voltage range, and include protection features like overcurrent and overvoltage protection. With a five-year warranty, they are easy to integrate into various electronic systems, ensuring stable power delivery and compliance with safety standards, making them ideal for diverse electronic and industrial applications.
TDK-LAMBDA LS5024L Power Supply Module Specifications:
- Input Voltage: 88-264VAC, switchable for 115/230VAC
- Input Frequency: 47-63Hz
- DC Input Voltage: 125-373VDC
- Inrush Current: 30-60A at 230VAC
- Overcurrent Protection: >110%
- Overvoltage Protection: 3.3V: 3.8-4.45V, 5V: 5.75-6.75V, 12V: 13.8-16.2V, 15V: 17.25-20.25V, 24V: 27.6-32.4V, 36V: 41.4-48.6V, 48V: 55.2-64.8V
- Hold Up Time: 12-80ms depending on model
- Leakage Current: Less than 100μA at 230VAC
- Operating Temperature: -25°C to +70°C with derating from +50°C
- Cooling Method: Convection
- Isolation Voltage: 1.5kVAC input to ground, 3kVAC input to output
- Size: Ranges from 3.1x2.0x1.1 inches to 6.3x3.8x1.5 inches depending on model
- Weight: 170g to 700g depending on model
- Certifications: UL, CSA, IEC 60950-1, CE, EMI compliant
- Warranty: Five years
Buy the Buy TDK Lambda LS Series Power Supplies Part Number LS5024L Online
Purchase the TDK Lambda LS5024L power supply online today to ensure reliable power for your computers, communication devices, and test equipment. Its wide input voltage range, surge withstand capability, and comprehensive protections guarantee stable operation in diverse environments. With a five-year warranty and certification for safety and EMC compliance, it is an ideal choice for professionals seeking durable, efficient, and easy-to-integrate power solutions for industrial, consumer, and networking applications. Order now to enhance your system’s performance.
Buy TDK Lambda LS Series power supplies, including the LS5024L, now and experience unmatched reliability and high performance in your electronic projects.
