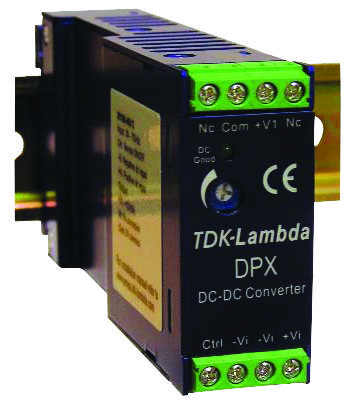

TDK-LAMBDA DPX4024T0512 DIN Rail DC/DC Converter
The DPX4024T0512 is a 40W DIN rail-mounted DC/DC converter designed for versatile industrial power management, defense, military, and aerospace applications. It offers three outputs with high efficiency around 85% at nominal input and full load. Features include fixed voltage, internal protection, typical startup time of 100 milliseconds, and a minimum isolation voltage of 1,600VDC. Its compact size and robust design make it ideal for demanding environments, ensuring reliable operation across a wide temperature range. The converter’s isolation and protection features enhance safety and system integrity in critical applications.
TDK-LAMBDA DPX4024T0512 DIN Rail DC/DC Converter Specifications:
- Max Output Power: 40W
- Efficiency: 85% typical at nominal input & full load
- Voltage Accuracy: Main +1%, auxiliaries +5%
- Output Voltage Range: 9.5V to 36VDC for single, dual, and triple outputs
- Isolation Voltage: 1600VDC minimum
- Temperature Range: -40°C to 85°C with derating above 60°C
- Input Surge Voltage: 36V for 12V input, 100V for 48V input
- Start-up Time: 100ms typical
- Isolation Resistance: ≥10^6 ohms
- Operating Temperature: -40°C to 85°C
- Relative Humidity: 5% to 95% (non-condensing)
- Protection: Overcurrent, short circuit, overvoltage, external remote on/off
- Size: 24.5 x 57.6 x 125mm
- Weight: 182 grams
- Certifications: CE Mark, MIL-STD-810D shock & vibration compliance, EMC EN55022 Level B
Buy the TDK Series DPX 40W: DPX4024T0512
Enhance your power management system with the TDK Series DPX4024T0512 DIN rail DC/DC converter. Offering three outputs, 1.6kV isolation, and high efficiency, it ensures reliable operation in industrial, military, and aerospace environments. Its compact size, internal protections, and wide temperature range make it perfect for demanding applications. Easy to install and maintain, this converter guarantees stable voltage regulation, safety, and durability. Purchase online today to secure a proven solution that meets your critical power needs with confidence and efficiency.
Order your TDK Series DPX4024T0512 today and give your projects the dependable quality they deserve, ensuring robust power delivery for demanding industrial and aerospace applications.
Frequently Asked Questions
Where can I buy TDK-LAMBDA DPX4024T0512?
You can click on the BUY or RFQ button to purchase DPX4024T0512 from an authorized TDK-LAMBDA distributor.
How do I troubleshoot issues or seek technical support for part DPX4024T0512?
You can download the DPX4024T0512 datasheet or visit the TDK-LAMBDA website for support.
Who is the manufacturer of DPX4024T0512?
TDK-LAMBDA
