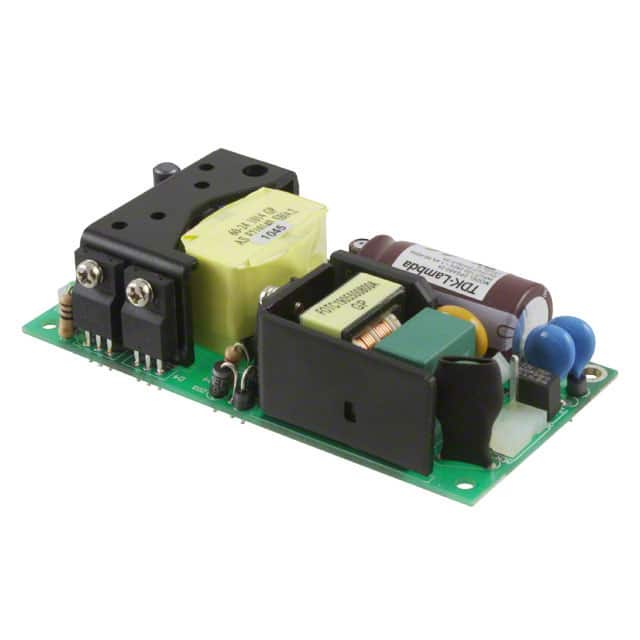

TDK-LAMBDA ZPSA6015 Power Supply
The ZPSA60-15 is a compact, open-frame AC/DC power supply offering reliable power conversion with a 60W output, high efficiency of up to 86%, and wide input voltage range of 90-264VAC. Its dimensions are 4.00 x 2.00 x 1.07 inches, suitable for industrial and broadcast applications. The unit operates from 0°C to 70°C, featuring safety certifications, low ripple and noise, and comprehensive protection including short circuit and overvoltage safeguards. This power supply ensures stable performance in various demanding environments with proven UL and CE certifications.
TDK-LAMBDA ZPSA6015 Power Supply Specifications:
- Input Voltage Range: 90-264VAC (47-63Hz), 120-370VDC*
- Output Power: 60W
- Dimensions: 4.00 inches (L) x 2.00 inches (W) x 1.07 inches (H)
- Efficiency: Up to 86%
- Temperature Range: 0°C to 70°C operating, derates linearly beyond
- Leakage Current: <0.5mA (at 264VAC)
- Line Regulation: ±1%
- Load Regulation: ±1.5%
- Ripple & Noise: 50mV peak-to-peak
- Short Circuit Protection: Continuous hiccup mode
- Overvoltage Protection: Yes
- Hold-up Time: 8ms at 115VAC
- Safety Certifications: UL, CE, IEC/UL, EN62368-1, FCC Class B
- Isolation Voltage: Input-to-Ground 1.5kVAC, Input-to-Output 3kVAC, Output-to-Ground 500VAC
- Vibration: 10-55Hz, sweep 1 min X, Y, Z
- Shock: 50g, 11ms
- Humidity: 10-95% RH (non-condensing)
- Cooling: Convection
- Weight: 130g
Buy the Lambda Series ZPSA60-15 AC-DC Power Supply: 60W Reliable Industrial Power
Enhance your industrial setup with the Lambda Series ZPSA60-15 power supply, offering 60W output, wide voltage input, high efficiency up to 86%, and safety certifications. Its compact, low-profile design and comprehensive protections ensure reliable performance in demanding conditions. Perfect for broadcast, industrial testing, and automation systems, this power supply guarantees stability and durability. Purchase online today to benefit from quick delivery, quality assurance, and technical support, ensuring seamless integration into your projects.
Get Lambda ZPSA60-15 today—built for precision and long-lasting durability in industrial environments.
