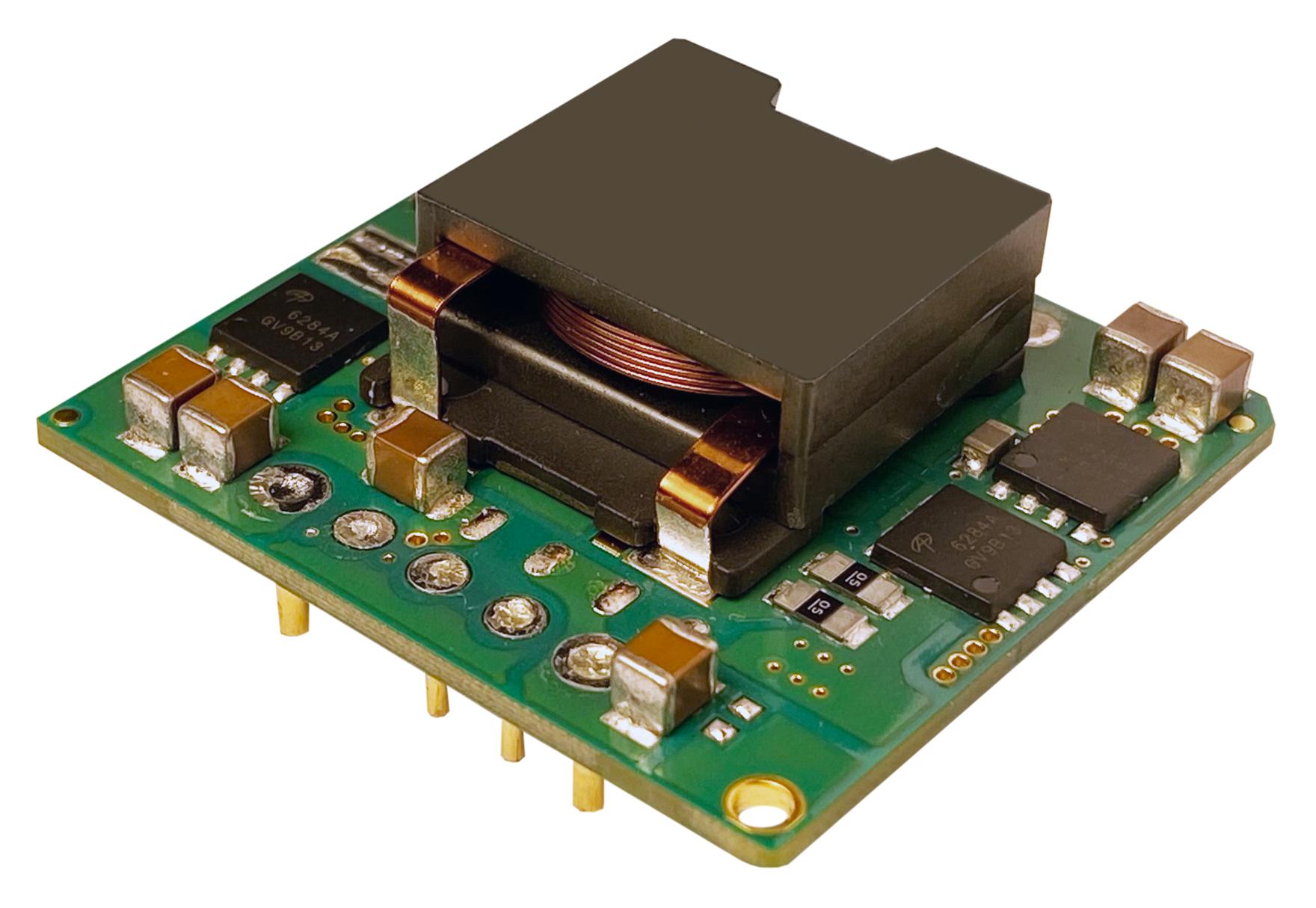

TDK-LAMBDA I7C4W008A120V001R DC-DC Buck-Boost Converter
The i7C series provides high-efficiency, non-isolated buck-boost DC-DC converters capable of delivering up to 300 W of power. Designed for wide input ranges of 9 to 53V or 9 to 36V, these modules support multiple output voltages with adjustable ranges, ensuring flexibility for diverse applications. Available in various mechanical configurations including open frame, baseplate, and heatsink options for optimal cooling. Features include high efficiency up to 97%, remote sensing, Power Good signals, and synchronization. They are ideal for industrial, broadcast, and systems requiring reliable, compact power solutions.
TDK-LAMBDA I7C4W008A120V001R DC-DC Buck-Boost Converter Specifications:
- Input Voltage Range: 9-53V or 9-36V
- Output Power: 300W
- Output Voltage Adjustment: Wide (5-28V, 8-24V, or 9.6-48V)
- Efficiency: Up to 97%
- Switching Frequency: 250 kHz
- Input Current Max: 5A - 30A
- Ripple & Noise: 180-200 mV
- Protection: Overcurrent, Overtemperature
- Connectors: Brass or copper with gold over nickel plating
- Dimensions: 34 x 36.8 x 12.2 mm (Open frame), 34 x 36.8 x 13.0 mm (Baseplate), 34 x 36.8 x 24.9 mm (Heatsink)
- Weight: 25g (Open frame), 50g (Baseplate), 70g (Heatsink)
- Environmental: Operating -40°C to 125°C, Storage -55°C to 125°C
- Certifications: IEC, UL, CSA, EN62368-1, 60950-1
Buy the Buy TDK-Lambda i7C Series Part Number I7C4W008A120V001R Online
Purchase the TDK-Lambda i7C4W008A120V001R online now and experience reliable, high-efficiency power conversion up to 300W with wide input and adjustable output. This converter features multiple mechanical configurations for optimal cooling, remote sensing, Power Good signals, and synchronization options. Perfect for industrial, broadcast, and system applications, it ensures long-lasting durability and minimal external components. Buy online today for quick delivery of this robust power module, ideal for space-constrained environments requiring stable, versatile power solutions.
Get TDK-Lambda i7C4W008A120V001R today—powerful, compact, and highly efficient power conversion for demanding industrial systems.
Frequently Asked Questions
Where can I buy TDK-LAMBDA I7C4W008A120V001R?
You can click on the BUY or RFQ button to purchase I7C4W008A120V001R from an authorized TDK-LAMBDA distributor.
How do I troubleshoot issues or seek technical support for part I7C4W008A120V001R?
You can download the I7C4W008A120V001R datasheet or visit the TDK-LAMBDA website for support.
Who is the manufacturer of I7C4W008A120V001R?
TDK-LAMBDA
