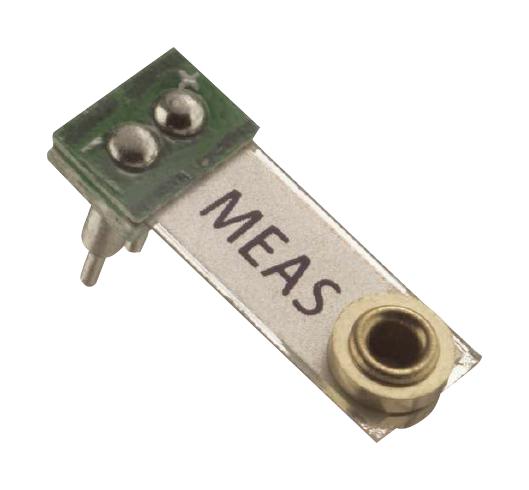

TE CONNECTIVITY 10059401 Vibration Sensor
The TE Connectivity MiniSense 100 is a compact and cost-effective cantilever-type vibration sensor ideal for applications requiring high sensitivity at low frequencies. Its robust PVDF sensing element withstands high shock overload, while the shielded construction minimizes RFI/EMI interference. The sensor's design allows for horizontal or vertical mounting and is suitable for detecting continuous vibration or impacts in various industrial settings, including washing machine load imbalance detection, vehicle motion sensing, and tamper detection.
TE CONNECTIVITY 10059401 Vibration Sensor Specifications:
- High Voltage Sensitivity: 1 V/g
- Over Voltage Sensitivity: 5 V/g
- Upper Limiting Frequency: 42 Hz
- Linearity: +/-1%
- Capacitance: 244 pF
- Dissipation Factor: 0.018
- Inertial Mass: 0.3 gram
- Storage Temperature: -40 to +80 deg C
- Operating Temperature: -20 to +60 deg C
- Voltage Sensitivity (open-circuit, baseline): 1.1 V/g
- Charge Sensitivity (baseline): 260 pC/g
- Resonance Frequency: 75 Hz
- Voltage Sensitivity (open-circuit, at resonance): 6 V/g
Buy the 1005940-1 TE CONNECTIVITY Vibration Sensor | myMectronic
Purchase the TE CONNECTIVITY 1005940-1 MiniSense 100 Vibration Sensor securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 10059401?
You can click on the BUY or RFQ button to purchase 10059401 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 10059401?
You can download the 10059401 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 10059401?
TE CONNECTIVITY
