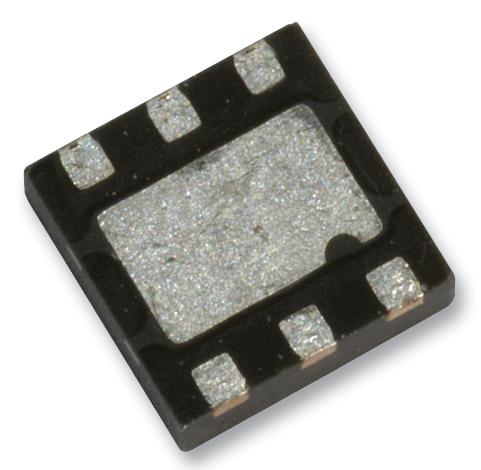

TE CONNECTIVITY 1014204810 Humidity and Temperature Sensor
The HTU31D is a compact, highly accurate digital humidity and temperature sensor suitable for energy-efficient applications in home appliances, medical devices, and environmental monitoring. It features a small 6-pin DFN package, fast response times, and low power consumption down to 3.78 μW. Calibrated and temperature compensated, the sensor performs reliably across a wide operating range of -40°C to 125°C and 0% to 100% RH. It supports automatic assembly, reflow soldering, and individual marking for traceability, making it ideal for industrial integrations requiring precision and robustness.
TE CONNECTIVITY 1014204810 Humidity and Temperature Sensor Specifications:
- Operating Humidity Range: 0 to 100 %RH
- Accuracy: ±2 %RH at 25°C
- Resolution: 0.01 %RH
- Response Time: 5 seconds
- Recovery Time after condensation: 10 seconds
- Long-term drift: 0.5 %RH/year
- Operating Temperature Range: -40°C to 125°C
- Temperature Accuracy: ±0.2°C
- Temperature Resolution: 0.016°C
- Power Consumption: Typical 3.78 μW
- Supply Voltage Range: 3V to 5.5V
- Package: 6-pin DFN
- Designed for automatic assembly and reflow soldering
- Built-in heater with ON/OFF control
- Qualified to AEC Q100 grade 1
- RoHS and REACH compliant
- Laser-marked for traceability
- Maximum ESD immunity: 42 kV (Human Body Model)
Buy the TE Series HTU31D Humidity and Temperature Sensor: 10142048-10
Purchase the TE Series HTU31D humidity and temperature sensor online to enhance your environmental sensing applications. This high-accuracy, compact sensor offers fast response times, low power consumption, and robust construction suitable for industrial, medical, and environmental monitoring. Its easy integration with automatic assembly and reflow soldering ensures efficient manufacturing. Certified for quality, RoHS, and REACH compliance, this sensor provides reliable performance across variable temperatures and humidity conditions, with traceability options for quality assurance. Get your HTU31D today to upgrade your sensing solutions!
Order your TE Series HTU31D humidity and temperature sensor today and ensure your projects benefit from reliable, precise environmental monitoring.
