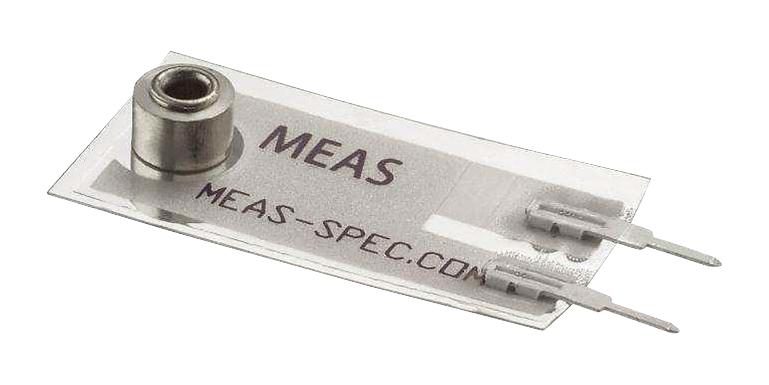

TE CONNECTIVITY 1102691100 Piezo Vibration Sensor
The TE Connectivity LDT0-028K is a versatile piezoelectric vibration sensor designed for a wide range of applications. It comprises a 28 μm thick piezoelectric PVDF polymer film laminated to a 0.125 mm polyester substrate, equipped with crimped contacts. This flexible component generates high voltages when displaced, acting as a switch or accelerometer depending on the application. Its sensitivity can be adjusted by adding mass or altering the free length, making it suitable for vibration sensing in washing machines, low-power wake-up switches, car alarms, and security systems. The LDTM-028K variant offers enhanced low-frequency sensitivity through a cantilever beam design. Experiment data demonstrates its functionality as a vibration sensor, flexible switch, and frequency response component.
TE CONNECTIVITY 1102691100 Piezo Vibration Sensor Specifications:
- Operating Temperature: 0ºC to 85ºC
- Storage Temperature: -40ºC to 85 ºC
- Higher Temperature Version: Up to 125 ºC (Custom Basis)
- Material: PVDF Polymer Film, Polyester Substrate
- Sensitivity at Resonance: 1.4 V/g (without mass)
- Resonant Frequency: 180 Hz (without mass)
- Voltage Generation (90° bend): > 70 V
- Electrical Frequency Response (480 pF source capacitance): 330 Hz (1 Megohm load resistance)
- Piezo Film Thickness: 28 μm
- Polyester Substrate Thickness: 0.125 mm
Buy the 11026911-00 TE CONNECTIVITY Piezo Vibration Sensor | myMectronic
Purchase the TE Connectivity LDT0-028K vibration sensor securely and reliably through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 1102691100?
You can click on the BUY or RFQ button to purchase 1102691100 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 1102691100?
You can download the 1102691100 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 1102691100?
TE CONNECTIVITY
