TE CONNECTIVITY 122674405 Connector
TE Connectivity’s AMPMODU Small Centerline Interconnection Systems are fine pitch 1.0 mm connectors that save 85% space on PCB compared to standard 2.54 mm pitch products. Featuring dual-beam contacts, they ensure reliable electrical connections even under shock and vibration. Designed for automation, they support surface mounting, reflow processes, and offer multiple plating options like gold. Ideal for industrial controls, automation devices, robotics, and telecom equipment, these connectors provide flexible assembly, high durability, and excellent corrosion resistance with RoHS and REACH compliance.
TE CONNECTIVITY 122674405 Connector Specifications:
- Centerline: 1.0 mm [0.0394”]
- Housing Material: high-temperature thermoplastic (LCP)
- Mounting Style: surface mount
- Header/Receptacle Material: copper alloy
- Plating Options: 30” [0.76 um] gold, gold flash (5u” gold)
- Receptacle Entry: dual entry, dual beam design
- Operating Temperature Range: -55°C to +125°C
- Soldering: re-flow capable up to 260°C
- Electrical Rating: UL recognized at 1.0A, CSA at 0.8A
- Voltage Rating: 30VAC, dielectric withstanding voltage 300VAC
- Packaging: tubes with pick & place caps
- Connector Size: double row, 5-100 positions per row
- Mechanical: vibration resistant (no electrical discontinuity >1μs)
- RoHS and REACH compliant

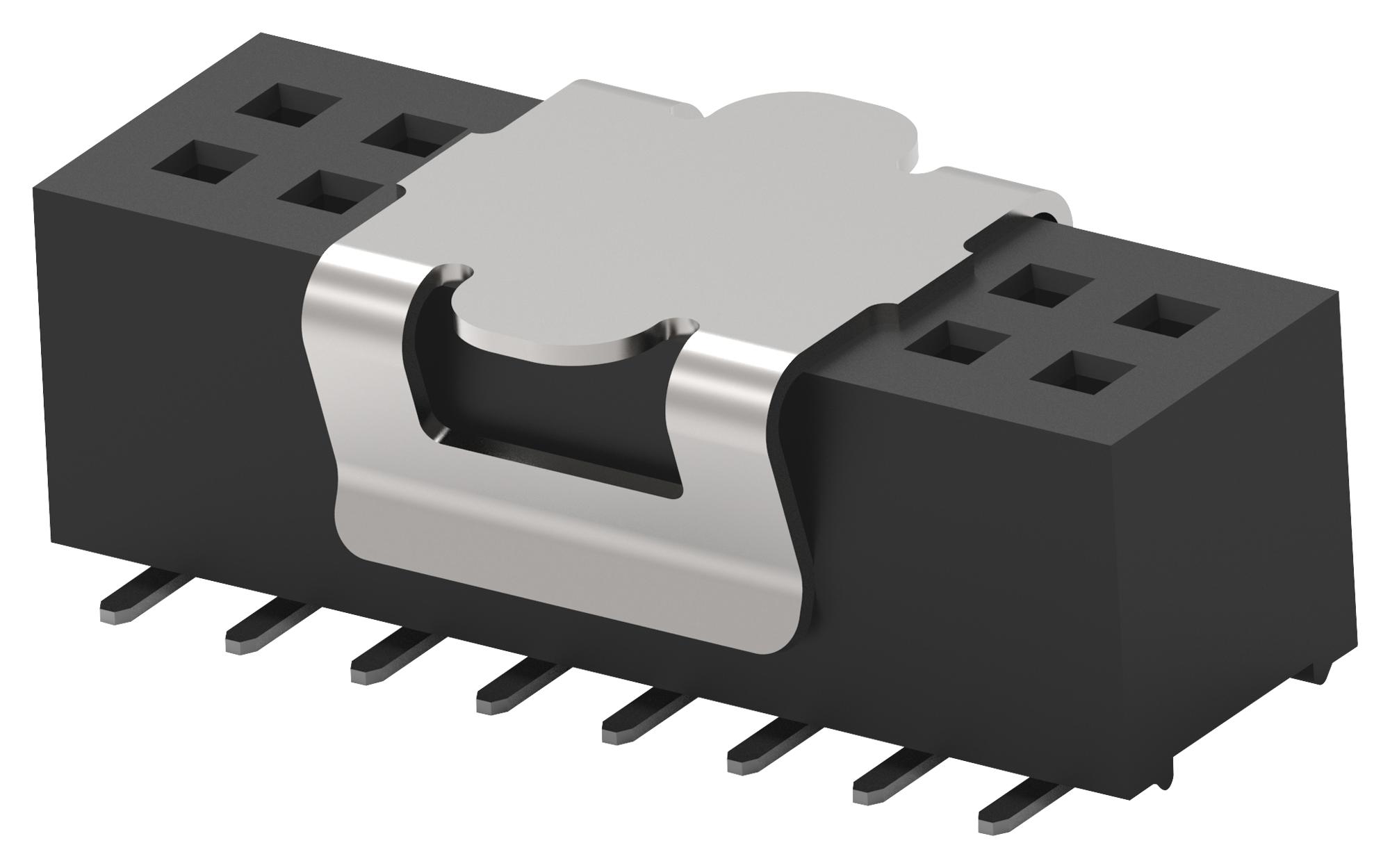

Buy the Buy TE Connectivity AMPMODU Small Centerline Part Number 122674405 Online
Order TE Connectivity AMPMODU Small Centerline Connector 122674405 online today for compact, reliable, and high-performance interconnection solutions. These connectors are designed for automated assembly and feature dual-beam contacts, gold plating, and reflow-capable materials, making them ideal for industrial controls, robotics, and telecom equipment. With space-saving 1.0 mm pitch and corrosion resistance, they ensure durable, high-quality connections that meet RoHS and REACH standards. Purchase now for fast delivery and seamless integration into your projects.
Get TE Connectivity 122674405 today—optimized for space and durable connections in automated manufacturing environments.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 122674405?
You can click on the BUY or RFQ button to purchase 122674405 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 122674405?
You can download the 122674405 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 122674405?
TE CONNECTIVITY
