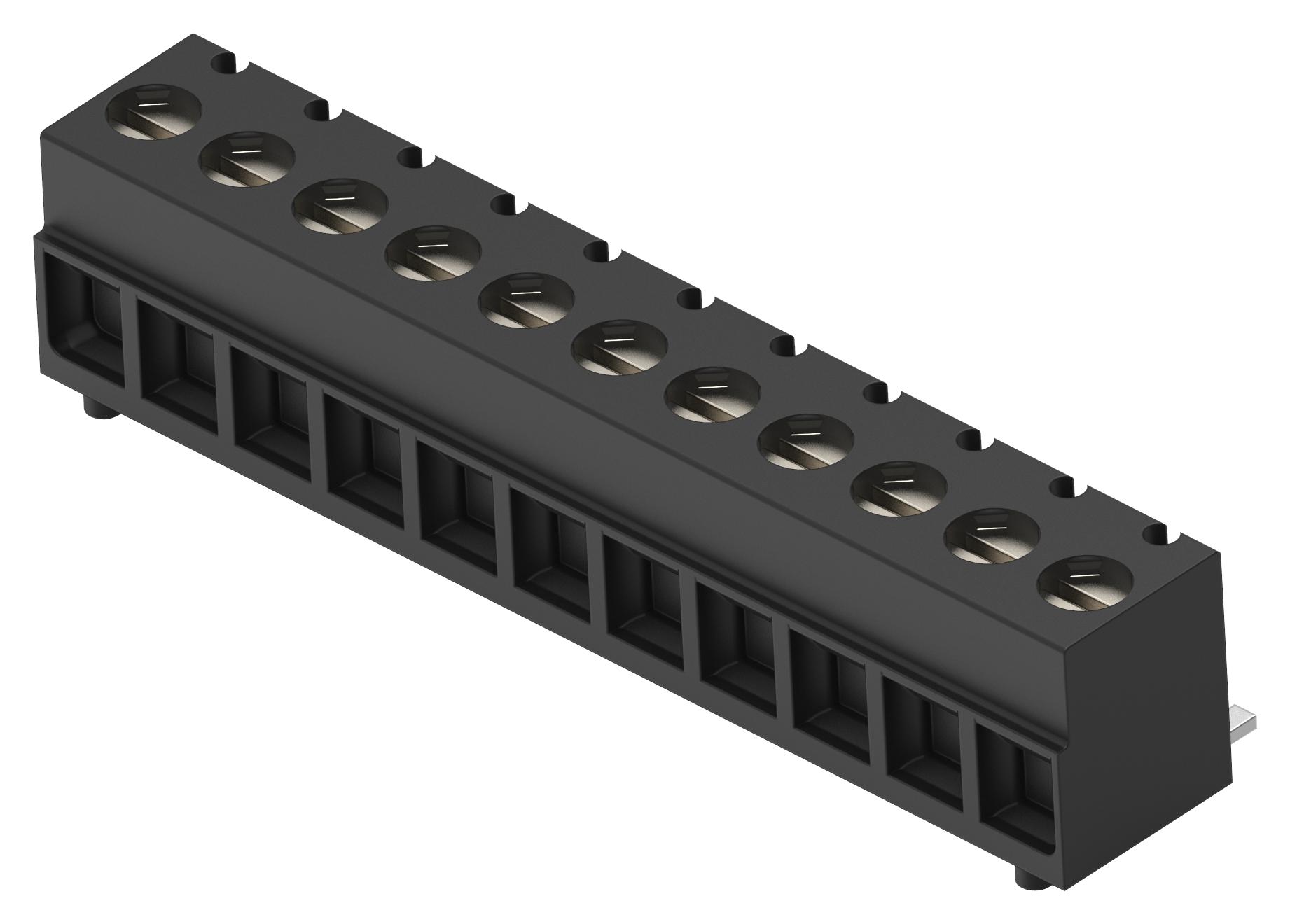

TE CONNECTIVITY 123839451 11 Position Wire-to-Board Header
The TE Connectivity 1-2383945-1 is a PCB terminal block header specifically engineered for robust wire-to-board connections in a variety of industrial applications. This header provides 11 positions with a 3.81mm centerline, facilitating efficient and organized circuit board layouts. Its side wire entry angle simplifies wire termination, while the black high-temperature polyamide housing ensures durability and reliable performance. Rated for 12A at 300VAC and compliant with RoHS directives, this terminal block is a dependable solution for power and signal transmission in electronic devices and equipment.
TE CONNECTIVITY 123839451 11 Position Wire-to-Board Header Specifications:
- Wire Protection: With
- Block Type: PCB Mount
- Terminal Block Connector Type: Header
- Connector System: Wire-to-Board
- Connector & Contact Terminates To: Printed Circuit Board
- Threaded Flange: Without
- Stacked Levels: Level 1
- Stacking Configuration: Side Stackable
- Number of Positions: 11
- Number of Rows: 1
- Wire Entry Angle: Side
- Current Rating (Max): 12 A
- Voltage Rating: 300 VAC
- Interlock: Without
- Color: Black
- Contact Mating Area Plating Material: Tin
- Contact Mount: Surface Mount
- Contact Base Material: Copper Alloy
- Contact Current Rating (Max): 12 A
- Screwless Terminal Block: No
- Mounting Angle: Vertical
- Screw Size: M2
- Screw Plating Material: Tin
- Screw Material: Copper Alloy
- Screw Flange: Without
- Connector Mounting Type: Board Mount
- Housing Color: Black
- Housing Material: High Temperature Polyamide
- Centerline (Pitch): 3.81 mm[.15 in]
- Wire Size: .08 – 1.31 mm²
- Operating Temperature Range: -40 – 105 °C[-40 – 221 °F]
- Circuit Application: Power & Signal
- Packaging Method: Tape & Reel
- Packaging Quantity: 300
Buy the 1-2383945-1 TE CONNECTIVITY 11 Position Wire-to-Board Header | myMectronic
Securely purchase the TE Connectivity 1-2383945-1 PCB terminal block header online for reliable performance and fast delivery.
Buy Now
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 123839451?
You can click on the BUY or RFQ button to purchase 123839451 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 123839451?
You can download the 123839451 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 123839451?
TE CONNECTIVITY
