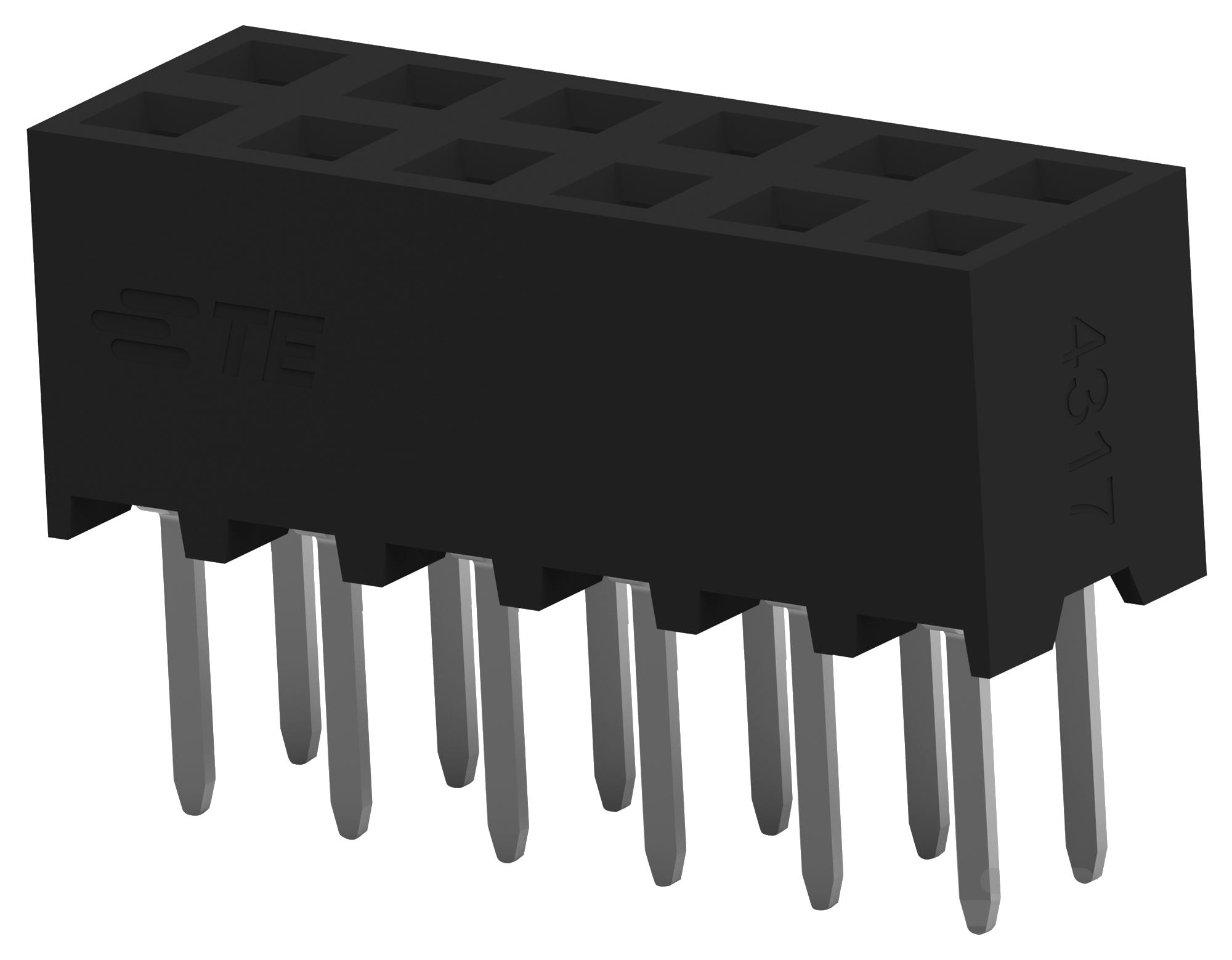

TE CONNECTIVITY 123148224 2mm Board-to-Board Receptacles
The TE Connectivity AMPMODU 2mm Board-to-Board Receptacles offer reliable connections for industrial applications such as PLCs, servo drives, and building automation. Made from high-temperature resistant liquid crystal polymer (LCP) with phosphor bronze contacts and gold plating options, these receptacles support surface-mount and through-hole assembly processes. They feature dual beam contact design for increased signal transfer reliability, occupy 38% less space than 2.54mm modules, and adhere to UL, RoHS, and REACH standards. Ideal for stacking and compact PCB design, these receptacles ensure robust electrical and mechanical performance in harsh environments.
TE CONNECTIVITY 123148224 2mm Board-to-Board Receptacles Specifications:
- Contact Material: Phosphor Bronze
- Plating: 30p" [0.76um] Gold, 15y" [0.38um] Gold, 4u" [0.1um] Gold
- Operating Temperature: -40°C to 125°C
- Current Rating: 2A (max.)
- Dielectric Withstanding Voltage: 650VAC
- Operating Voltage: 125VDC
- Housing Material: High temperature plastic (LCP), UL 94V0, Black
- Reflow Solder Capability: to 260°C
- Certifications: UL, RoHS, REACH, VDE Pending
- Contact Type: Dual cantilever beam
- Centerline: 2mm [0.079"]
- Mounting: Surface-mount, through-hole
- Packaging: Tube, tape and reel
Buy the TE Series AMPMODU 2mm Board-to-Board Receptacles: 123148224
Purchase TE Connectivity AMPMODU 2mm Board-to-Board Receptacles online now to ensure high-reliability PCB connections. These compact, dual-beam contact connectors support surface-mount and through-hole assembly, ideal for PLCs, servo drives, and automation systems. Made from high-temp resistant LCP plastic with phosphor bronze contacts, they offer excellent electrical stability with a 2A current rating and dielectric withstand of 650VAC. Available in various packaging options, these receptacles adhere to UL and RoHS standards, ensuring safety and environmental compliance in demanding industrial applications.
Buy TE Connectivity AMPMODU 2mm Receptacle now and experience robust, space-saving connections ideal for compact industrial control systems.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 123148224?
You can click on the BUY or RFQ button to purchase 123148224 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 123148224?
You can download the 123148224 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 123148224?
TE CONNECTIVITY
