TE CONNECTIVITY 14620426 Signal Relay

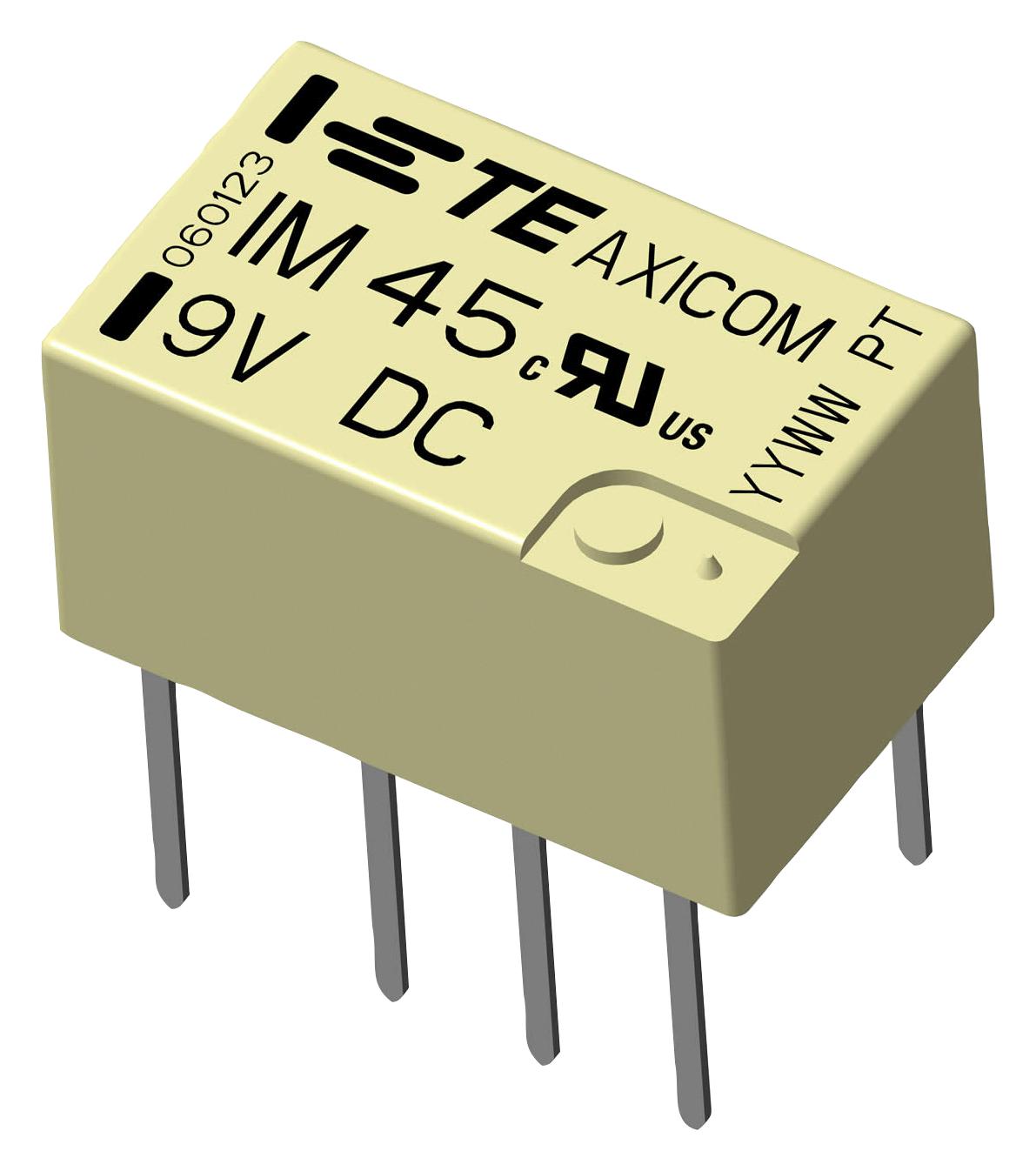

The IM - C Relay from AXICOM is a high-performance, compact signal relay suitable for telecommunication, control, and industrial applications. Featuring a slim design of 10x6mm and a low profile of 5.65mm, it provides reliable switching with a maximum rated current of 4A and switching voltage up to 250VAC or 220VDC. The relay offers bistable and monostable coil options, with contact ratings of up to 0.24A at 220VDC, and rugged mechanical shock resistance. Suitable for optical networks, test equipment, automotive, and medical systems, it is UL approved and complies with IEC 61810-1 standards.
TE CONNECTIVITY 14620426 Signal Relay Specifications:
- Size: 10x6mm slim line, low profile 5.65mm
- Contact Configuration: 1 Form C (CO), bifurcated contacts
- Rated Current: 4A, Max Switching Voltage: 250VAC / 220VDC
- Contact Ratings: 125VAC 0.24A, 30W, 220VDC 0.24A, 60VA
- Coil Voltage Range: 1.5VDC to 24VDC, Coil resistance varies with voltage
- Mechanical Endurance: 10^8 operations, Electrical Endurance: 5x10^8 operations
- Shock Resistance: up to 300g functional, 500g survival, compliant with IEC standards
- Operating Temperature: -40°C to +85°C, UL 508 approved, IEC 61810-1 compliant
- Soldering Heat Resistance: THT 265°C/10s, SMT 260°C/10s, MSL3 Moisture Level
- Connector Terminals: THT or gull wing SMT, suitable for automated mounting
Buy the Buy AXICOM IM - C Relay Part Number 14620426 Online
Purchase the AXICOM IM - C Relay online today to enhance your telecommunication, industrial, automotive, or medical systems. With robust contact ratings of up to 4A and switching voltages up to 250VAC, this relay ensures dependable performance. Its compact size, low profile, and UL approval make it ideal for space-constrained applications. Available in both monostable and bistable coil configurations, it provides high endurance, shock resistance, and compliance with IEC standards. Get it now for reliable, efficient switching in your critical control systems.
Order your AXICOM IM - C Relay 14620426 today and ensure your telecommunication and automation projects benefit from reliable switching performance.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 14620426?
You can click on the BUY or RFQ button to purchase 14620426 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 14620426?
You can download the 14620426 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 14620426?
TE CONNECTIVITY
