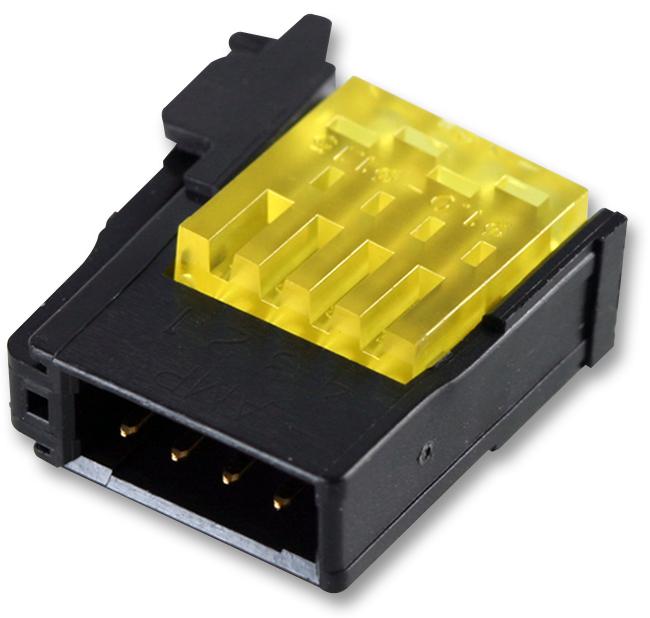

TE CONNECTIVITY 14735628 RITS Interconnection System Connector
TE Connectivity's RITS (Remote I/O Terminal System) connectors address the need for standardized connections between sensors and Programmable Logic Controllers (PLCs). Developed in Japan, these connectors eliminate the need for multiple connector types and specialized tools. RITS connectors offer significant cost savings (80% reduction compared to crimping), simplified termination processes, and improved electrical reliability. The innovative chisel press contact technology provides a larger contact area and enhanced retention force, making them ideal for Factory Automation (FA) industries. Available in various configurations, including wire-to-wire and PCB mount types, RITS connectors are a versatile solution for industrial interconnection needs.
TE CONNECTIVITY 14735628 RITS Interconnection System Connector Specifications:
- Current Rating: Max. 3 A
- Voltage Rating: 32 V DC
- Applicable Wire Range: 0.1 to 0.5 mm2 [27 to 20 AWG]
- Outside Diameter: 0.6 to 1.6 mm [.02 – .06]
- Product Specification: 108-5765
- Instruction Sheets: 411-78014, 411-78162
- Housing Material: PBT (UL 94V-0)/Polycarbonate (UL 94V-0)/LCP (SMT Products)
- Contact Material: Phosphor Bronze Platings - 0.2 ųm gold plated underplated - 1.27 ųm Ni
- Locking Configuration: New locking lever design secures wire-to-wire connection
- Termination: Generic tools or special tool
- Key Benefits: Termination by generic tools, Small 2.0 mm centerline connectors, High contact reliability, Housing colors indicate applicable wire range, UL Recognized
Buy the 1473562-8 TE CONNECTIVITY RITS Interconnection System Connector | myMectronic
Purchase TE Connectivity 1473562-8 RITS Connectors securely and efficiently for your industrial automation needs.
