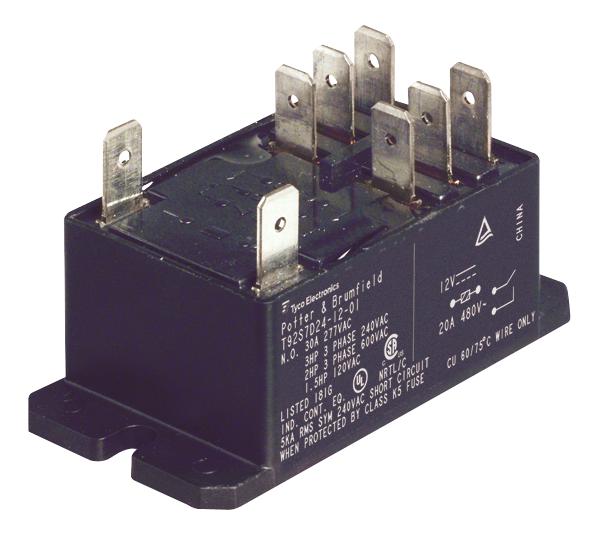

TE CONNECTIVITY 214230082 High Power PCB Relay
The T92 Series two-pole 30A PCB or panel mount relay is designed for high power switching applications, including HVAC, industrial controls, and appliances. Featuring two form A (NO) and two form C (CO) contacts, it supports switching voltages up to 600VAC and currents up to 30A. It meets UL, VDE, and CSA standards, with options for PCB or panel mounting and different contact and coil configurations. Its robust construction ensures reliable operation in challenging environments, making it suitable for controlling compressor loads and other heavy-duty loads.
TE CONNECTIVITY 214230082 High Power PCB Relay Specifications:
- Contact arrangement: 2 form A (NO), 2 form C (CO)
- Rated voltage: 277VAC
- Max. switching voltage: 600VAC
- Rated current: 30A NO; 3A NC
- Limiting continuous current: 40A NO; 34 NC
- Contact material: AgSnOInO, AgCdO
- Dielectric strength: 1500V between open contacts, 4000V coil-contact insulation, 2000V contact-contact
- Insulation resistance: 4x10^9Ω
- Enclosure: Dust protected, wash-tight options available
- Coil voltage: 5 to 110VDC, 12 to 240VAC
- Ambient temperature: -55°C to 85°C
- Dimensions: Approximately 34.54mm x 62.52mm x 30.73mm
- Vibration resistance: 7.65mm max excursions, 10-55Hz, 10g for 11ms
- Shock resistance: 100g destructively
- Compliance: RoHS, REACH, Halogen content
Buy the TE Series T92 High Power PCB Relay: 214230082
Purchase the TE Series T92 high power PCB relay online today to ensure reliable switching for industrial, HVAC, and appliance applications. With dual pole configuration, up to 30A current capacity, and voltage ratings reaching 600VAC, this relay is engineered for demanding environments. It offers UL, VDE, and CSA approvals, robust coil options, and durable construction. Buying online guarantees fast delivery, genuine quality, and technical support, making it a smart choice for engineers and maintenance professionals seeking dependable control components for heavy-duty loads.
Get TE T92 high power PCB relay today—built for heavy-duty switching, reliable operation, and long-lasting durability in industrial and HVAC applications.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 214230082?
You can click on the BUY or RFQ button to purchase 214230082 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 214230082?
You can download the 214230082 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 214230082?
TE CONNECTIVITY
