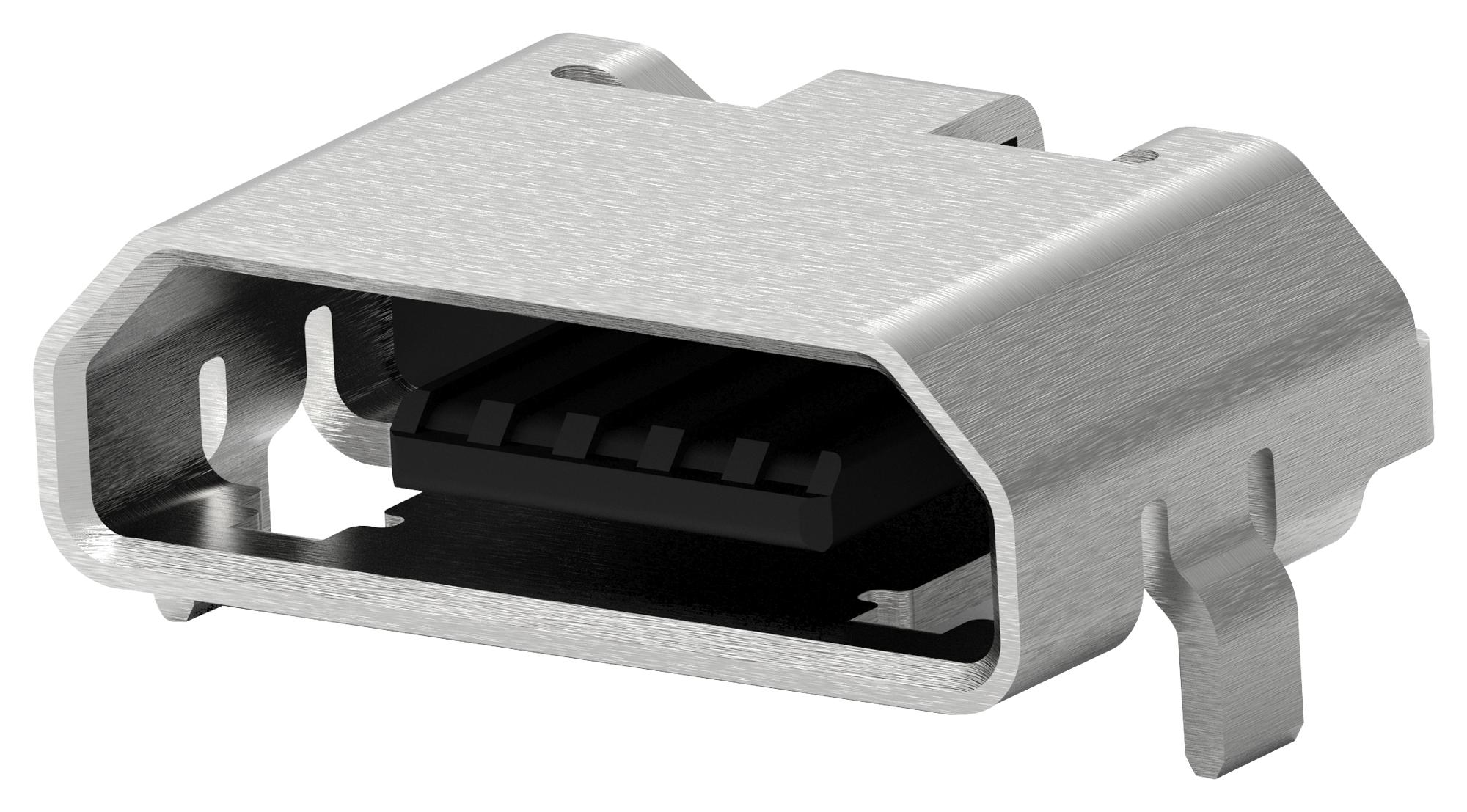

TE CONNECTIVITY 19327881 USB Micro Receptacle
This USB connector features a B type, 2.0 version, with a micro profile design. It is a surface mount receptacle with one port, designed for top mounting, and includes a reverse right angle configuration. Constructed with UL 94V-0 flammability rated thermoplastic housing, it supports reflow soldering up to 260°C, with a maximum current of 1.8A. Suitable for PCB applications, it offers robust gold-plated contacts, offset mounting, and a durable shell finish. It complies with industry standards including EU RoHS and REACH, making it ideal for high-reliability electronic devices.
TE CONNECTIVITY 19327881 USB Micro Receptacle Specifications:
- USB Version: 2.0
- Connector Type: B
- Profile: Micro
- Mounting Type: Surface Mount
- Configuration: Top, Reverse Right Angle
- Number of Ports: 1
- Shell Plating Finish: Tin over Nickel
- Contact Material: Gold-plated
- Maximum Current: 1.8A
- Housing Material: Thermoplastic, UL 94V-0
- Operating Temperature Range: -30°C to 85°C
- Soldering Temperature: Up to 260°C
- Packaging: Tape & Reel (1000 pieces)
- Compliance: EU RoHS, ELV, REACH, Halogen-Free
Buy the TE Series USB B 2.0 Micro Receptacle: 19327881
Order the TE Series USB Micro Receptacle today to enhance your device connectivity with a high-quality, surface mount, reverse right angle connector that ensures durability and reliable data transfer. Its compact design and robust gold-plated contacts make it ideal for PCB applications requiring secure connections. Enjoy quick online purchasing with confidence, knowing this connector meets all necessary industry standards including RoHS and REACH. Perfect for electronics and communication devices, it guarantees seamless installation and long-lasting performance for various applications.
Buy TE Series USB B 2.0 Micro Receptacle now and experience unmatched reliability and performance for your electronic projects.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 19327881?
You can click on the BUY or RFQ button to purchase 19327881 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 19327881?
You can download the 19327881 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 19327881?
TE CONNECTIVITY
