TE CONNECTIVITY HCH165J68RJ Braking Resistor
The Aluminium Housed Braking Resistor series by TE Connectivity offers high power overload capability with IP54 protection and PTFE insulation. Designed for braking applications, these wire wound resistors feature anodized aluminum profiles and flying leads for flexible connections. Available in various power ratings from 200W to 500W and temperature ranges up to 375°C, they endure overload pulses and are tested for load life, humidity, and ingress protection. Their compact, robust construction ensures reliable performance in demanding industrial and drive systems where efficient energy dissipation is critical.
TE CONNECTIVITY HCH165J68RJ Braking Resistor Specifications:
- Power Ratings: 200W to 500W @40°C
- Maximum Temperature: 320°C to 375°C depending on model
- Resistance Range: 680Ω to 2200Ω (others available on request)
- Overload Power Pulse Ratings: Up to 23000W at 40°C for 40s cycle
- Ingress Protection: IP54
- Insulation Resistance: >100MΩ @ 1000VDC
- Dielectric Strength: 3500VAC for 1m
- Ambient Temperature: Based on thermal ratings
- Lead Length: 300mm PTFE insulated flying leads
- Body Material: Anodized extruded aluminium profile
- Dimensions: Vary by model, length between 165mm and 335mm
- Compliance: Tested for load life, humidity, and ingress resistance
- Connection: Flying leads, suitable for high current applications

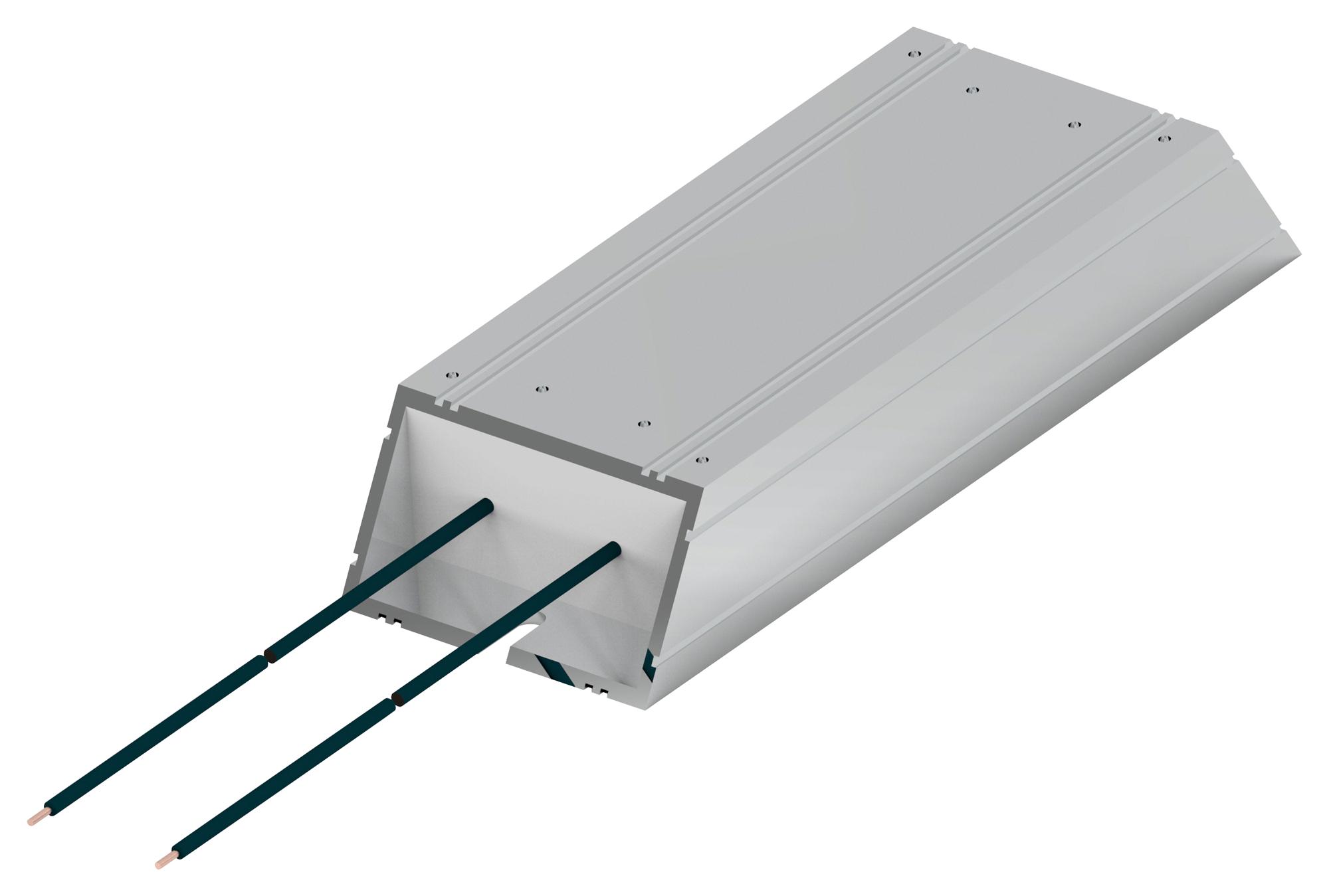

Buy the Buy TE Connectivity Aluminium Housed Braking Resistor Part Number HCH165J68RJ Online
Purchase the TE Connectivity Aluminium Housed Braking Resistor HCH165J68RJ online today to enhance your industrial drive and braking systems. Designed for high overloads and demanding thermal conditions, this resistor offers IP54 protection, PTFE insulated flying leads, and a robust aluminium body for durability. It provides precise performance with a variety of resistance ranges and pulse load capabilities up to 23000W. Reliable in load life tests, humidity resistance, and ingress protection, it ensures efficient energy dissipation and system safety. Buy now for quick delivery and optimal system performance.
Order your TE Connectivity Aluminium Housed Braking Resistor HCH165J68RJ today and ensure your drive systems operate efficiently with high overload capacity and reliable protection.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY HCH165J68RJ?
You can click on the BUY or RFQ button to purchase HCH165J68RJ from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part HCH165J68RJ?
You can download the HCH165J68RJ datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of HCH165J68RJ?
TE CONNECTIVITY
