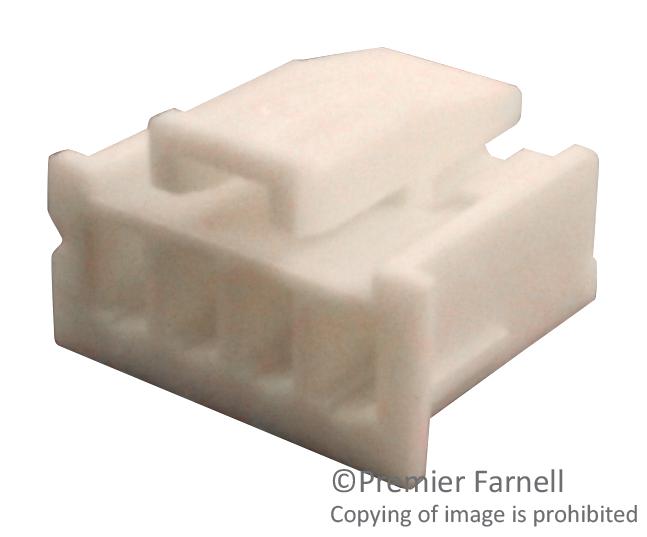

TE CONNECTIVITY 19694424 Signal Connector

The Economy Power 2.5 Series Signal Connector is designed with low insertion force contacts, TPA devices, and dual row configurations, making it suitable for wire-to-board and wire-to-wire signal connections. The compact connector features a 0.098-inch pitch and supports ratings of up to 250V AC and 4.5A. It accommodates wire sizes from 26 to 20 AWG and offers up to 40 contact positions. The connector provides reliable mechanical and electrical performance, including a true locking latch to prevent disconnection due to vibration and an optional terminal position assurance (TPA) device to ensure proper terminal seating. Each contact includes a wire barrel with serrations for secure wire retention, an insulation barrel, and a locking window. Contacts are available in strip form for use with automatic termination equipment. Additional features include a positive audible latch for easy mating and unmating, polarization tabs to prevent misalignment, asymmetrical terminals for correct loading, and anti-fretting contact lubricant. This connector is ideal for applications in industrial, HVAC, commercial, and lighting systems.

View 19694424Datasheet [pdf]

Buy the TE Connectivity Series EP 2.5 Signal Connector: 19694424

Enhance your projects with the TE Connectivity Series EP 2.5 Signal Connector. Featuring low insertion force contacts, TPA devices, and dual row configurations, it offers a compact and reliable connection for wire-to-wire and wire-to-board applications. Rated at 250V and 4.5A, compatible with 26-20 AWG wires, and supporting up to 40 contact positions, this connector ensures secure, vibration-resistant connections. The positive latch, polarization tabs, and anti-fretting lubricant make it ideal for industrial, HVAC, and lighting applications. Buy online now for dependable performance.

Order your TE Connectivity Series EP 2.5 connector today and ensure reliable, compact wire-to-wire and wire-to-board connections for industrial and HVAC systems.
