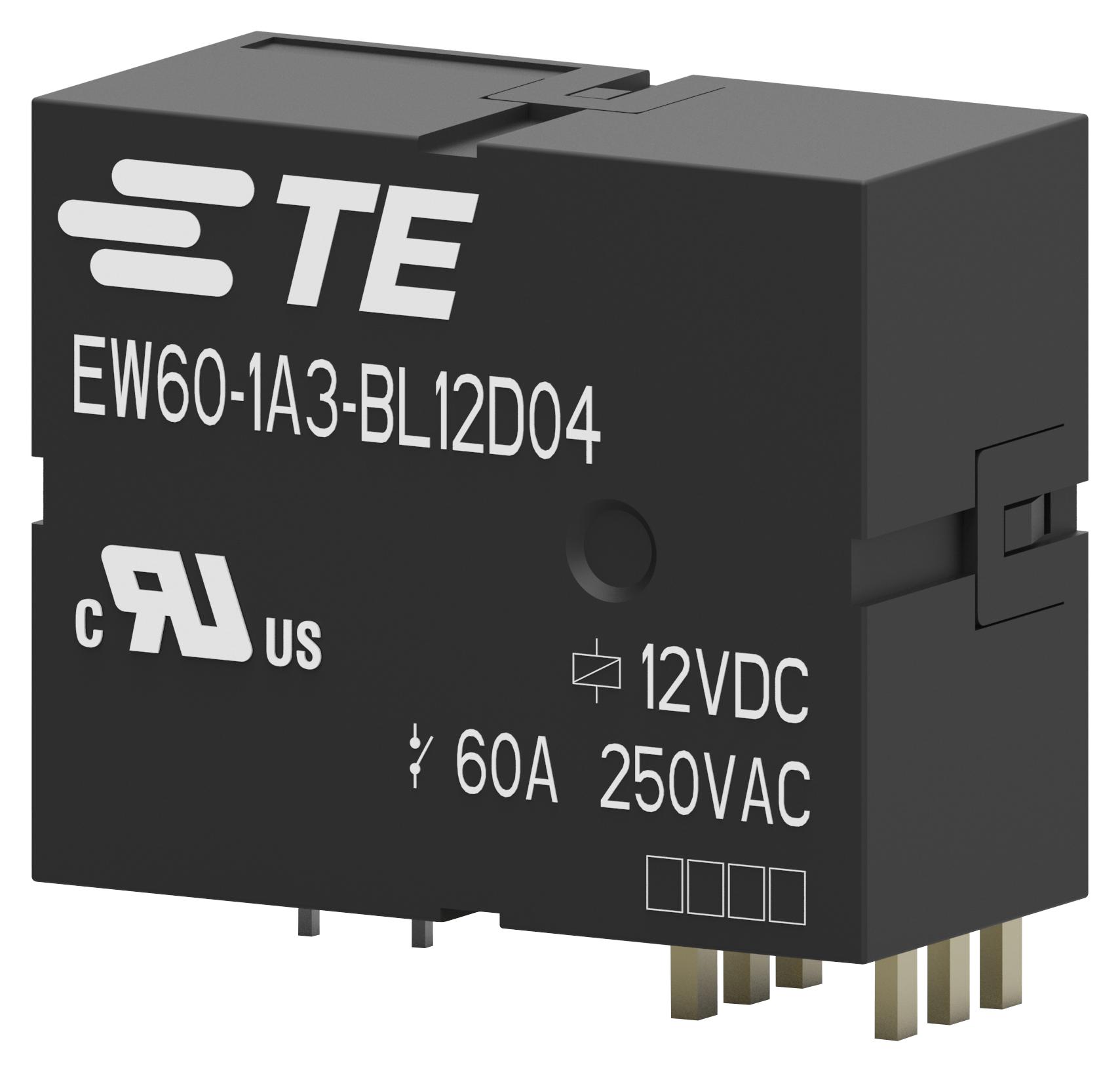

TE CONNECTIVITY 20713661 Power Latching Relay
The Power Latching Relay EW60 is a polarized bistable relay designed for reliable switching applications. It features 1 pole with a 60A contact rating, suitable for power distribution, lighting control, and circuit protection. This relay conforms to NEMA 410-2011 standards, with contact material AgSnO2, and offers high inrush current capacity of 480A. Its compact PCB-mount design includes one or two coils with various voltage options, rated at 12V or 24V, and is compliant with RoHS, REACH, and Halogen regulations. It provides robust dielectric strength and resistance to vibration and shocks, making it ideal for demanding industrial environments.
TE CONNECTIVITY 20713661 Power Latching Relay Specifications:
- Contact Rating: 60A, 277VAC resistive, 16A/20A ballast, 120VAC/277VAC general use
- Contact Material: AgSnO2
- Operation Type: Bistable, polarized, 1 or 2 coils
- Coil Voltage: 12VDC or 24VDC, low sensitivity options available
- Inrush Current: 480A
- Switching Voltage: Max. 440VAC, rated 26/9mm between contact and coil according to NEMA 410-2011
- Temperature Range: -40°C to +85°C
- Dielectric Strength: Contact to coil 4000V ins, open contact 1500V ins
- Vibration Resistance: 4.5mm double amplitude
- Shock Resistance: Functional 50g, destructive 400g
- Mechanical Endurance: 1 million operations
- Coil Power: Approx. 3W for 12V, 1.5W for 24V
- Dimensions: Suitable for PCB mounting, exact size varies per model
- Environmental Ratings: Dust proof, RoHS, REACH compliant
Buy the Buy TE Connectivity Power Latching Relay EW60 Part Number 20713661 Online
Order the TE Connectivity Power Latching Relay EW60 online today to ensure robust power switching and control. With its polarized bistable design, 60A contact rating, integrated PCB terminals, and high dielectric strength, this relay provides exceptional reliability for demanding industrial applications. Its compliance with RoHS and REACH standards guarantees safety and environmental sustainability. Available in 12V and 24V coil options, it suits various control system requirements. Purchase now to benefit from quick shipping and expert technical support.
Buy TE Connectivity EW60 power latching relay now and experience unmatched reliability and high current switching performance for industrial control needs.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 20713661?
You can click on the BUY or RFQ button to purchase 20713661 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 20713661?
You can download the 20713661 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 20713661?
TE CONNECTIVITY
