TE CONNECTIVITY SMW55R1JT Power Resistor
The SM Series SMD Moulded Power Resistor from TE Connectivity is designed for high-reliability power circuitry. Available in 2, 3, or 5 Watts, it features a low profile, flameproof coating UL94V0, and fully welded construction for durability under reflow, vapor phase, or IR manufacturing processes. These resistors offer wide value ranges, high temperature tolerance, and reliable solder joints with flexible tinned copper terminations. Suitable for demanding electronic designs, they deliver excellent environmental and electrical performance in compact package sizes.
TE CONNECTIVITY SMW55R1JT Power Resistor Specifications:
- Power Ratings: 2W, 3W, 5W at 25°C
- Maximum Voltage: 300V (SM_2), 500V (SM_3, SM_5)
- Resistance Range: 10Ω to 2MΩ, E24 grid
- Resistance Tolerance: 1% or 5%
- Temperature Coefficient: 55°C to +200°C, ±200ppm/°C or ±100ppm/°C
- Operating Temperature Range: -55°C to +200°C
- Short Time Overload: 5x rated wattage for 5 sec
- Insulation Resistance: 10,000 MΩ at 500V DC
- Load Life: 1000 hrs at 70°C, 1.5 hrs on / 0.5 hrs off, ±2%
- Humidity Load Life: 500 hrs at 40°C, 90-95% RH, ±2%
- Solderability: 95% coverage at 235°C for 2 sec
- Resistance to Soldering Heat: 270°C for 10 sec, change within 1%
- Dimensions: Length varies from 40mm to 73mm, diameters from 3.55mm to 17mm, reel quantities up to 4000
- Construction: Fully welded, flameproof UL94V0 coating
- Environmental Resistance: High temperature stability, reliable solder joints, flameproof coating

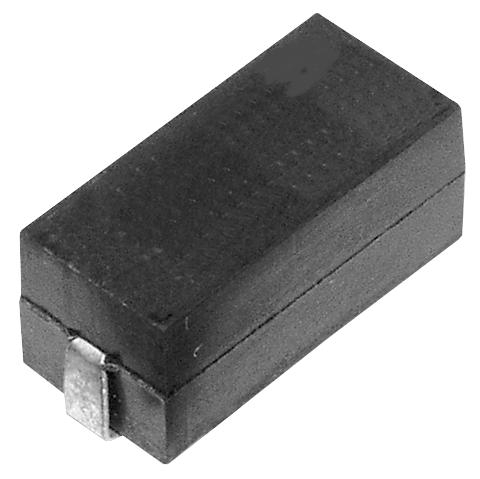

Buy the Buy TE Connectivity SMD Power Resistor Part Number SMW55R1JT Online
Purchase the TE Connectivity SM Series power resistor with 5W power rating and flameproof UL94V0 coating online today. Ideal for high-reliability power circuits, this resistor features a low profile design, fully welded construction, and flexible copper terminations for dependable solder joints. It withstands demanding reflow, vapor phase, and IR manufacturing processes without degradation. Available in wide resistance ranges from 10Ω to 2MΩ, with resistance tolerances of 1% or 5%. Ensure durability and safety in your electronic projects with this robust, environmentally sealed component.
Order your TE Connectivity SM Series 55R1JT power resistor today and enhance your circuits with reliable high-temperature performance.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY SMW55R1JT?
You can click on the BUY or RFQ button to purchase SMW55R1JT from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part SMW55R1JT?
You can download the SMW55R1JT datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of SMW55R1JT?
TE CONNECTIVITY
