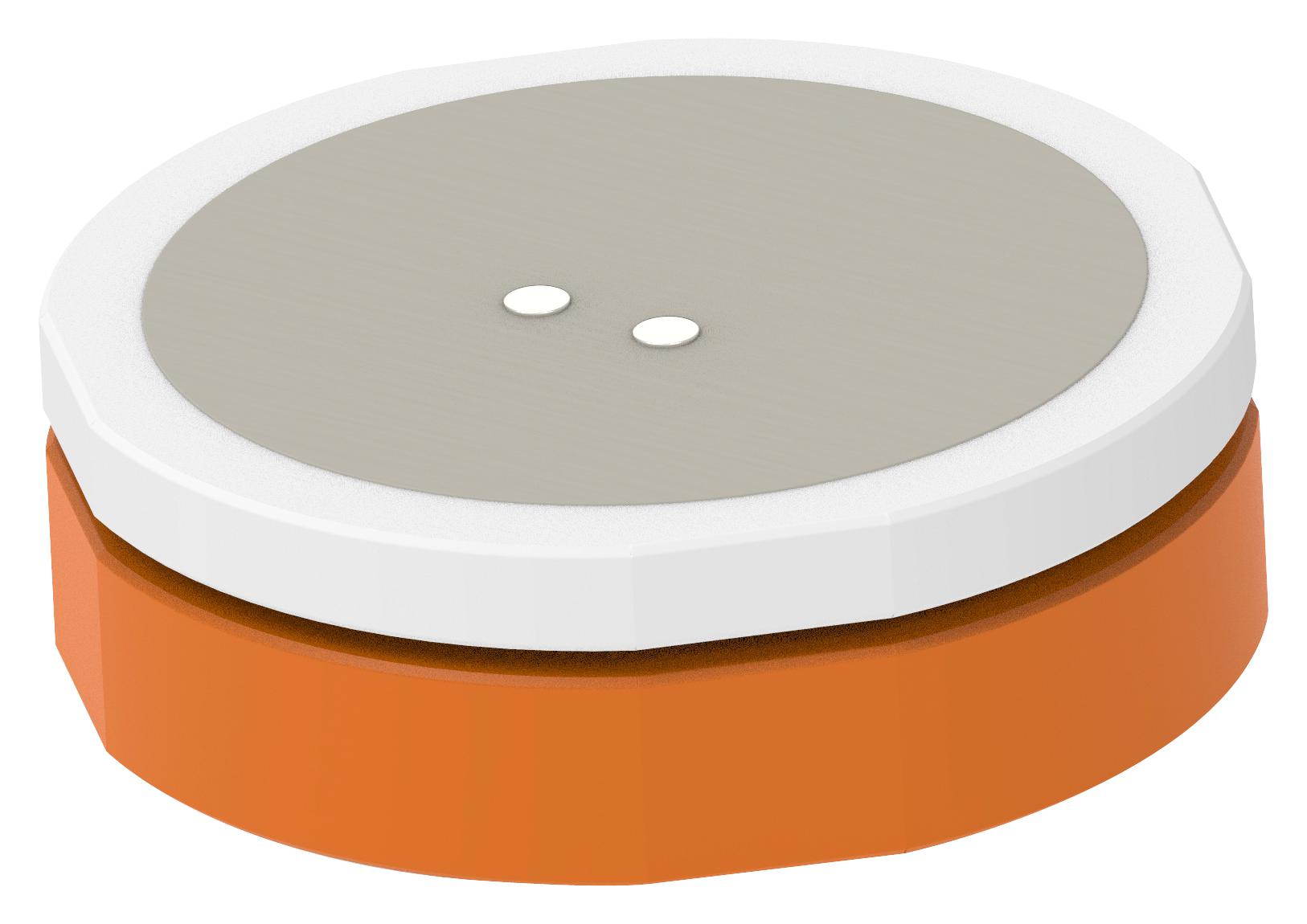

TE CONNECTIVITY 21088441 GNSS Antenna
The TE Connectivity 2108844-1 is a GNSS antenna designed for applications requiring reliable positioning and navigation. It supports L1+G1 & L2+L5+E5b+G2 bands, offering broad GNSS compatibility. The antenna's dual-port patch design and through-hole mounting provide flexibility in system integration. It is suitable for use in various applications including asset tracking, precision agriculture, and autonomous vehicles where accurate and robust GNSS signals are critical. The antenna is designed for operation in harsh environments, with an operating temperature range of -40 to +85°C.
TE CONNECTIVITY 21088441 GNSS Antenna Specifications:
- Frequency Range (MHz): 1164 - 1255 / 1559 - 1610
- VSWR: < 1.3:1 / < 1.4:1
- Peak Gain at Zenith: Typ. 5.4 dBic / Typ. 6.0 dBic
- Axial ratio at Zenith: Typ. 1.4 dB / Typ. 1.3 dB
- Average Gain: -5.4dBic / -2.6 dBic
- Isolation: -24 dB / -21dB
- Feed Point Impedance: 50 ohms
- Polarization: RHCP
- Size: 41.0 mm x 41.0 mm x 13.0 mm
- Weight: < 62.7 g
- Mounting: Adhesive Tape
- Operating Temperature: -40 to +85°C
- Storage Temperature: -40 to +85°C
Buy the 2108844-1 TE CONNECTIVITY GNSS Antenna | myMectronic
Purchase the TE CONNECTIVITY 2108844-1 GNSS Antenna securely and efficiently through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 21088441?
You can click on the BUY or RFQ button to purchase 21088441 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 21088441?
You can download the 21088441 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 21088441?
TE CONNECTIVITY
