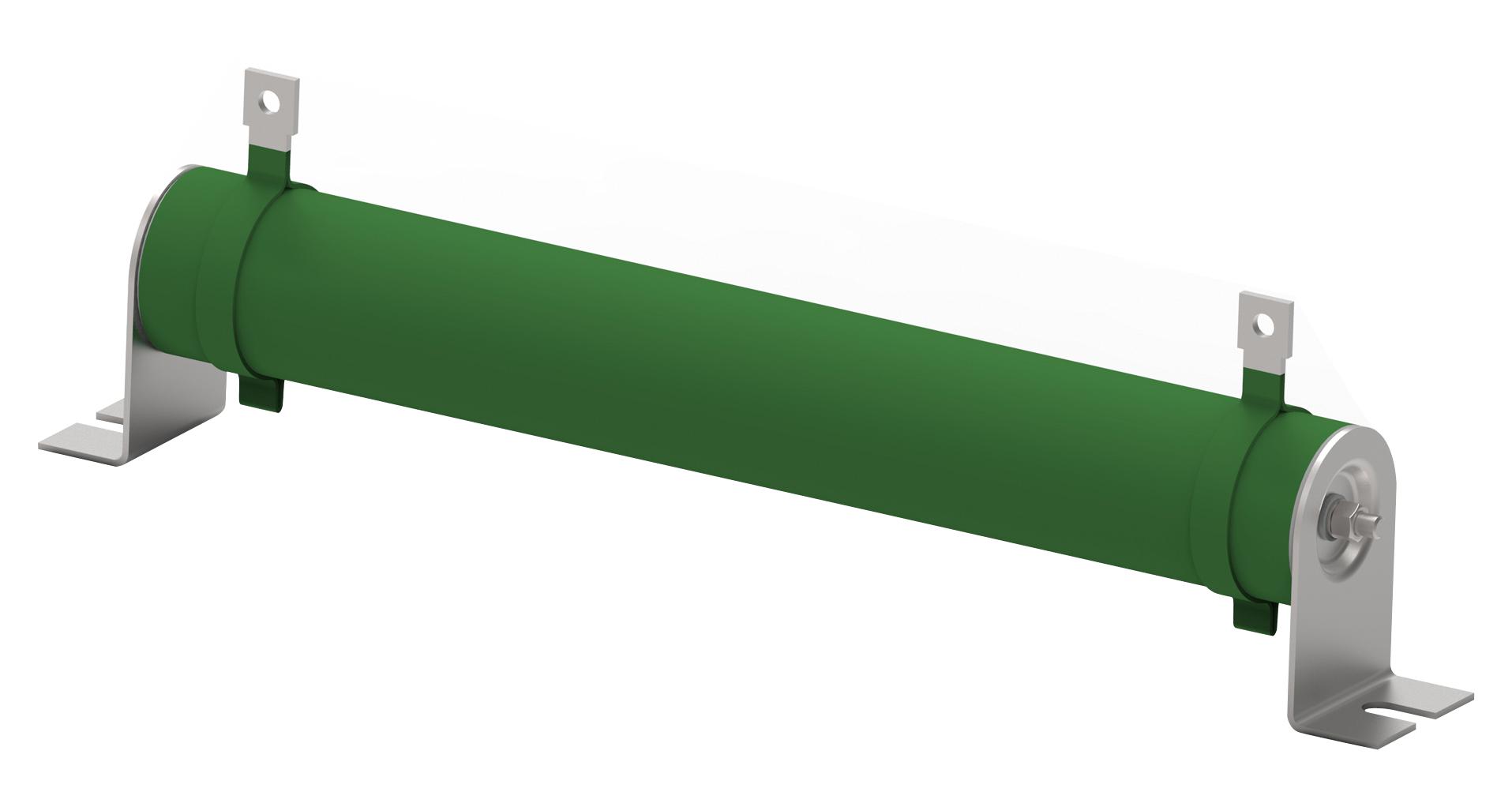

TE CONNECTIVITY TE400B2K2J High Power Wire Wound Resistor
Type TE series high power wire wound resistors are flameproof coated tubular ceramic core resistors, designed for heavy-duty machinery, electrical equipment, and motor control. They provide stability and reliability for applications like load testing, motor start/stop cycles, dynamic braking, and equipment discharge. Features include flameproof construction with UL94V coating, operation from -55°C to +155°C, ability to handle 3x rated power for 5 seconds, dielectric strength of at least 2500VAC, and insulation resistance minimum 20 MΩ at 500VDC. Suitable for demanding industrial environments with robust mounting options.
TE CONNECTIVITY TE400B2K2J High Power Wire Wound Resistor Specifications:
- Dimensions: 326 x 40 x 81 mm
- Power Rating: 400 W
- Resistance Value: 2.2KΩ
- Resistance Class: 1kΩ - 1MΩ
- Passive Component Tolerance: 5%
- Element Type: Wire Wound
- Termination: 2 Mounting Terminals
- Mount Style: Chassis Mount
- Operating Temperature Range: -55°C to +155°C
- Dielectric Strength: ≥2500VAC
- Insulation Resistance: ≥20 MΩ at 500VDC
- Flameproof Coating: UL94V
- Application: Heavy-duty machinery, load testing, motor control, dynamic braking
- Construction: Tubular ceramic core, flameproof coated
- Tolerance: 5%
- Compliance: RoHS, REACH, UL Listed
Buy the CGS Power Resistor – Reliable Wire Wound for Industrial Applications
Purchase the high power wire wound resistor online today to ensure robust performance in heavy-duty machinery, motor control, and load testing. Designed with flameproof coating, ceramic core, and reliable construction, it handles up to 400W with precise 2.2KΩ resistance and 5% tolerance. Its durability and safety features meet strict industrial standards, making it ideal for demanding environments. Order now for fast delivery and confidence in high-quality, industrial-grade resistor solutions tailored for your manufacturing and control needs.
Get CGS TE400B2K2J today—built for high power, stability, and long-lasting performance in demanding industrial environments.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY TE400B2K2J?
You can click on the BUY or RFQ button to purchase TE400B2K2J from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part TE400B2K2J?
You can download the TE400B2K2J datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of TE400B2K2J?
TE CONNECTIVITY
