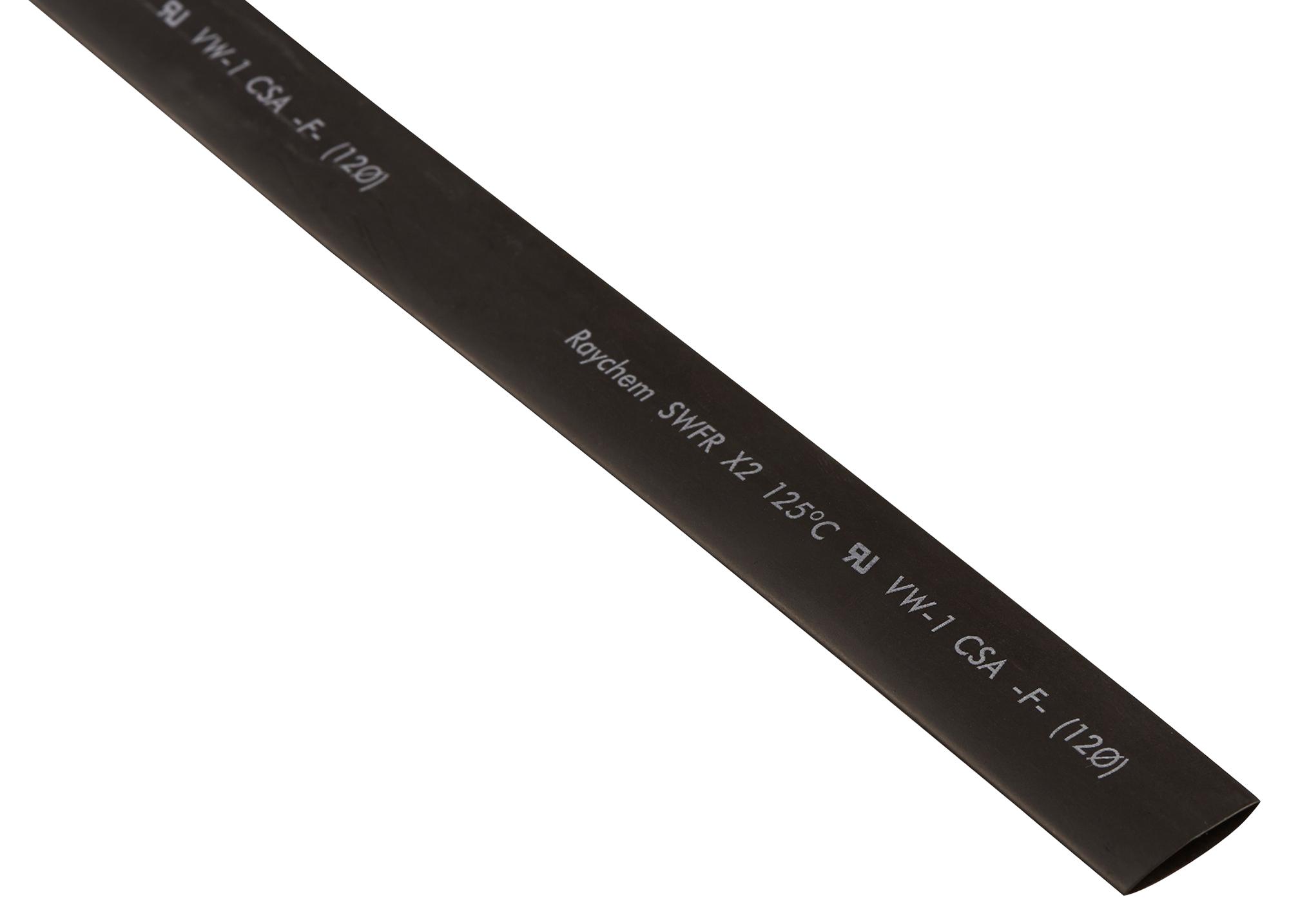

TE CONNECTIVITY X22500FSPSM Heat-Shrinkable Tubing
X2 heat-shrinkable tubing is a highly flame-retardant, environmentally friendly, crosslinked polyolefin that offers excellent flexibility and thermal stability. It is UL and CSA recognized, suitable for insulating and protecting electrical connections in commercial and industrial applications. With a minimum shrink temperature of 70°C, full recovery at 90°C, and continuous operating temperatures from -30°C to 125°C, X2 tubing bundles wires, provides impact resistance, and withstands physical abuse, making it ideal for long-term, reliable wire management and insulation solutions.
TE CONNECTIVITY X22500FSPSM Heat-Shrinkable Tubing Specifications:
- Minimum Shrink Temperature: 70°C
- Full Recovery Temperature: 90°C
- Continuous Operating Temperature: -30°C to 125°C
- Applicable Standards: UL VW-1, CSA
- Dimensions (mm): 1.0 inch diameter, Inside thickness 0.5 mm, Fully recovered diameter 15 mm; 2.0 inch diameter, Inside thickness 2.0 mm, Fully recovered diameter 40 mm
- Wall thickness varies with size and recovery restrictions
- Color: Black
- Packaging: Spools
- Marking: UL, CSA labels, standard markings
- Applications: Wire bundling, electrical insulation, physical protection, flame-retardant wiring insulation
- Material: Crosslinked polyolefin
- Temperature Ratings: Shrink temperature 70°C, operating range -30°C to 125°C
Buy the Raychem SWFR X2 – Reliable Flame-Retardant Heat-Shrinkable Tubing for Industrial Applications
Discover the high-quality Raychem SWFR X2 heat-shrinkable tubing, engineered for durability and safety in electrical wiring applications. This flame-retardant, halogen-free tubing is ideal for insulating and bundling wires in industrial environments. It features excellent thermal stability, flexibility, and physical resistance, with a temperature rating up to 125°C. Available in standard black on spools, it’s designed for easy installation and long-term reliability. Purchase online today to ensure optimal insulation, protection, and flame-retardant performance for your electrical projects.
Buy Raychem SWFR X2 now and experience unmatched reliability and high-performance insulation for your industrial wiring needs.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY X22500FSPSM?
You can click on the BUY or RFQ button to purchase X22500FSPSM from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part X22500FSPSM?
You can download the X22500FSPSM datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of X22500FSPSM?
TE CONNECTIVITY
