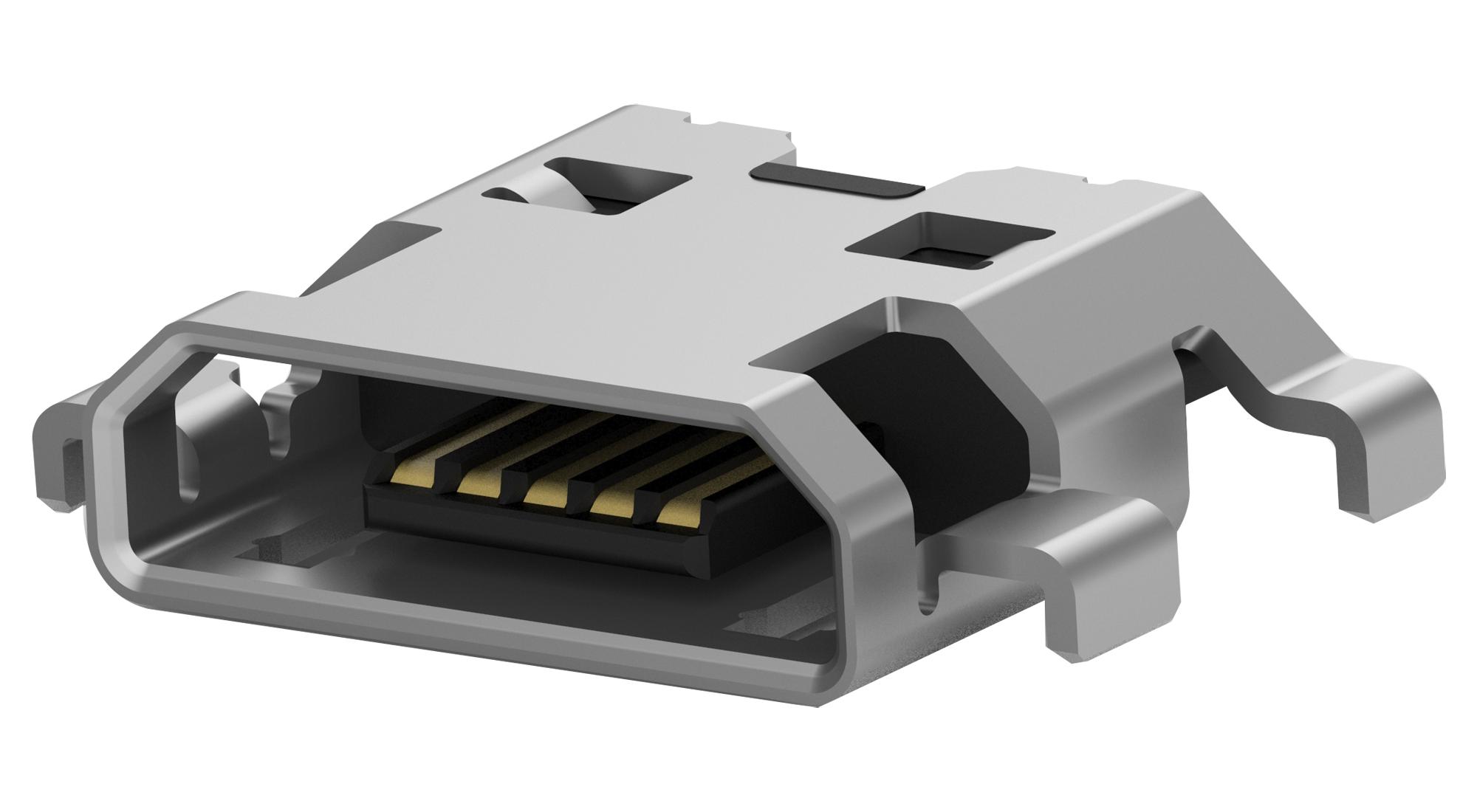

TE CONNECTIVITY 21344412 USB Micro B Connector
This Micro USB Type B surface-mount receptacle connector offers a 2.0 USB version with a micro profile design, ideal for compact electronic devices requiring reliable data transfer. Featuring a single port with offset mounting, reverse right angle orientation, and tape & reel packaging, it ensures fast, secure connections on printed circuit boards. The connector's durable construction includes tin over nickel contact plating, a matte shell finish, and compliance with industry standards such as UL 94V-0. Suitable for high-volume manufacturing, it supports up to 1.8A current, with a robust operating temperature range of -30°C to 85°C and up to 10,000 mating cycles.
TE CONNECTIVITY 21344412 USB Micro B Connector Specifications:
- USB Connectors, B, 2.0, Micro Profile, Receptacle, 1 Port, Mid Mount, Reverse Right Angle, Tape & Reel, Offset, Surface Mount
- Contact Material: Tin over Nickel
- Current Rating: 1.8A
- Connector Profile: Micro
- Mounting Type: Surface Mount
- Tail Length: 7 mm
- Operating Temperature Range: -30°C to 85°C
- Soldering Temperature: 260°C
- Mating Cycles: 10,000
- Flammability Rating: UL 94V-0
- Housing Material: Thermoplastic
- Housing Color: Black
- PCB Thickness: 0.028 - 0.039 inches
- Compliance: EU RoHS, China RoHS, EU ELV
Buy the Buy TE Connectivity USB Connector Part Number 21344412 Online
Order the TE Connectivity USB Micro B connector online today to ensure your electronic devices benefit from high-quality, durable, and reliable connectivity. This surface-mount, right angle receptacle with a single port is perfect for compact design needs, providing seamless data transfer with up to 1.8A current support. It features a tape & reel packaging for efficient mass assembly. Designed to operate from -30°C to 85°C, endure up to 10,000 mating cycles, and meet industry safety standards, making it an excellent choice for professional electronics manufacturing.
Buy TE Connectivity 21344412 USB Micro B connector now and experience robust, high-quality data transfer with reliable surface-mount design.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 21344412?
You can click on the BUY or RFQ button to purchase 21344412 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 21344412?
You can download the 21344412 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 21344412?
TE CONNECTIVITY
