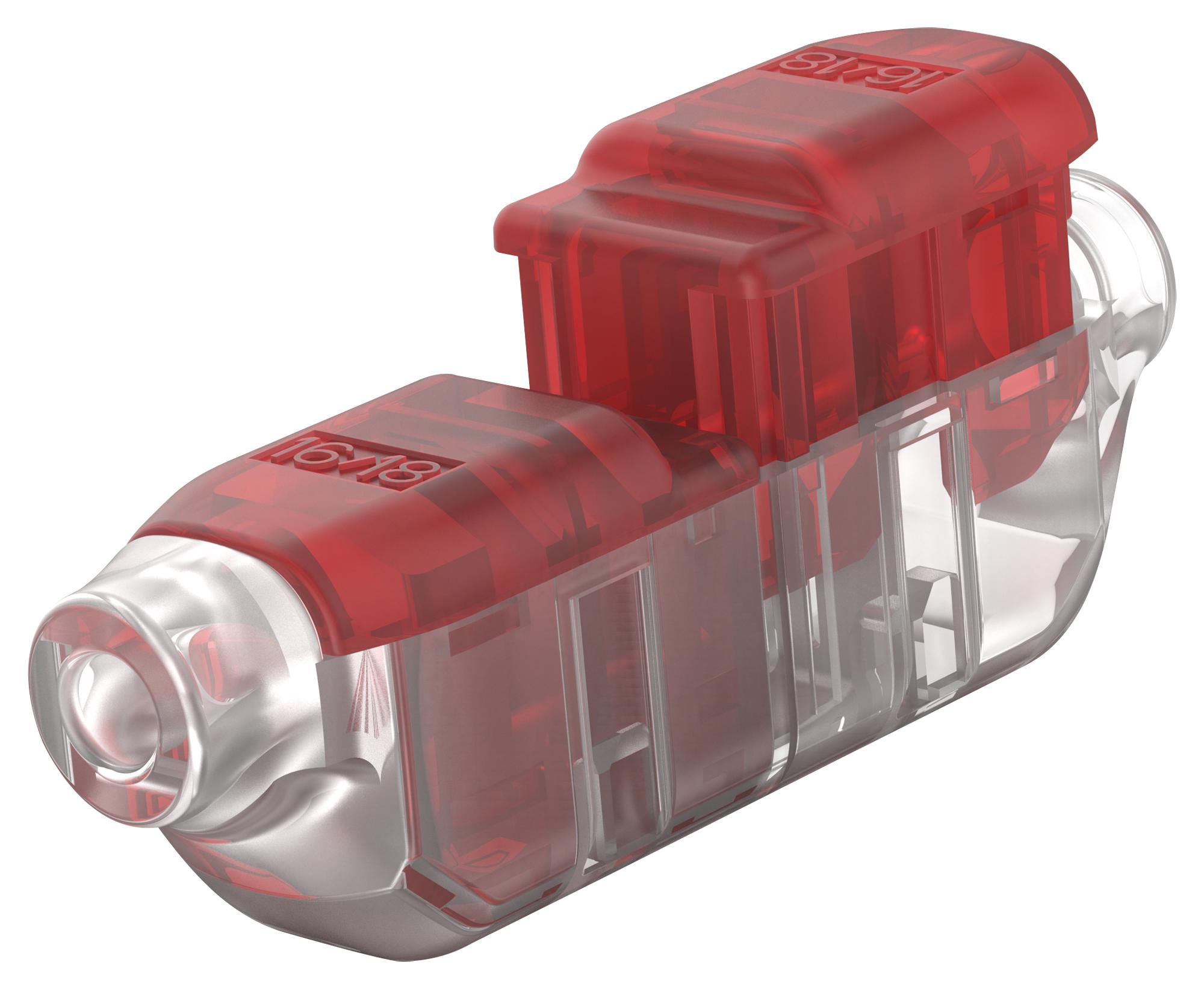

TE CONNECTIVITY 22136008 Large Wire Connector
TE Connectivity’s CoolSplice Connectors are ideal for connecting large wires (12 AWG to 18 AWG) in various applications, including outdoor lighting, roadway signs, and building facades. These connectors simplify installation with their push-button termination, allowing for both factory pre-termination and field termination. The gel-filled sealed version provides ingress protection for harsh environments, while the clear body allows for visual inspection. They are suitable for architectural, bridge and tunnel, and indoor lighting fixture applications, and are designed to save installation time and eliminate the need for insulation displacement technology (IDC).
TE CONNECTIVITY 22136008 Large Wire Connector Specifications:
- Wire Size: 16/18 AWG (1.5/0.75 mm[2])
- Current Rating: 10A Max at 600V
- Dielectric Withstanding Voltage: 3400 VAC
- Ambient Temperature: Between -40 C and 75 C
- Operating Temperature: Between -40 C and 105 C
- Housing Material: Polycarbonate
- Housing UL Rating: UL 94V-2
- Contact Material: Tin plated, copper alloy
- IP Rating: IP20, IPX5, IPX7, IPX8
- Product Specification: 108-133061
- Application Specification: 114-133061
- Wire Sizes: 18 AWG to 12 AWG (0.75mm[2] – 4.0mm[2])
Buy the 2213600-8 TE CONNECTIVITY Large Wire Connector | myMectronic
Purchase the TE Connectivity 2213600-8 CoolSplice Connector securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 22136008?
You can click on the BUY or RFQ button to purchase 22136008 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 22136008?
You can download the 22136008 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 22136008?
TE CONNECTIVITY
