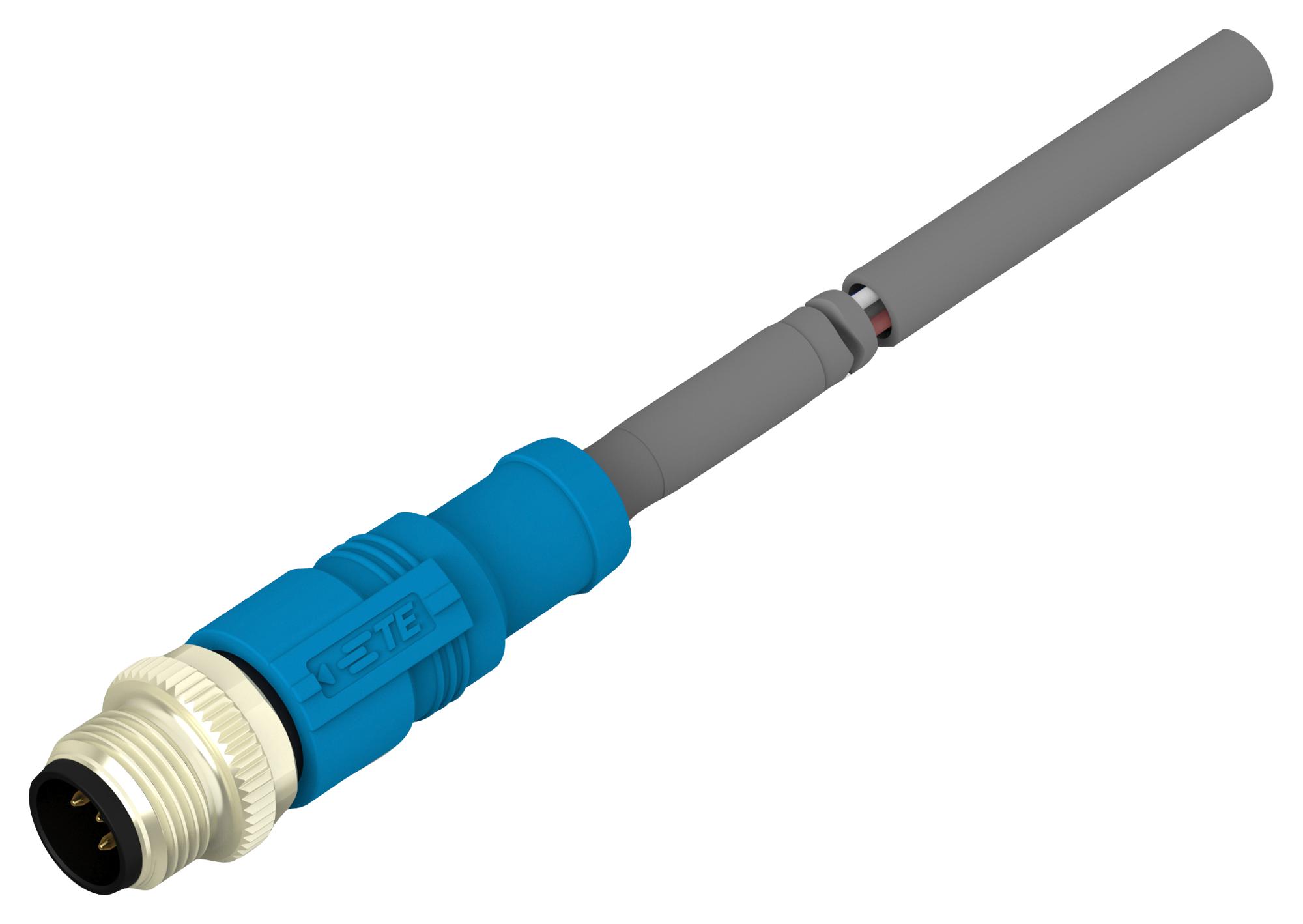

TE CONNECTIVITY T4161120005004 Industrial Sensor Cable
M8M12 cable assemblies are highly durable, IP67-rated connections designed for harsh industrial environments involving sensors, robotics, and machinery. These assemblies are available with shielded and unshielded variants, featuring PVC or PUR sheathing, and come in numerous lengths from 0.5 to 10 meters. They support multiple pin configurations including 2, 3, 4, 5, and 8 poles, offering reliable, dustproof, water-resistant connections suitable for demanding automation, machine tools, vision systems, and semiconductor manufacturing applications. Their robust design ensures minimal downtime and maintains operational integrity under extreme conditions.
TE CONNECTIVITY T4161120005004 Industrial Sensor Cable Specifications:
- Degree of protection: IP67 for dust and water resistance
- Cable sheathing: PVC or PUR
- Cable lengths: 0.5 m, 1 m, 1.5 m, 3 m, 5 m, 7 m, 10 m
- Pin configurations: 2, 3, 4, 5, 8 poles
- Temperature Ratings: -40°C to +80°C (fixed), -25°C to +80°C (flexible)
- Materials: Brass, Nickel-plated contacts, Silicon rubber O-ring, Stainless steel spring, PA housing, TPU over-molding
- Electrical ratings: Up to 250V, 4A depending on configuration
- Standards: UL2238, IEC 61076-2-101, 61076-2-104, 60512, 60529
- Construction: 32/0.10mm conductors, shield options with AL/Mylar and copper braid, flame retardant, RoHS compliant
Buy the Buy TE Sensor Actuator M8M12 Part Number T4161120005004 Online
Purchase the TE Sensor Actuator M8M12 cable assembly T4161120005004 online today to benefit from reliable, robust connections suitable for industrial automation, robotics, and machinery. Designed with IP67 protection and available in multiple lengths, these assemblies ensure continuous operation in harsh environments. Support your factory or automation project with quick delivery of shielded or unshielded options, featuring high-quality materials and compliance with safety standards. Get your reliable, cost-effective connection solution now for maximum uptime and operational efficiency.
Order your TE Series T4161120005004 easy-to-install sensor cable today and ensure reliable, dustproof connections for your industrial automation needs.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY T4161120005004?
You can click on the BUY or RFQ button to purchase T4161120005004 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part T4161120005004?
You can download the T4161120005004 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of T4161120005004?
TE CONNECTIVITY
