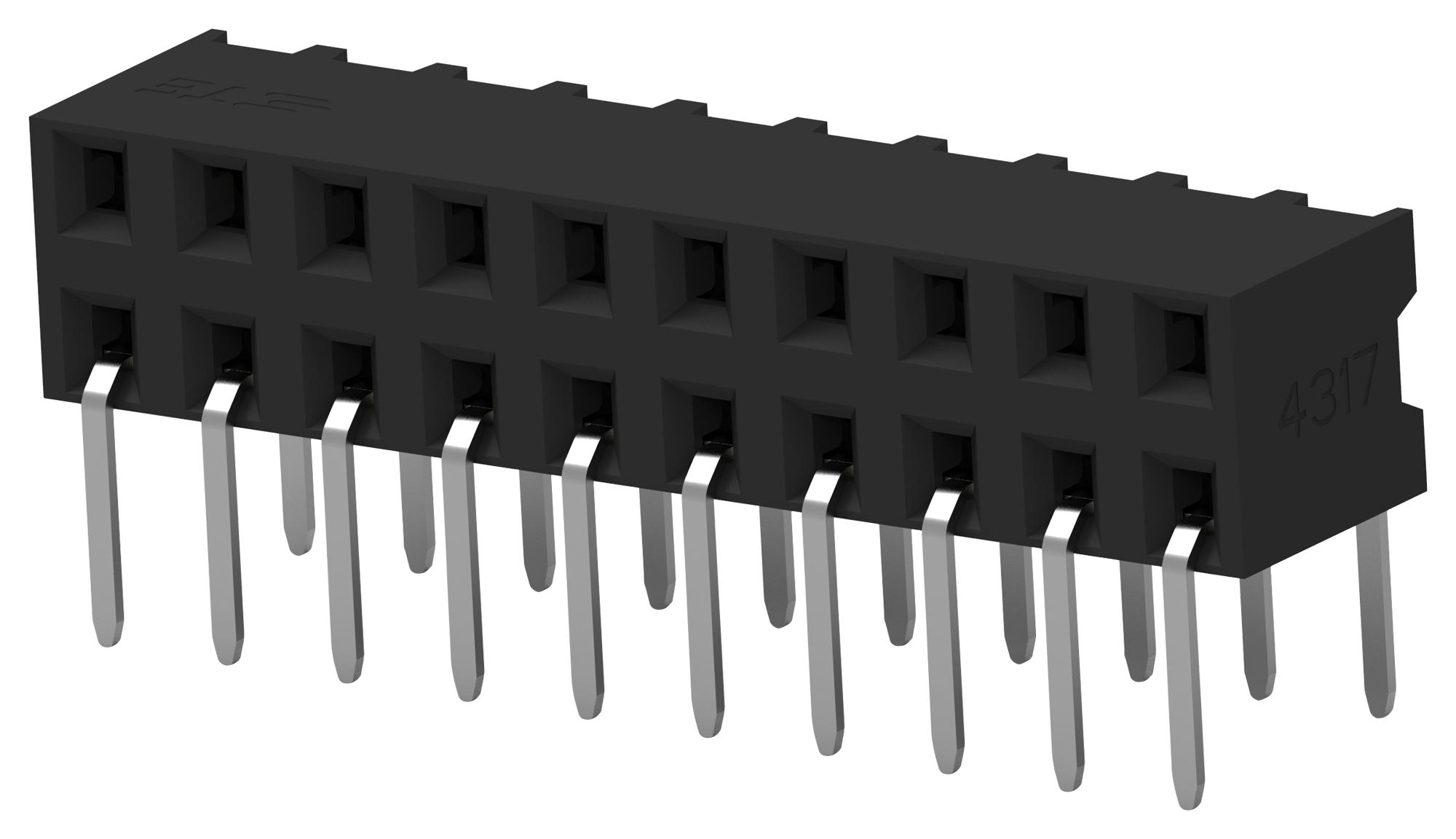

TE CONNECTIVITY 223149240 Board-to-Board Receptacle
TE Connectivity's AMPMODU 2mm board-to-board receptacles are designed with phosphor bronze dual-beam contacts for reliable signal transfer. These high-temperature-resistant liquid crystal polymer (LCP) plastic housings support surface-mount and through-hole reflow applications, accommodating various PCB thicknesses from 1.6mm to 2.4mm. Offered in multiple configurations, including vertical and dual-entry receptacles, they feature gold plating options, up to 25 positions, and meet UL and RoHS standards. Ideal for industrial automation, PLCs, servo drives, and test equipment for dependable, space-efficient interconnections.
TE CONNECTIVITY 223149240 Board-to-Board Receptacle Specifications:
- Centerline: 200mm [0.079"]
- Dual beam contact design for reliable signal transfer
- Housing Material: High-temperature LCP, UL 94V0, black
- Contact Material: Phosphor Bronze with gold plating options (30p" [0.76um], 15y" [0.38um], 4u" [0.1um])
- Current Rating: 2A (max.)
- Dielectric Withstanding Voltage: 650VAC
- Operating Voltage: 125VDC
- Operating Temperature: -40°C to 125°C
- Reflow Solder Capable to 260°C
- Certification: UL Listed, RoHS & REACH compliant, VDE Pending
- Dimensions support PCB thickness from 1.6mm to 2.4mm
- Compatible with automated surface-mount and through-hole manufacturing
Buy the Buy TE Connectivity Board-to-Board Receptacle Part Number 223149240 Online
Purchase the TE Connectivity 2mm board-to-board receptacle online now and experience reliable, space-saving interconnections for industrial controls and automation projects. These high-quality, UL Listed, RoHS compliant receptacles feature dual-beam contacts for enhanced signal integrity, available in various configurations and gold plating options. Designed for surface-mount and through-hole reflow manufacturing processes, they support PCB thicknesses from 1.6mm to 2.4mm, ensuring versatile compatibility and robust performance in demanding environments.
Order your TE Connectivity Series 223149240 2mm board-to-board receptacle today and ensure your PCB interconnections are dependable and space-efficient.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 223149240?
You can click on the BUY or RFQ button to purchase 223149240 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 223149240?
You can download the 223149240 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 223149240?
TE CONNECTIVITY
