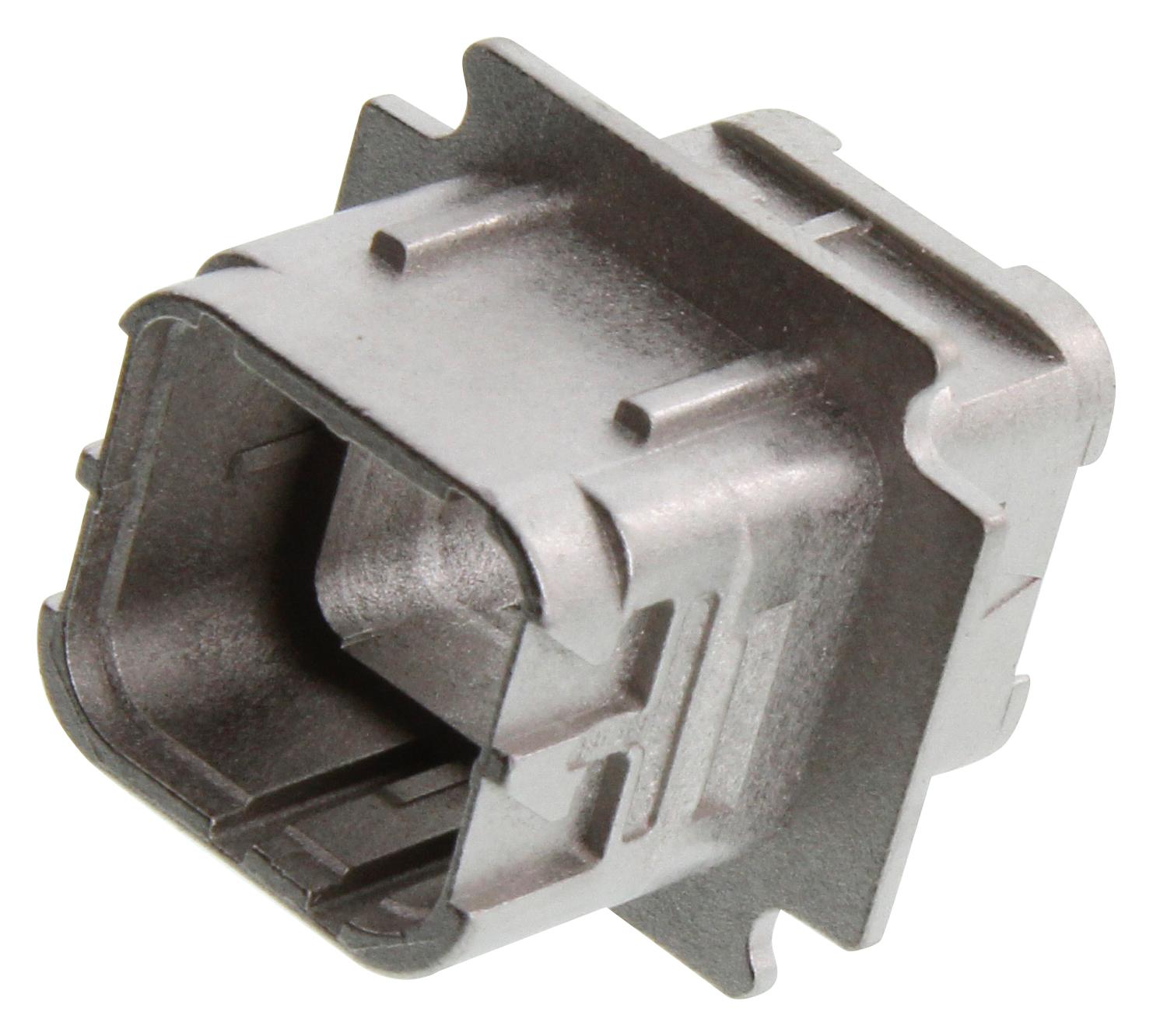

TE CONNECTIVITY DMCMD26N Modular Connector
The Deutsch DMC-MD series are modular, lightweight connectors designed for aerospace cabin systems, featuring compatibility with ARINC 809, EN4165, and BACC65 standards. They offer reliable and flexible connections, with options for various shells, keying, sealing, and accessories, suitable for IFE and cabin network applications. Constructed with durable composite housings and gold-plated contacts, these connectors withstand extreme environmental conditions, vibration, and numerous mating cycles, ensuring robust performance in demanding aerospace environments.
TE CONNECTIVITY DMCMD26N Modular Connector Specifications:
- Housing Material: Composite, nickel plated
- Modules: Thermoplastic and fluoronated silicone
- Crimp Contacts: Copper alloy, plated gold over nickel
- PCB Contacts: Copper alloy, plated gold over nickel, with lead or ROHS tinning options
- Temperature Range: -55°C to +175°C
- Vibration Resistance: 20 g
- Durability: 500 mating cycles
- Salt Spray Resistance: 500 hours
- Interfacial Sealing: 1.1 x 10^7 bar
- Contact Resistance: 5000 MΩ insulations resistance
- Pin Sizes & Ratings: various sizes from 12 to 24, rated from 3 A to 46 A
- EMI Shielding Attenuation: up to 50 dB at 100 MHz
- Weight: Receptacles approximately 0.013 – 0.015 lbs, plugs around 0.009 – 0.020 lbs
- Panel Mount Cutout: in millimeters, recommended panel thickness 0.8 mm to 2 mm
- Environmental Certifications: UL, CSA compliant
Buy the Buy Deutsch DMC-MD Series Connector Part Number DMCMD26N Online
Purchase the Deutsch DMC-MD modular connectors online to ensure high-quality, reliable connections for aerospace cabin systems. These connectors are designed to withstand extreme environmental conditions, including vibration, temperature variations, and corrosion, providing durable performance across aviation, defense, and marine industries. With quick and easy installation options, versatile accessories, and compliance to aerospace standards, these connectors optimize weight, space, and connection integrity. Buy now and enhance your system reliability with proven aerospace-grade connectivity solutions.
Buy Deutsch DMC-MD series connector DMCMD26N now and experience unmatched reliability, lightweight design, and rapid modular cabling solutions for aerospace applications.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY DMCMD26N?
You can click on the BUY or RFQ button to purchase DMCMD26N from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part DMCMD26N?
You can download the DMCMD26N datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of DMCMD26N?
TE CONNECTIVITY
