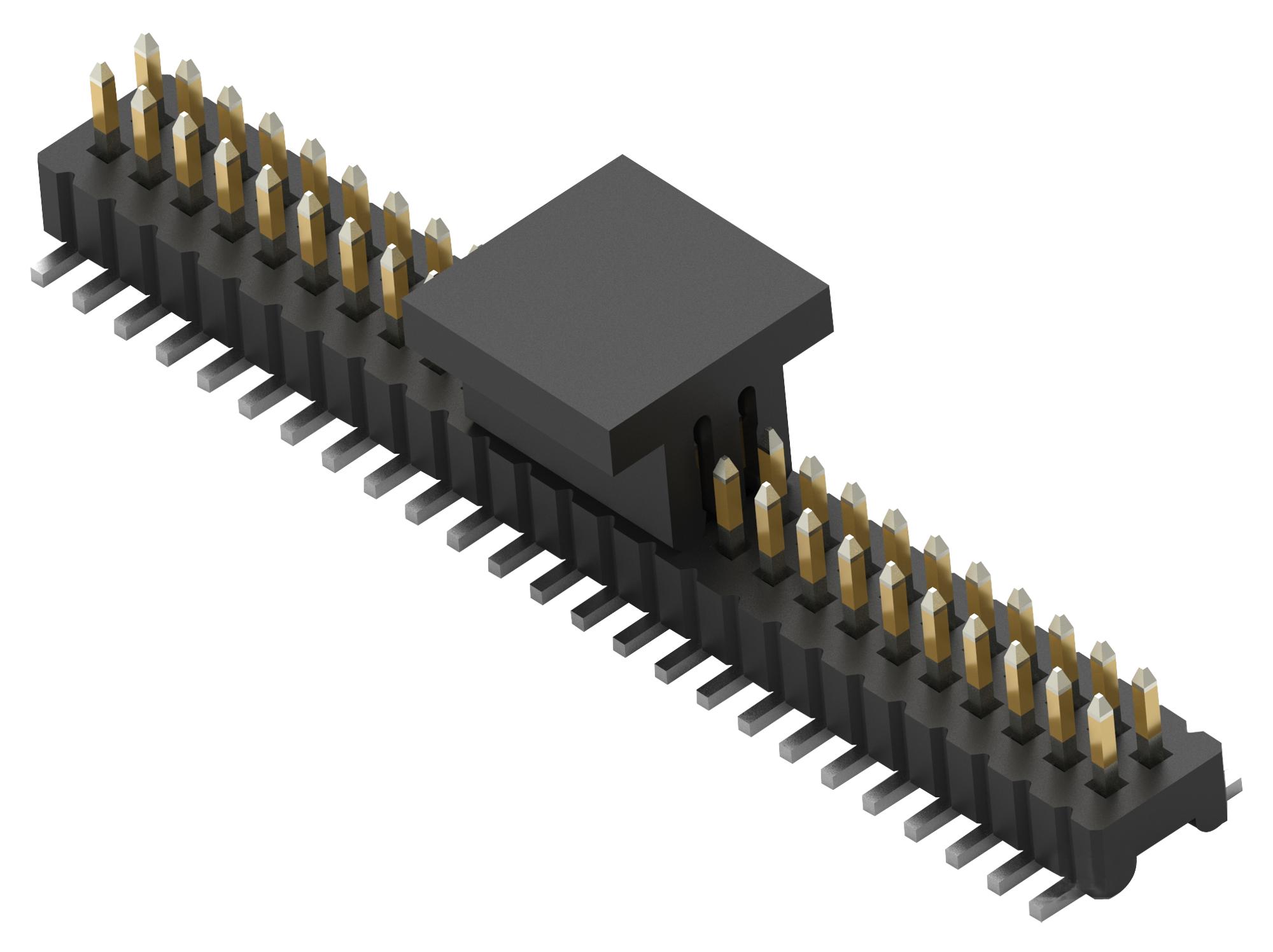

TE CONNECTIVITY 223319295 High-Density PCB Connector
TE Connectivity's AMPMODU Small Centerline Interconnection Systems are high-density 1.0 mm pitch connectors designed for space-saving PCB applications. Featuring dual-beam contacts and gold plating for reliability and corrosion resistance, these surface-mount connectors accommodate up to 100 positions with flexible assembly options. Ideal for industrial controls, automation, telecommunication, and robotics, they offer reflow capability up to 260°C, operate within -55°C to +125°C, and support automated pick-and-place processes, ensuring durable, reliable electrical connections in challenging environments.
TE CONNECTIVITY 223319295 High-Density PCB Connector Specifications:
- Centerline: 1.0 mm [0.0394"]
- Housing Material: high-temperature thermoplastic (LCP)
- Contact Material: copper alloy with gold flash plating (30" or 5u" gold options)
- Mounting Style: surface mount, vertical
- Operating Temperature: -55°C to +125°C
- Reflow Soldering: capable up to 260°C
- Electrical Rating: UL recognized at 1.0A, CSA at 0.8A
- Operating Voltage: 30VAC
- Dielectric Withstanding Voltage: 300VAC
- Vibration Resistance: no electrical discontinuity >1 microsecond per E1A-364-28
- RoHS and REACH compliant
- Packaging: tubes with pick & place caps
- Connector Size: double row, 5-100 positions per row
- Mounting Angle: vertical
- Connector type: receptacle, unshrouded header, double row
Buy the TE Connectivity 223319295 – Reliable Interconnection for Industrial Applications
Purchase the TE Connectivity high-density PCB connector online today and ensure your projects benefit from space-saving design, reliable dual-beam contacts, and corrosion-resistant gold plating. Ideal for automation, industrial control, telecommunication, and robotics applications, this connector offers ease of assembly with reflow capability up to 260°C, supports automated pick-and-place processes, and withstands extreme operating temperatures from -55°C to +125°C. Secure your supply now and streamline your electronic designs with TE's trusted interconnection solutions.
Order your TE Connectivity 223319295 high-density connector today and enhance your industrial automation and PCB space efficiency with trusted quality.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 223319295?
You can click on the BUY or RFQ button to purchase 223319295 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 223319295?
You can download the 223319295 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 223319295?
TE CONNECTIVITY
