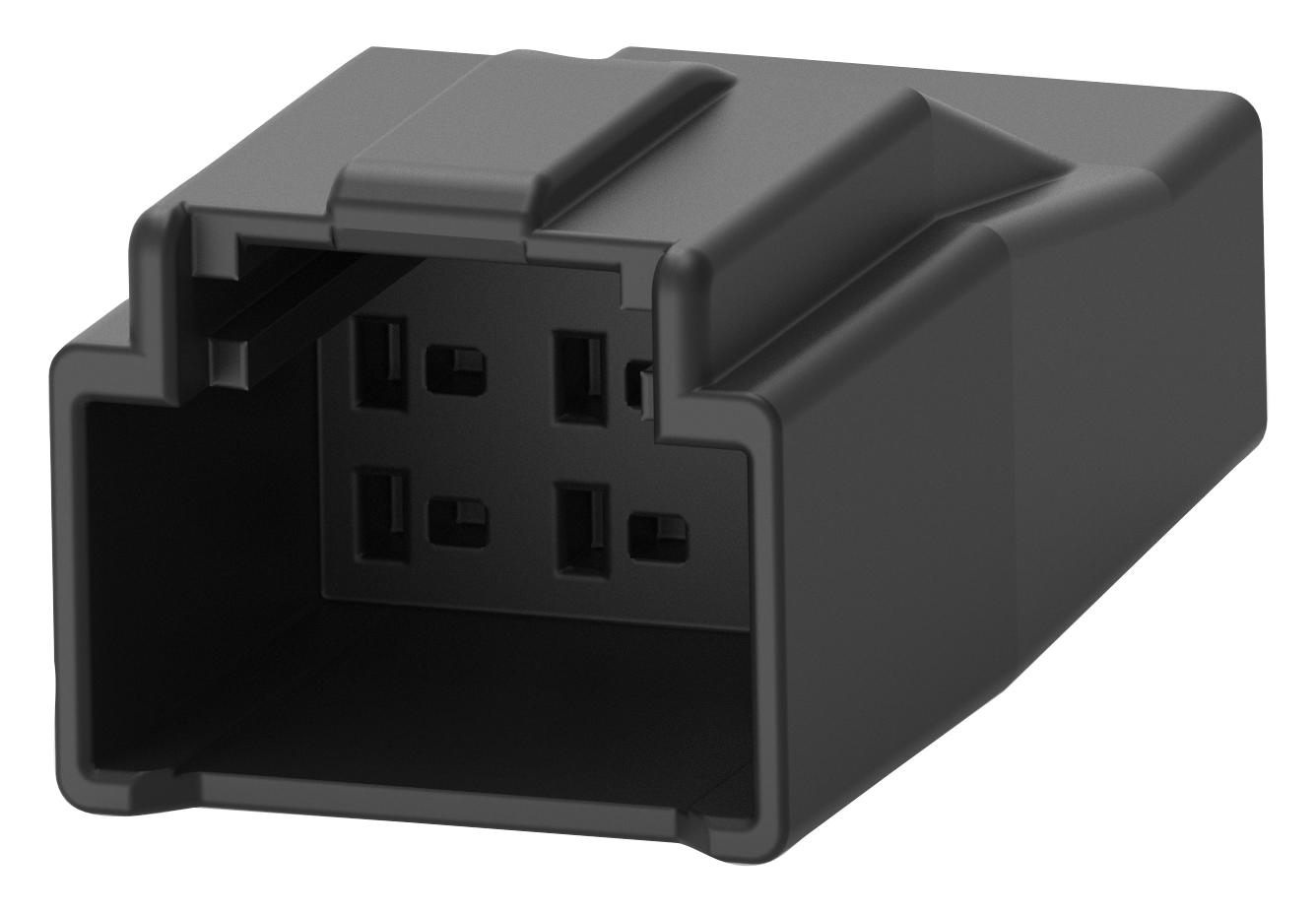

TE CONNECTIVITY 223666006 Wire-to-Wire Connector
The Dynamic D1000 Slim Small Wire-to-Wire Connector is ideal for narrow spaces in small industrial equipment and machinery. It is 80% smaller than the D1200 series, with a streamlined design and low interference risk. Keying and locking features increase reliability by preventing accidental unmating and lever breakage in confined environments like robotic arms and automation systems. Suitable for robotics, small industrial robots, collaborative robots, AGVs, servo motors, and sensors, it features a 6-position TAB housing with a Y key, supports up to 250V AC/DC, and withstands 1,500VAC for 1 minute. Made of UL 94V-0 thermoplastic with copper alloy contacts, operating from -55°C to +125°C.
TE CONNECTIVITY 223666006 Wire-to-Wire Connector Specifications:
- Applicable wire size: AWG 22 to 30
- Housing Material: Thermoplastic UL 94V-0, black
- Contact Material: Copper alloy
- Current Rating: 4.5A per position
- Voltage Rating: 250V AC/DC maximum
- Withstand Voltage: AC 1,500V for 1 minute
- Operating Temperature: -55°C to +125°C
- Connector Type: Wire-to-wire
- Number of Positions: 6
- Housing: Y key, TAB type
- Size reduction: 80% smaller than D1200 series
- Locking features: audible locking, keying system
Buy the Buy TE Connectivity DYNAMIC D1000 SLIM Wire-to-Wire Connector Part Number 223666006 Online
Purchase the TE Connectivity D1000 Slim Wire-to-Wire Connector online today to enhance your automation projects. Its compact size saves valuable space while maintaining excellent electrical performance. Designed for narrow spaces in small industrial equipment, this connector offers easy mating, reliable locking, and durability under harsh conditions. With a maximum voltage of 250V AC/DC, withstand voltage of 1,500VAC, and temperature range of -55°C to +125°C, it ensures safe, efficient electrical connections in robotics, sensors, and automated machinery. Get yours now for faster installation and enhanced system reliability.
Buy TE Connectivity DYNAMIC D1000 SLIM connector now and experience reliable, space-saving connections ideal for small robotics and automation systems.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 223666006?
You can click on the BUY or RFQ button to purchase 223666006 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 223666006?
You can download the 223666006 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 223666006?
TE CONNECTIVITY
