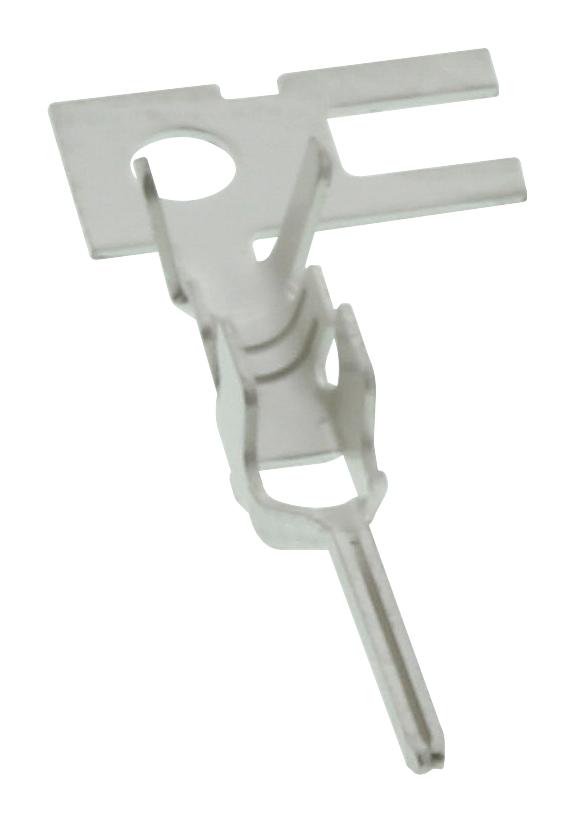

TE CONNECTIVITY 22380071 Electrical Connectors
The Economy Power 2.5 connector series offers compact, reliable wire-to-wire and wire-to-board connections with a 2.5mm centerline pitch, ideal for densely packed PCBs. Featuring UL 94 V-0 rated nylon housings, copper alloy contacts, optional glow wire compliance, and various mounting options, these connectors cater to household appliances, HVAC, and industrial machinery. They include multiple configurations such as vertical and right-angle headers, with features like polarization tabs and optional TPA retainers, ensuring secure, easy-to-assemble connections that meet safety standards and support automated manufacturing.
TE CONNECTIVITY 22380071 Electrical Connectors Specifications:
- Centerline pitch: 2.5mm (0.098")
- Housing Material: UL 94 V-0 rated Nylon, PBT on tape in ammo box packaging
- Contacts: Copper alloy, tin plated
- Voltage rating: 250VAC
- Current rating: 4.24A (max.)
- Wire Range: 0.13 to 0.56mm (26 to 20 AWG)
- Operating temperature: -55°C to 105°C
- Number of Positions: 2 to 15 single row wire-to-wire, 2 to 20 wire-to-board, 8 to 40 dual row
- Standards: UL Recognized, IEC/EN 60335-1 Glow Wire test compliant, UL 94 V-0
- Housing features: Locking latch, polarization tabs, various mounting styles, optional colored housings
- Applicability: Household appliances, HVAC, industrial machinery
- Configurations: Vertical and right angle headers, single and dual row options, TPA retainers optional,
Buy the TE Series EP 2.5 Connectors: 22380071
Purchase TE Connectivity EP 2.5 connectors online today to ensure reliable, space-saving connections for your electronic assemblies. These connectors feature UL 94 V-0 rated nylon housings and copper alloy contacts, offering safe, high-quality performance across household, HVAC, and industrial applications. Available in various configurations including vertical and right angle headers, they support automated assembly with optional TPA retainers and color options for easy identification. Trust TE’s proven reliability for your wiring needs, and enjoy quick, secure online ordering with guaranteed authentic products.
Get TE Connectivity EP 2.5 connectors today—compact, durable, and designed for easy assembly in dense electronic systems.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 22380071?
You can click on the BUY or RFQ button to purchase 22380071 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 22380071?
You can download the 22380071 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 22380071?
TE CONNECTIVITY
