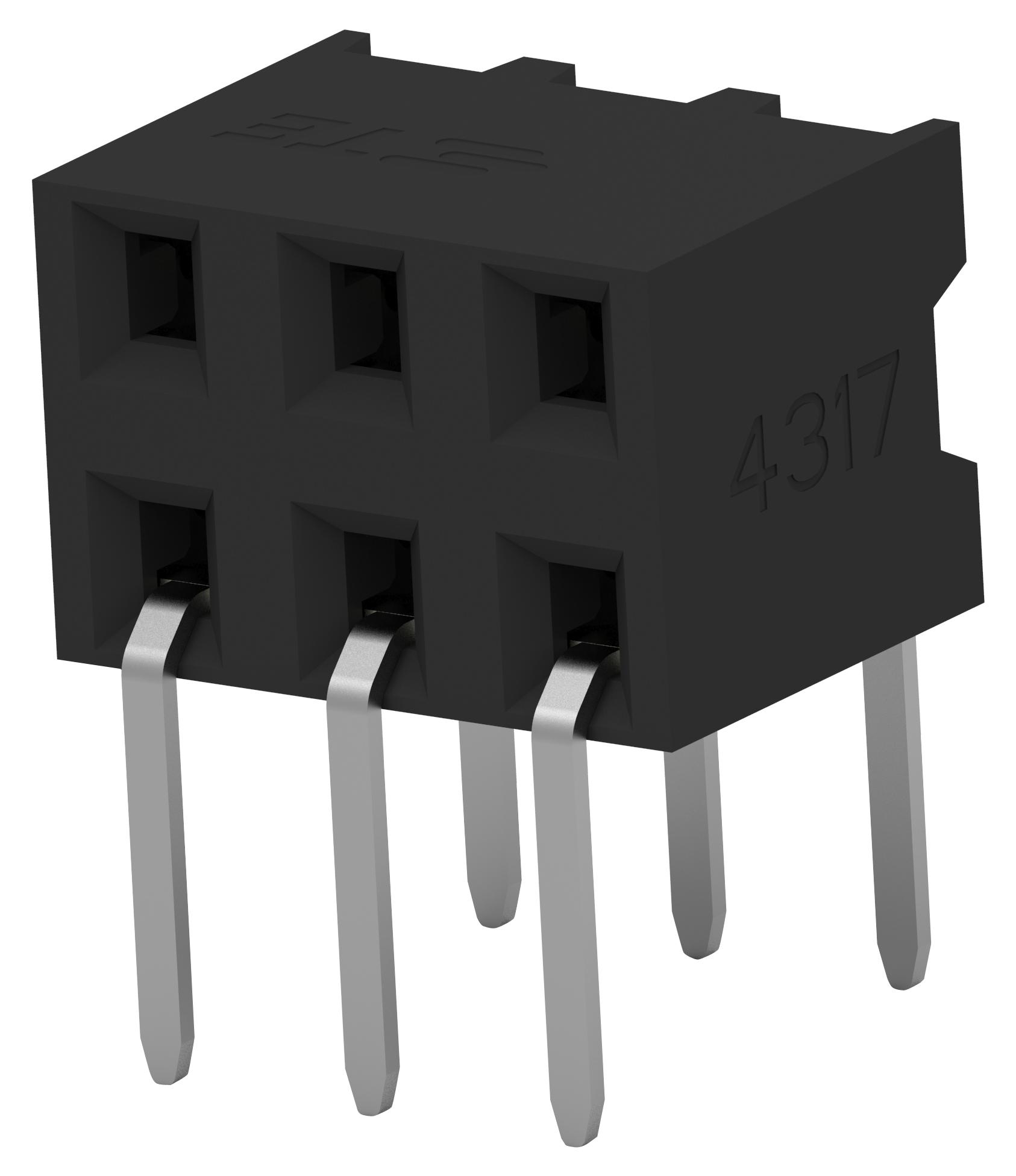

TE CONNECTIVITY 23149246 Board-to-Board Connector
The product is a high-precision, space-saving board-to-board connector designed for industrial automation, testing, and control systems. It features dual beam contacts for reliable signal transfer, with options for surface-mount or through-hole mounting on PCBs from 1.6mm to 2.4mm thick. Its compact 2mm centerline reduces space by 38%, enabling extended functionality in tight spaces. Suitable for applications such as PLCs, servo drives, and building automation, it offers multiple configurations, high-temperature resistance, and gold plating varieties to ensure dependable electrical connections under demanding industrial conditions.
TE CONNECTIVITY 23149246 Board-to-Board Connector Specifications:
- Centerline: 2mm [0.079"]
- Contact Material: Phosphor Bronze
- Plating Options: 30p" [0.76um], 15y" [0.38um], or 4u" [0.1um] Gold
- Current Rating: 2A (max.)
- Dielectric Withstanding Voltage: 650VAC
- Operating Voltage: 125VDC
- Operating Temperature: -40°C to 125°C
- Reflow Solder Capability: Up to 260°C
- Housing Material: High-temperature LCP plastic, UL 94V0, Black
- Vibration Resistance: No electrical discontinuity >1microsecond
- Certifications: UL Certified, RoHS & REACH Compliant, VDE Pending
- Packaging: Tape & reel, tube options available
- Mounting Options: Surface-mount, through-hole, dual entry, vertical, horizontal, SMT
Buy the TE Connectivity 23149246 – Reliable Board-to-Board Connectors for Industrial Applications
Order TE Connectivity 23149246 online today to ensure your industrial and automation projects benefit from high-quality, space-efficient, and reliable board-to-board connections. With multiple mounting options and gold plating for durability, this connector provides dependable signal transfer in demanding environments. Perfect for PLCs, servo drives, control systems, and building automation, it reduces PCB space by 38%, supports various PCB thicknesses, and is UL and RoHS compliant. Purchase now for fast delivery and seamless integration into your project's electronic design.
Buy TE Connectivity 23149246 now and experience reliable, space-saving connections ideal for industrial automation, control, and testing systems.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 23149246?
You can click on the BUY or RFQ button to purchase 23149246 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 23149246?
You can download the 23149246 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 23149246?
TE CONNECTIVITY
