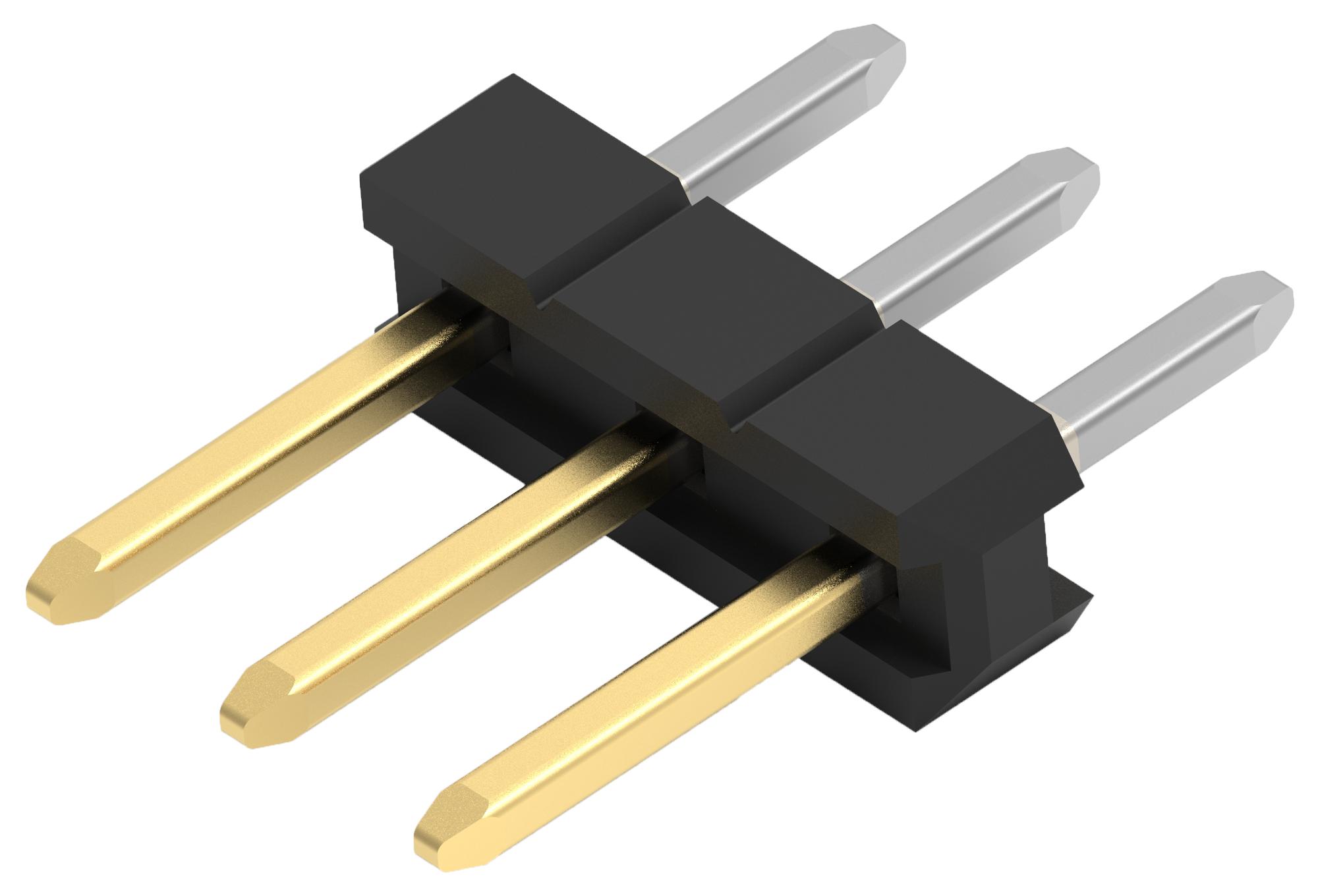

TE CONNECTIVITY 23551823 2mm Breakaway Header
TE Connectivity's AMPMODU 2mm breakaway headers provide a space-saving and versatile interconnect solution for a wide range of industrial applications. These headers feature a centerline of 2mm, reducing board space by 38% compared to traditional 2.54mm headers. They are compatible with major brand receptacles and support automated surface mounting, through-hole-reflow, and traditional through-hole mounting. Ideal for applications such as programmable logic controllers (PLCs), servo drives, industrial controls, material handling systems, and instrumentation, these headers offer a robust and efficient connection solution.
TE CONNECTIVITY 23551823 2mm Breakaway Header Specifications:
- Centerline: 2.00mm [0.079”]
- Contact Dimension: 0.50mm [0.02”] square pins
- Connector Size: 2-25 positions per row
- PCB Thickness: 1.6mm to 2.4mm [0.063” to 0.094”]
- Operating Environment Class: Class III
- Current Rating: 2A (max.)
- Dielectric Withstanding Voltage: 650VAC
- Operating Voltage: 125VDC
- Plating: 0.76 µ m [30 µ ’’] Gold, 0.38 µ m [15 µ ’’] Gold, 0.1 µ m [4 µ ’’] Gold, Tin
- Housing Material: High Temperature Plastic, UL 94V0, Black
- Contact Material: Brass
- Operating Temperature: -40°C to 125°C
- Reflow Solder: Capable to 260°C
- Vibration: No electrical discontinuity greater than 1 microsecond
- RoHS Compliant: Yes
- UL Certified: Yes
- Product Specification: 108-64040
- Application Specification: 114-32259
