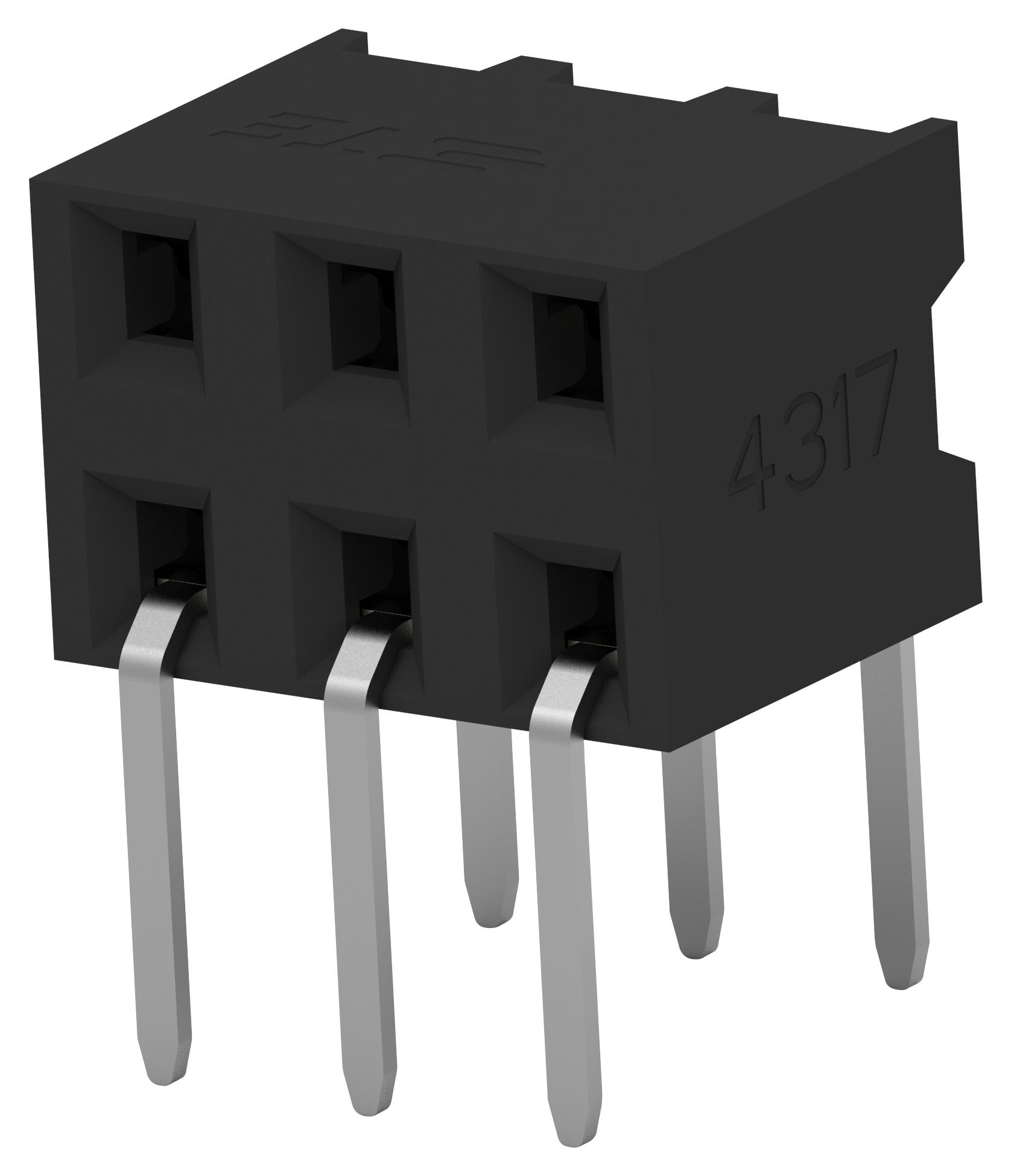

TE CONNECTIVITY 23149266 Board-to-Board Receptacle
The TE Connectivity AMPMODU 2mm Board-to-Board Receptacles are compact connectors designed for reliable signal transfer in industrial and automation applications. Featuring dual beam contacts with phosphor bronze and gold plating options, these receptacles support surface-mount and through-hole mounting methods with multiple solder tail lengths suitable for PCB thicknesses of 1.6mm to 2.4mm. They are RoHS & REACH compliant, UL certified, and available in various configurations including vertical, horizontal, dual entry, and outrigger designs, making them ideal for PLCs, servo drives, and building automation systems. The high-temperature resistant LCP housing ensures durability in demanding environments.
TE CONNECTIVITY 23149266 Board-to-Board Receptacle Specifications:
- Centerline: 200mm [0.079"]
- Dual beam contact design for reliable signal transfer
- Contact Material: Phosphor Bronze with gold plating options of 30p", 15y", or 4u"
- Operating Temperature: -40°C to 125°C
- Dielectric Withstanding Voltage: 650VAC
- Operating Voltage: 125VDC
- Current Rating: 2A max.
- Reflow Solder Capability: up to 260°C
- Housing Material: High-temperature LCP, UL 94V0, black
- Dimensions vary with configuration; PCB mounting options include surface-mount and through-hole
- Compliance: RoHS & REACH compliant, UL certified, VDE pending approval
Buy the TE Connectivity Series AMPMODU 2mm Board-to-Board Receptacles: 23149266
Experience reliable and space-efficient connections with the TE Connectivity AMPMODU 2mm Board-to-Board Receptacles. These compact connectors support both surface-mount and through-hole installation methods, designed for PCB thicknesses from 1.6mm to 2.4mm, ensuring durability in industrial applications. With dual-beam contacts, high-temperature housing, and multiple configurations, they provide flexible, high-quality connections for PLCs, servo drives, automation, and test equipment. Certified for safety and environmental standards, they are the ideal choice for demanding engineering projects. Order online today for fast delivery and seamless integration into your systems.
Get TE Connectivity 23149266 today—built for precision and long-lasting durability in industrial and automation environments.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 23149266?
You can click on the BUY or RFQ button to purchase 23149266 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 23149266?
You can download the 23149266 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 23149266?
TE CONNECTIVITY
