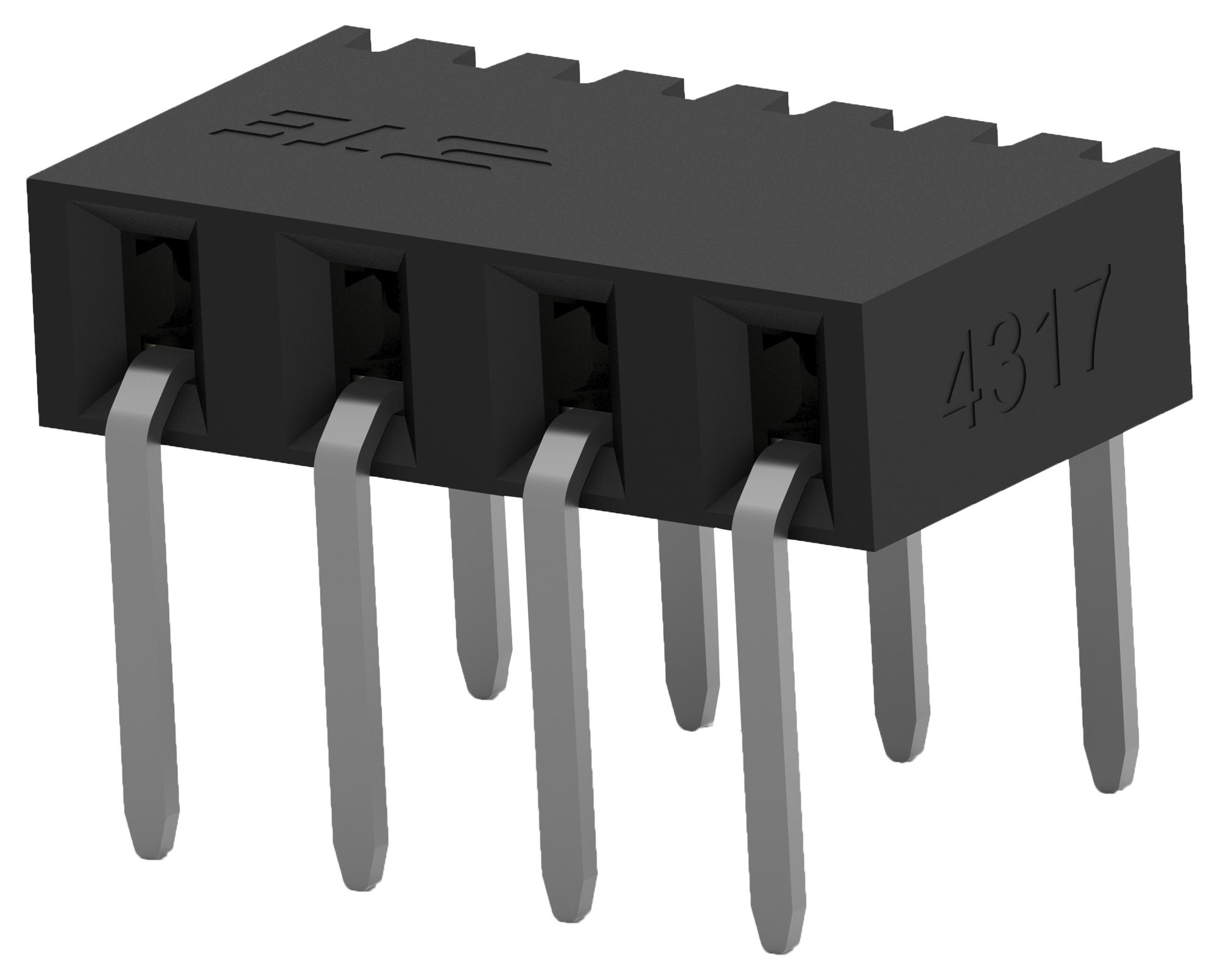

TE CONNECTIVITY 23149364 Board-to-Board Receptacle
The TE Connectivity AMPMODU 2mm Board-to-Board Receptacle is a reliable, high-density interconnect solution designed for industrial applications. Featuring dual beam contacts made of phosphor bronze with gold plating options, these receptacles support surface-mount and through-hole assembly processes, including automated manufacturing. They are suitable for PCB stacking with various configurations, occupy 38% less space than larger alternatives, and provide two-point electrical stability for consistent signal transfer. Designed to operate flawlessly from -40°C to 125°C, they handle currents up to 2A and withstand dielectric voltages up to 650VAC, ensuring durability in demanding environments.
TE CONNECTIVITY 23149364 Board-to-Board Receptacle Specifications:
- Centerline: 200mm [0.079"]
- Contact Material: Phosphor Bronze
- Plating Options: 30p" [0.76um], 15y" [0.38um], 4u" [0.1um]
- Operating Temperature: -40°C to 125°C
- Current Rating: 2A (max.)
- Dielectric Withstanding Voltage: 650VAC
- Operating Voltage: 125VDC
- Material: High-temperature plastic (LCP), UL 94V0, Black
- Reflow Solder Capable up to 260°C
- RoHS & REACH Compliant
- UL Certified
- Package Types: Tube, Tape & Reel
- Positions per row: 2–25 for single row, 4–50 for double row
- Available in vertical and horizontal configurations with top-entry or dual-entry designs
Buy the TE Series AMPMODU 2mm Receptacle: 23149364
Purchase the TE Connectivity AMPMODU 2mm Board-to-Board Receptacle online today and experience reliable, space-efficient connections for industrial controls, PLCs, and automation systems. Designed for high performance and durability, this high-density interconnect features dual beam contacts, multiple configurations, and excellent thermal stability. Perfect for surface-mount and through-hole applications, it supports automated assembly processes for quick and secure installation. Ensure your project benefits from proven reliability, compact design, and compliance with industry standards—order now for fast delivery and expert support.
Get TE Connectivity AMPMODU 2mm Receptacle today—built for precision, space-saving, and long-lasting durability in industrial electronics.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 23149364?
You can click on the BUY or RFQ button to purchase 23149364 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 23149364?
You can download the 23149364 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 23149364?
TE CONNECTIVITY
