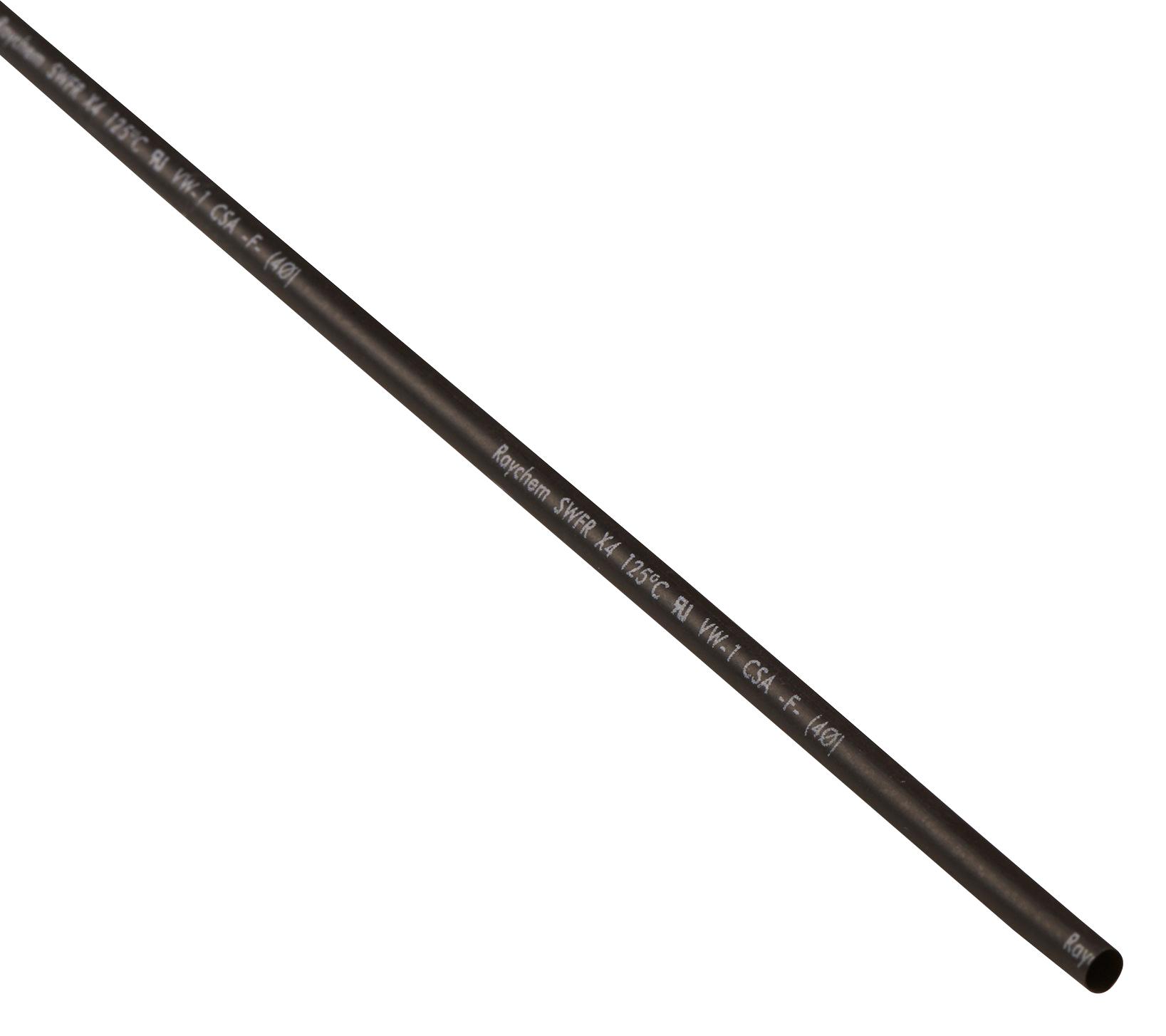

TE CONNECTIVITY X4350SPSM Heat-Shrinkable Tubing
SWFR X4 heat-shrinkable tubing is a high-performance, ultra-thin-wall, flame-retardant polyolefin cover designed for tight space applications. With a minimum shrink temperature of 70°C and full recovery at 90°C, it offers excellent flexibility and rapid shrinking — over twice as fast as standard tubing at 125°C. Suitable for voltages up to 300 V and operating temperatures from -30°C to 125°C, it is ideal for protecting components, reducing overheating risks, and providing environmentally friendly, halogen-free insulation in electrical and electronic projects.
TE CONNECTIVITY X4350SPSM Heat-Shrinkable Tubing Specifications:
- Minimum Shrink Temperature: 70°C
- Full Recovery Temperature: 90°C
- Continuous Operating Temperature: -30°C to 125°C
- Inside Diameter (nominal): 0.954 mm to 25.0 mm
- Wall Thickness (fully recovered): 0.15 mm to 0.46 mm
- Material: Polyolefin
- Flammability: UL 94V-0, CSA Certified
- Voltage Rating: 300 V
- Color: Black
- Packaging: Spools
- Marking: UL and CSA markings, standard labels
- Dimensions: Tubing sizes from 0.6 mm to 25.0 mm diameter, recovered diameter varies per size, wall thickness up to 0.46 mm
- Application: Insulation of electrical components, space-saving wiring protection, rapid shrinkage for heat-sensitive parts
Buy the Raychem Series SWFR X4 Heat-Shrinkable Tubing: X4350SPSM
Get your Raychem SWFR X4 heat-shrinkable tubing online now to benefit from rapid shrinking, flame-retardant properties, and space-efficient insulation. With sizes ranging from 0.6 mm to 25 mm diameters, UL and CSA certifications, and excellent flexibility, this tubing is perfect for insulation, protection, and reducing overheating in electrical and electronic projects. Order today for quick delivery and enhance your wiring safety and efficiency with high-quality, environmentally friendly, halogen-free tubing designed for demanding applications.
Order your Raychem Series SWFR X4 heat-shrink tubing today and ensure fast, reliable electrical insulation in tight spaces with flame-retardant protection.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY X4350SPSM?
You can click on the BUY or RFQ button to purchase X4350SPSM from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part X4350SPSM?
You can download the X4350SPSM datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of X4350SPSM?
TE CONNECTIVITY
