TE CONNECTIVITY 23219203 Sealed Signal Connectors
The 2.5mm Sealed Signal Double Lock connectors feature a perimeter seal plug housing with a blue silicone rubber seal, providing water and dust protection rated IP67. Designed with a compact 2.5mm centerline spacing, these connectors support reliable performance in water-related and high humidity environments. They are available in panel mount and free hanging configurations, accept 26-20 AWG wire, and are rated up to 3 amps per line at 250 VAC. Features include polarized terminals, snag-proof latch, optional TPA, and compliance with global safety standards such as UL94 V-0 and Glow Wire Test.
TE CONNECTIVITY 23219203 Sealed Signal Connectors Specifications:
- Centerline Spacing: 2.5mm
- Current Rating: Up to 3 amps per line
- Voltage Rating: 250 VAC
- Wire Range: 26-20 AWG

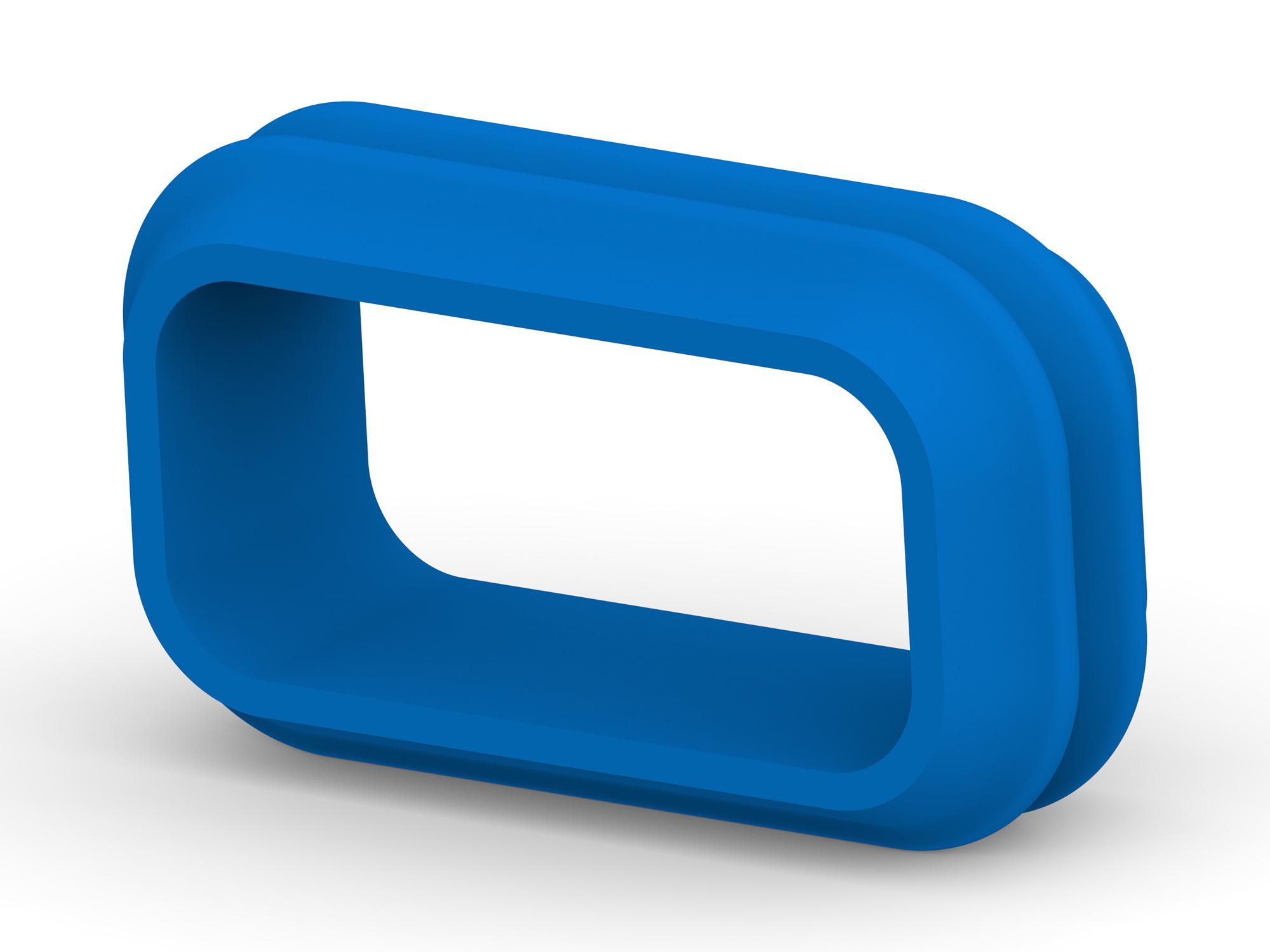

- Sealing: Blue silicone rubber sealing perimeter
- Protection Class: IP67 rated for water and dust resistance
- Housing Types: Panel mount and free hanging
- Locking: Double lock with snag-proof latch
- Standards: UL94 V-0, Glow Wire Test (750°C, no flame)
- Contacts: Polarized terminals, optional TPA for proper assembly
- Application: Home appliances, industrial equipment, outdoor tools, automotive, and personal healthcare devices
Buy the TE Connectivity Series SDL2.5 Sealed Signal Dual Lock: 23219203
Enhance your projects with TE Connectivity Sealed Signal Connectors designed for water, dust, and humidity resistance. With compact 2.5mm centerline spacing, lock-in safety, and IP67 sealing, these connectors support reliable performance in industrial, automotive, and home appliances. Compatible with 26-20 AWG wires, rated up to 3 amps and 250 VAC, featuring polarized terminals, snag-proof latch, and optional TPA for proper assembly. Meet global safety standards such as UL94 V-0 and Glow Wire Test, delivering quality and safety for critical applications.
Order your TE Connectivity Series SDL2.5 sealed waterproof connectors today and ensure reliable, high-performance connections in demanding environments.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 23219203?
You can click on the BUY or RFQ button to purchase 23219203 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 23219203?
You can download the 23219203 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 23219203?
TE CONNECTIVITY
