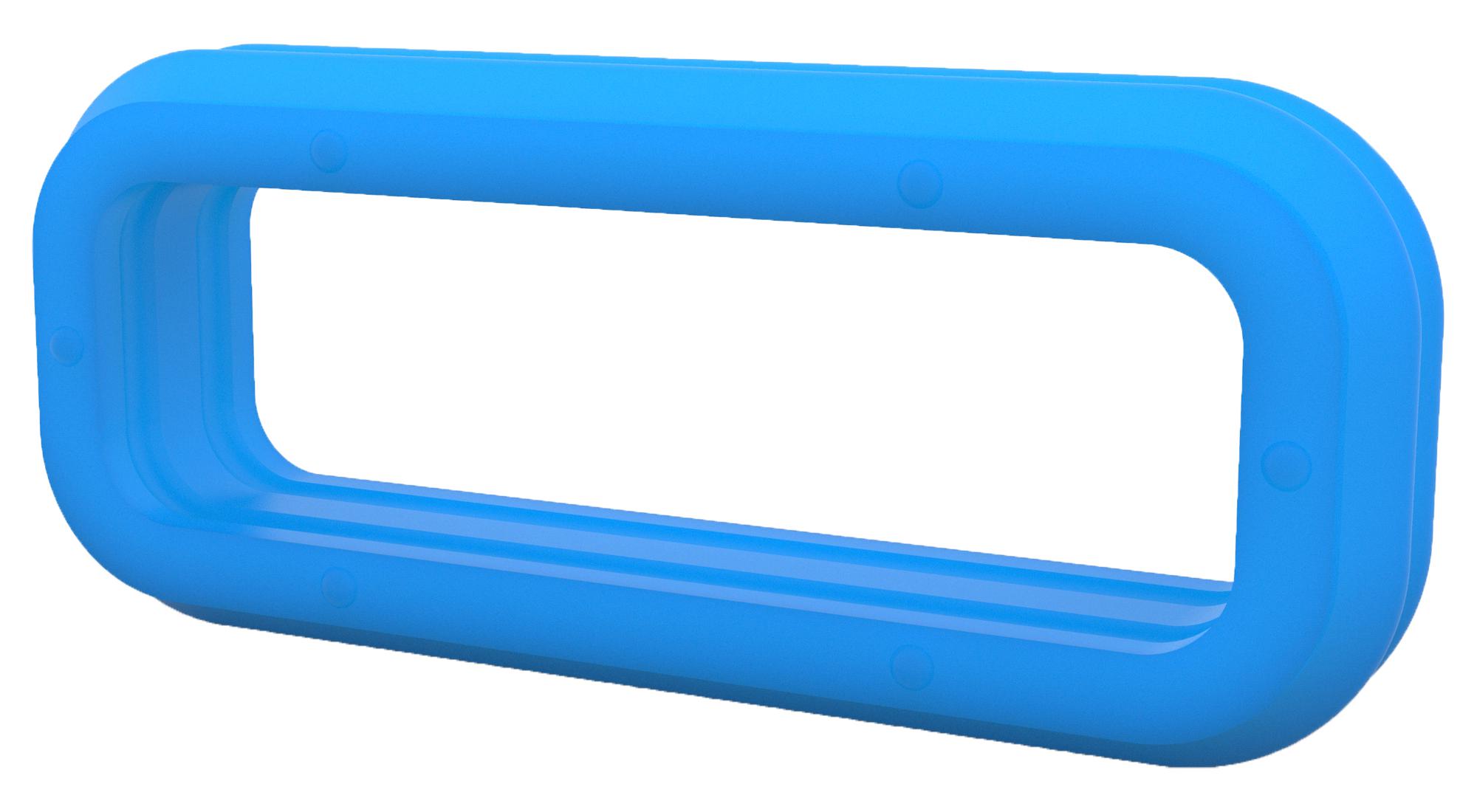

TE CONNECTIVITY 23253473 Rectangular Connector Seal
The TE Connectivity 2325347-3 is an interface seal accessory specifically engineered for use with Power Versa-Lock sealed connectors. This seal provides a robust and reliable connection in wire-to-wire applications, ensuring environmental protection and signal integrity. With a 3-position configuration and a 5mm centerline, it's ideal for applications requiring a compact and sealable connector solution. Constructed from durable silicone rubber, this seal offers excellent resistance to temperature extremes and chemical exposure, making it suitable for demanding industrial environments.
TE CONNECTIVITY 23253473 Rectangular Connector Seal Specifications:
- Connector Seal Type: Interface Seal
- Connector System: Wire-to-Wire
- Number of Positions: 3
- Centerline (Pitch): 5 mm [ .197 in ]
- Sealable: Yes
- Accessory Color: Blue
- Product Type: Accessory
- Material: Silicone Rubber
- Seal Color: Blue
- Seal Material: Silicone Rubber
- Connector & Contact Terminates To: Wire & Cable
- Operating Temperature Range: -30 – 105 °C[-22 – 221 °F]
- EU RoHS Directive 2011/65/EU: Compliant
- EU ELV Directive 2000/53/EC: Compliant
- China RoHS 2 Directive MIIT Order No 32, 2016: No Restricted Materials Above Threshold
- EU REACH Regulation (EC) No. 1907/2006: Current ECHA Candidate List: JAN 2021 (211). Does not contain REACH SVHC
- Halogen Content: Low Halogen - Br, Cl, F, I < 900 ppm per homogenous material. Also BFR/CFR/PVC Free
- Solder Process Capability: Not reviewed for solder process capability
