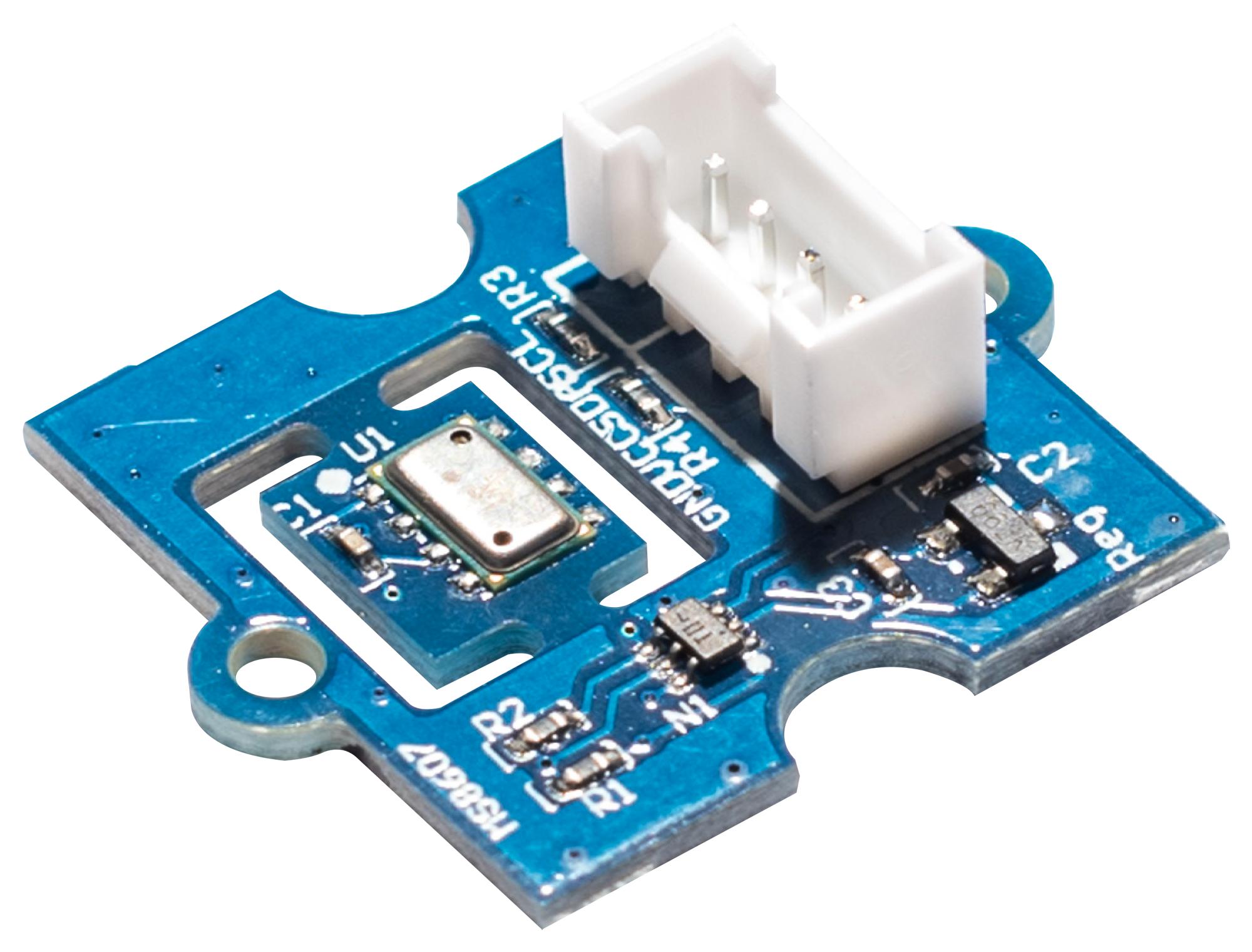

TE CONNECTIVITY DPP901G000 Digital Pressure Humidity Temperature Sensor
The DPP901G000 by Sensor Solutions from TE Connectivity is a Grove-compatible digital sensor module integrating the MS8607 sensor for precise pressure, humidity, and temperature measurements. Suitable for weather stations, embedded systems, and environmental monitoring, it measures pressure from 300 to 1200 mbar (extended up to 2000 mbar), humidity from 0% to 100%, and temperature from -40°C to 125°C. Powered at 5V with I²C communication, the compact module features low power consumption, fast response times, and calibration for high accuracy: ±2 mbar for pressure, ±3%RH, and ±1°C. Its dimensions are 20.6mm x 20.6mm, with a four-pin Grove connector and parameters stored on-chip, making it ideal for reliable environmental sensing in compact devices.
TE CONNECTIVITY DPP901G000 Digital Pressure Humidity Temperature Sensor Specifications:
- Operating pressure range: 300 to 1200 mbar, extended up to 2000 mbar
- Measures relative humidity from 0% to 100%
- Measures temperature from -40°C to 125°C
- Power supply: 5V
- Communication: I²C
- Dimensions: 20.6mm x 20.6mm
- Pressure accuracy: ±2 mbar at 25°C
- Humidity accuracy: ±3%RH at 25°C
- Temperature accuracy: ±1°C from -20°C to +85°C
- Features: Fast response, low power consumption, stored parameters on-chip
- Connector: 4-pin Grove compatible
- Operating voltage: 3.6V (level shifted for 5V I²C)
- Calibration: Fully calibrated during manufacturing
Buy the TE Connectivity Series MS8607 Digital Pressure Humidity Temperature Sensor: DPP901G000
Purchase the TE Connectivity DPP901G000 environmental sensor module online today and take advantage of its high accuracy measurements, compact design, and low power consumption. Ideal for weather stations, embedded systems, and environmental monitoring applications, this Grove-compatible module provides reliable pressure, humidity, and temperature readings with calibration already performed during manufacturing. Its 4-pin connector ensures easy integration, while its fast response and parameters stored on-chip deliver quick, consistent results. Enhance your project's precision with this durable and easy-to-use sensor module available for immediate online purchase.
Buy TE Connectivity DPP901G000 now and experience unmatched reliability and precise environmental sensing for your weather stations and embedded systems.
