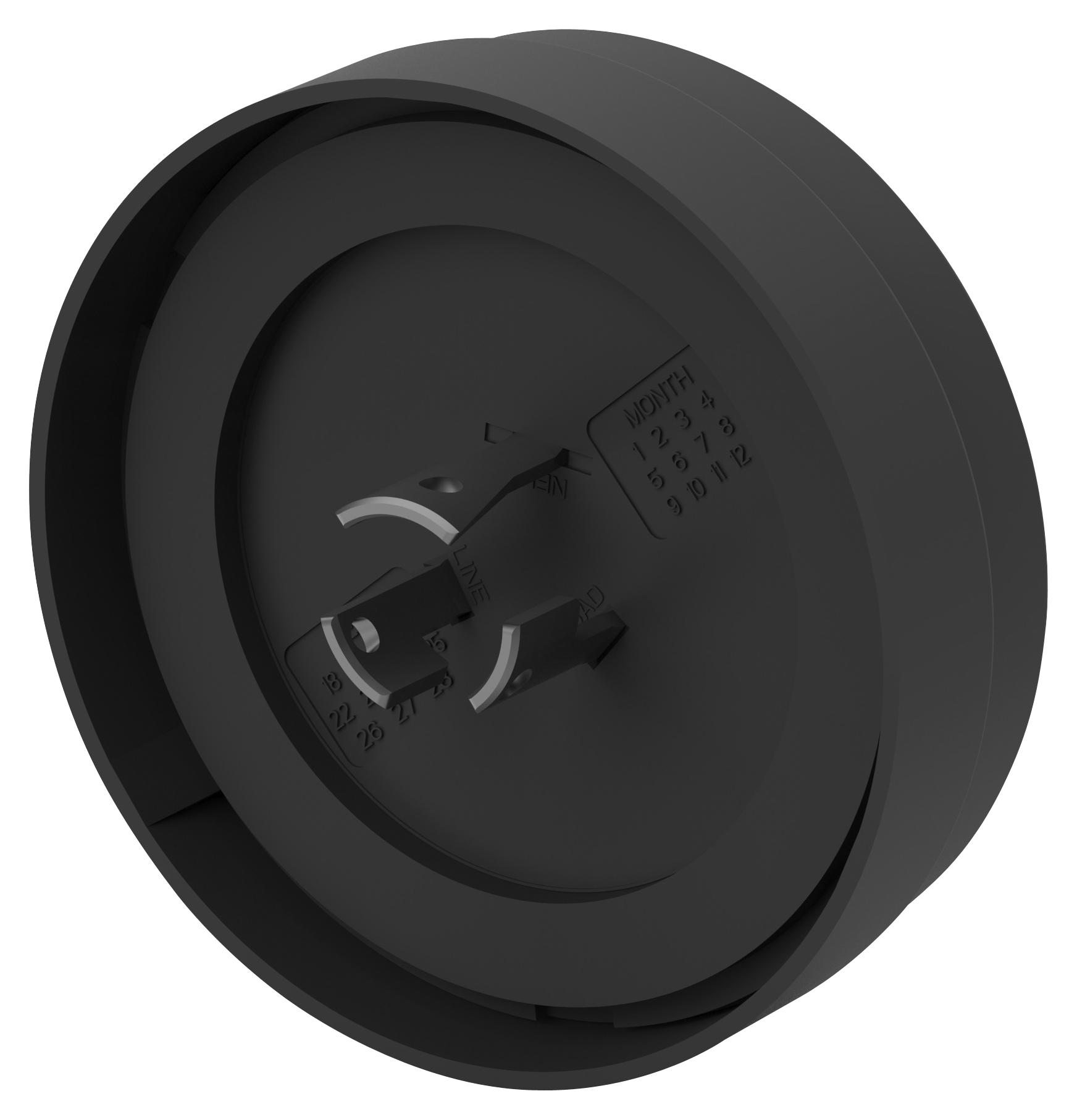

TE CONNECTIVITY 23281181 LUMAWISE Endurance Shorting Cap
TE Connectivity’s LUMAWISE Endurance N Shorting Caps are designed for outdoor lighting applications, offering a convenient and economical way to manage circuit paths. These caps provide IP66 water ingress protection, extending the operating life of light fixtures. Some models include a Metal Oxide Varistor (MOV) for surge protection, safeguarding LED luminaires. They serve as an alternative to light sensing control units and are ANSI Compliant and UL Listed, making them suitable for roadway, street, area, and commercial lighting.
TE CONNECTIVITY 23281181 LUMAWISE Endurance Shorting Cap Specifications:
- Operating Temperature Rating: -40°C to 120°C
- Current Rating: 15 A max
- Voltage Rating: 0 – 480 VAC
- Product Specification: 108-133113
- ANSI Compliance: C136.10
- UL Listing: E66375
- UL-EN Certification: US-32907-UL
- IEC Standards: 61984:2008, 60529, 62262
- Impact Resistance: IK08
- Material: UV stabilized material
Buy the 2328118-1 TE CONNECTIVITY LUMAWISE Endurance Shorting Cap | myMectronic
Purchase the TE Connectivity 2328118-1 LUMAWISE Endurance N Shorting Cap securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 23281181?
You can click on the BUY or RFQ button to purchase 23281181 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 23281181?
You can download the 23281181 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 23281181?
TE CONNECTIVITY
