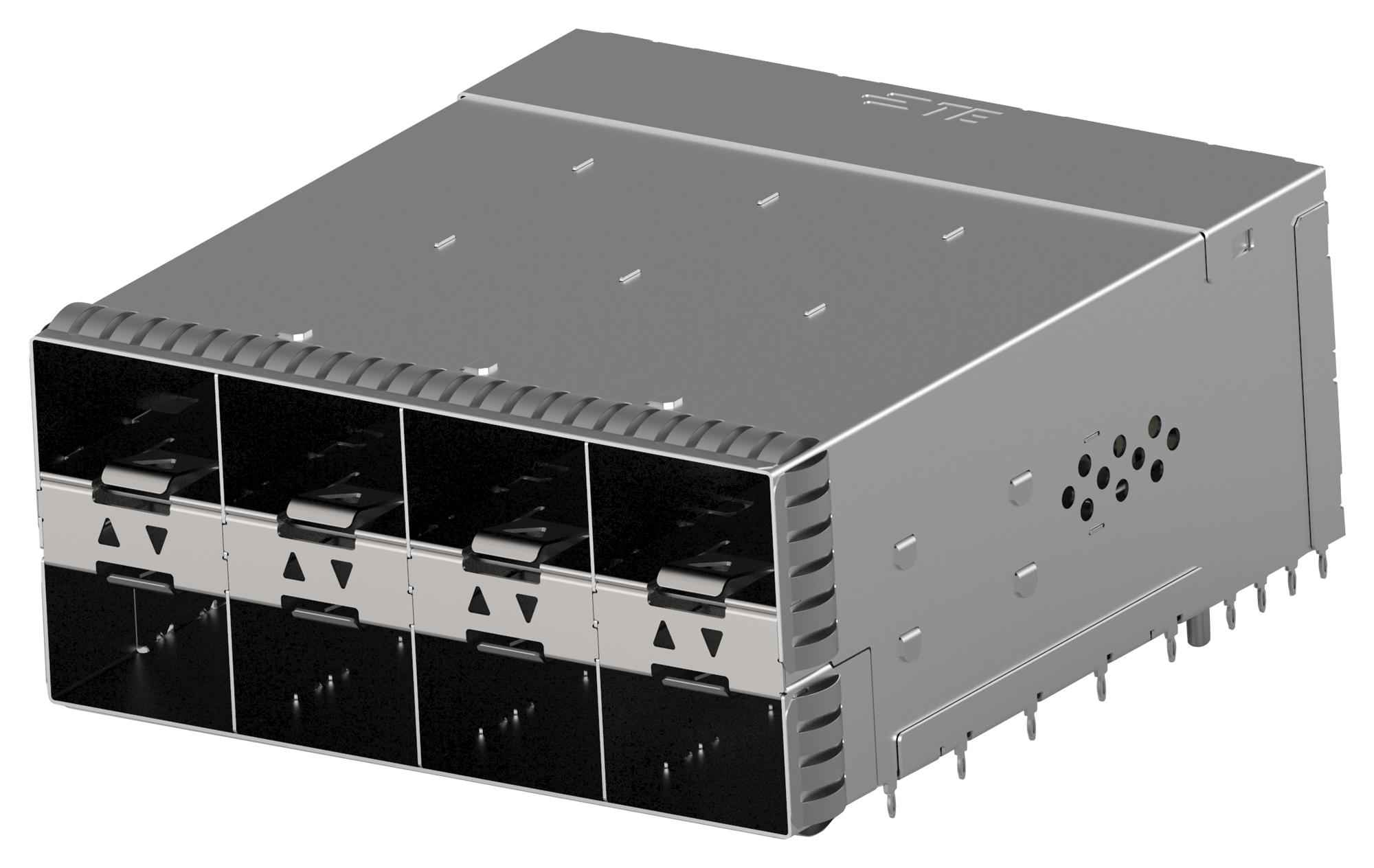

TE CONNECTIVITY 23399787 zSFP+ Data Interconnect
The zSFP+ interconnect is designed for high-speed data transfer, supporting up to 28 Gbps NRZ and 56 Gbps PAM-4. It offers backward compatibility with SFP+ products, allowing hot-swapping and system upgrades without complete redesign. Its surface-mount design supports various port configurations in single and stacked assemblies, enhancing system density and flexibility. The connector includes EMI containment options, corrosion-resistant plating, and operates within -40°C to +85°C. Suitable for telecommunications, data centers, medical, and networking equipment, it ensures reliable, high-performance data interconnection with excellent signal integrity.
TE CONNECTIVITY 23399787 zSFP+ Data Interconnect Specifications:
- Data Rates: Up to 28 Gbps NRZ and 56 Gbps PAM-4, supporting 10 GbE and 16 Gb FC
- Voltage (max.): 120V AC
- Current (max.): 0.5A
- Dielectric Withstanding Voltage: 300V AC between contacts
- Operating Temperature: -40°C to +85°C
- Housing Material: High-temperature thermoplastic, UL 94V-0
- Contact Material: Copper alloy, nickel underplating with tin or gold plating
- Mating Force: 25N, Unmating Force: 11.5N
- Durability: Minimum 250 cycles
- Physical Dimensions: Suitable for single and stacked cage configurations, minimal PCB footprint
- Connector Compatibility: Shares mating interface with SFP+
- Insulation and EMI options: Elastomeric gasket or spring finger options, EMI containment features
- Assembly Configurations: 1x1 to 1x6 port options, stacked assemblies in various configurations
- Additional features: Heat sinks, LEDs, light pipes available, RoHS compliant
Buy the TE Connectivity Series zSFP+ Data Interconnect: 23399787
Purchase the TE Connectivity zSFP+ 23399787 online to experience reliable high-speed data connectivity with support for up to 28 Gbps NRZ and 56 Gbps PAM-4. Ideal for telecommunications, data centers, and networking, this versatile interconnect features backward compatibility with SFP+ modules, ease of installation, and flexible configurations including single and stacked port options. Designed to operate from -40°C to +85°C, it ensures robust performance, excellent signal integrity, and long-term durability—perfect for mission-critical applications requiring minimal insertion loss and EMI suppression. Buy now to upgrade your system effortlessly and efficiently.
Get TE Connectivity zSFP+ 23399787 today—built for high-speed data transfer and long-lasting durability.
