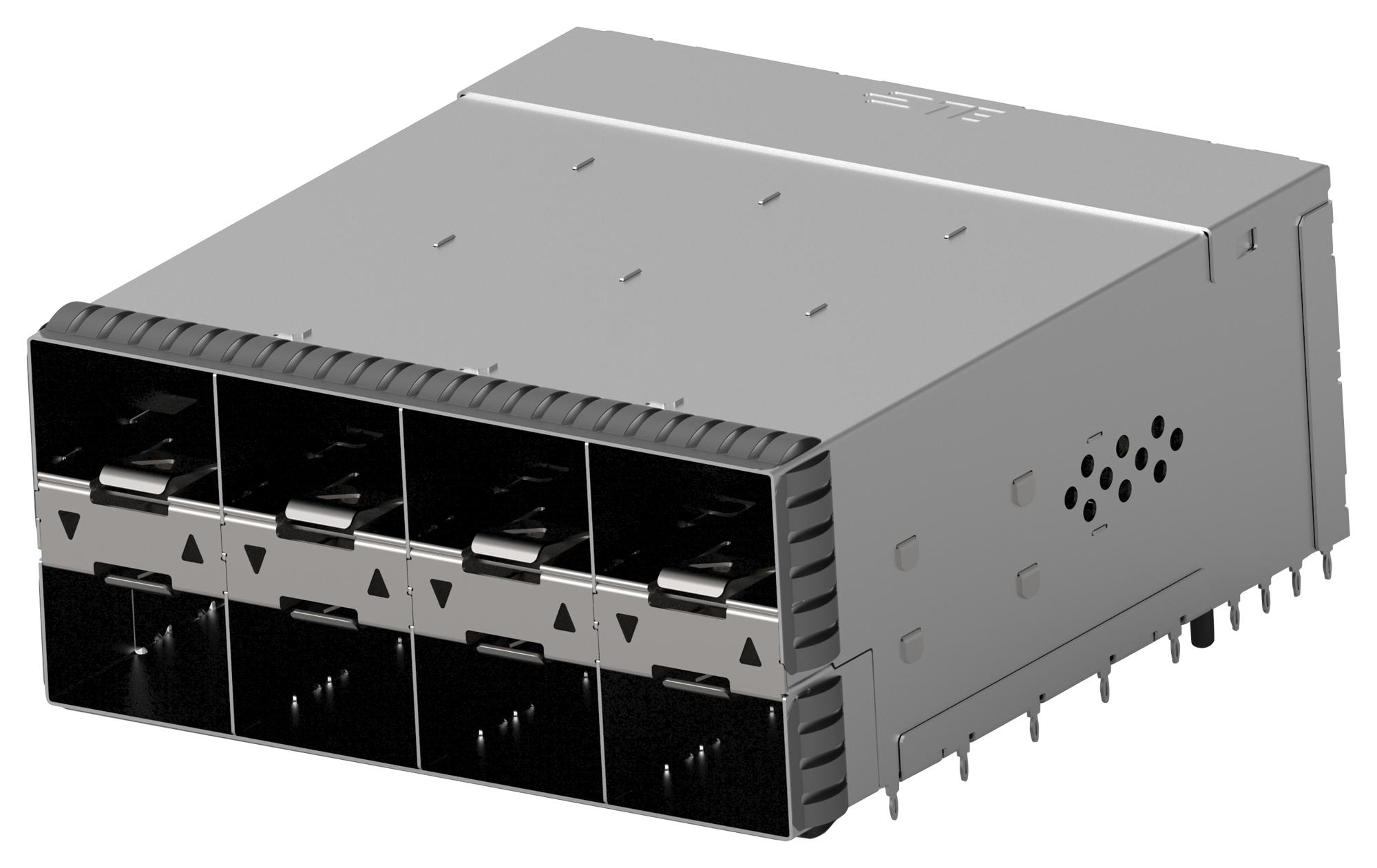

TE CONNECTIVITY 23399788 zSFP+ Interconnect
The zSFP+ pluggable I/O interconnect is a high-speed, backward-compatible solution offering data transfer rates up to 28 Gbps NRZ and 56 Gbps PAM-4. Designed for telecom, data centers, and networking, it features robust construction with high-performance copper contacts and thermoplastic housing. Its thermal and electrical specifications support a temperature range of -40 to +85°C, with low insertion loss and excellent signal integrity. The module supports multiple port configurations, EMI containment options, and is compliant with industry standards like SFF-8402, facilitating scalable upgrades from existing SFP+ systems for enhanced data throughput.
TE CONNECTIVITY 23399788 zSFP+ Interconnect Specifications:
- Data rates: Up to 28 Gbps NRZ and 56 Gbps PAM-4, 10 Gbps Ethernet, 16 Gbps Fibre Channel
- Voltage (max.): 120V AC
- Current (max.): 0.5A
- Dielectric Withstanding Voltage: 300V AC between contacts
- Operating Temperature: -40 to +85°C
- Housing: High-temperature thermoplastic, UL 94V-0, black
- Contacts: High-performance copper alloy with Nickel underplating, Tin and Gold plating options
- Mechanical durability: Minimum 250 cycles
- Physical dimensions: Compatible with standard SFP+ cage sizes, supports multiple port configurations
- EMI containment: Elastomeric gasket or spring finger options available
- Mating Force: 25N, Unmating Force: 11.5N
- Insertion and cage press fit forces: Max. 44.5N and 54.3N respectively
- Modules designed for applications in telecom, data centers, medical diagnostics, and networking
Buy the TE Connectivity 23399788 – Reliable zSFP+ Interconnect for Industrial Applications
Experience the advanced data transmission capabilities of TE Connectivity’s zSFP+ Interconnect, delivering speeds up to 28 Gbps NRZ and 56 Gbps PAM-4. Designed for telecom, data centers, and networking, it features a robust construction with high-performance copper contacts and thermoplastic housing for reliable operation across temperatures. Its backward compatibility ensures seamless upgrades from SFP+ systems, supporting multiple configurations for increased density and space savings. The module’s EMI containment, low insertion loss, and industry-standard compliance make it the ideal choice for scalable, high-speed data solutions online.
Get TE Connectivity 23399788 today—built for precision, long-lasting durability, and scalable high-speed data transfer in industrial environments.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 23399788?
You can click on the BUY or RFQ button to purchase 23399788 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 23399788?
You can download the 23399788 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 23399788?
TE CONNECTIVITY
