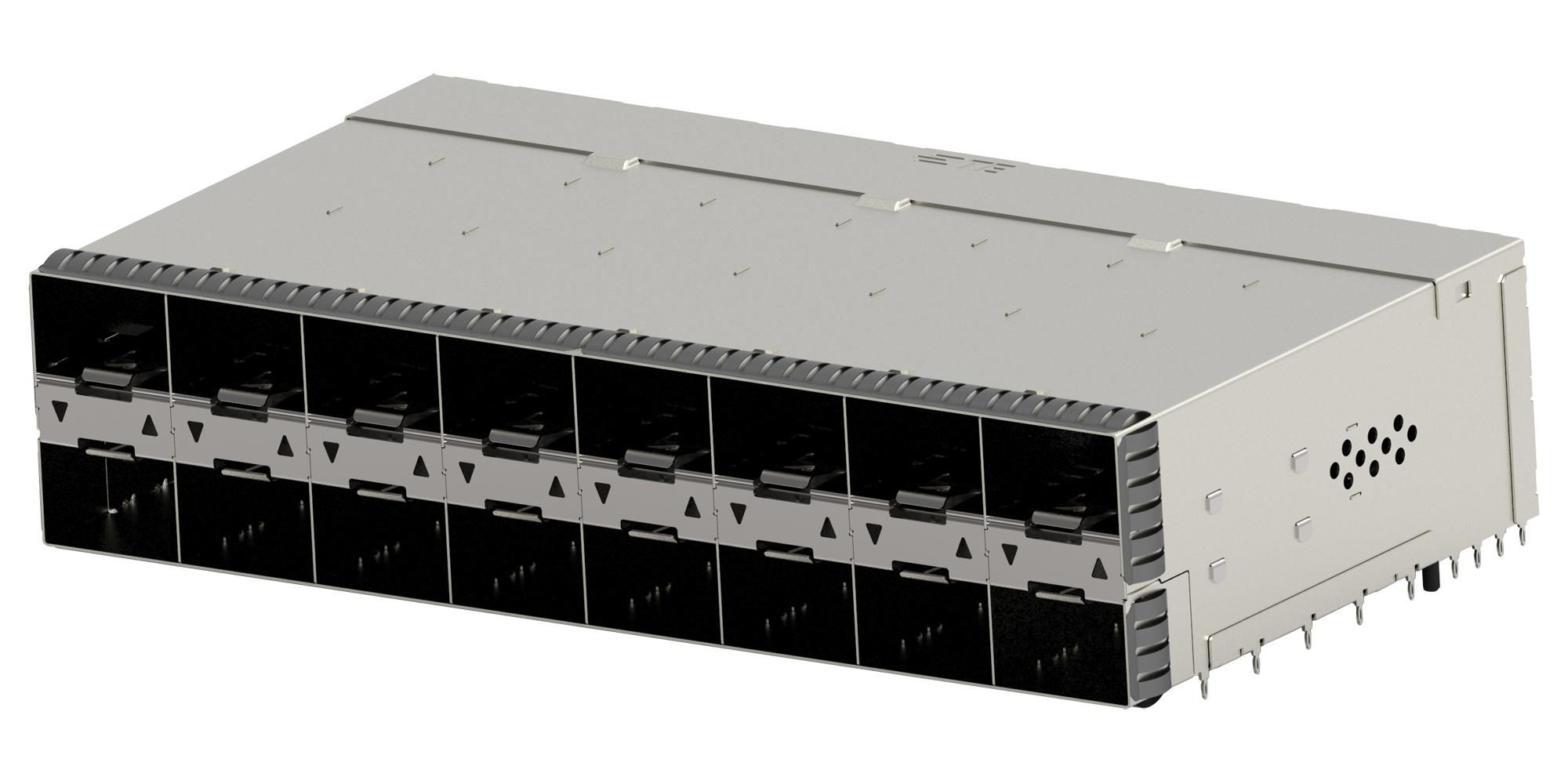

TE CONNECTIVITY 23400338 zSFP+ Data Interconnect
The zSFP+ interconnect is among the fastest single-channel I/O connectors available, supporting data transfer rates up to 28 Gbps NRZ and 56 Gbps PAM-4. It is backwards-compatible with SFP+ interfaces and can be hot-swapped for seamless system upgrades to higher speeds. Designed for high signal integrity, it offers options with EMI containment, various port configurations, and heat sinks. Suitable for data centers, telecommunications, and networking, this compact, high-performance connector ensures reliable data transmission and flexible deployment in demanding applications.
TE CONNECTIVITY 23400338 zSFP+ Data Interconnect Specifications:
- Data Rates: Up to 28 Gbps NRZ and 56 Gbps PAM-4
- Operating Voltage: Max 120V AC
- Maximum Current: 0.5A
- Dielectric Withstanding Voltage: 300V AC between contacts
- Mating Force: 25N, Unmating Force: 11.5N
- Durability: Min. 250 cycles
- Housing Material: High-temperature thermoplastic, UL 94V-0
- Contacts: High-performance copper alloy, Nickel underplating, Tin or gold plating
- Operating Temperature: -40°C to +85°C
- Physical Dimensions: Various configurations with port options from 1x1 to 2x12, PCB thickness min. 1.57mm
- Mounting: Surface-mount design with optional heat sinks and LEDs
- Compliance: SFF-8402, compatible with Fibre Channel 32G
Buy the TE Connectivity Series zSFP+ Data Interconnect: 23400338
Get your TE Connectivity zSFP+ 23400338 interconnect now and enjoy top-tier performance with data transfer rates up to 28 Gbps NRZ and 56 Gbps PAM-4. This high-speed, reliable connector is compatible with SFP+ systems, enabling seamless upgrades for data centers, telecom infrastructure, and networking applications. Its rugged design, optional EMI containment features, and various port configurations ensure flexible deployment to maximize space and performance. Trust TE Connectivity for quality and long-term operational efficiency in your critical data transmission needs.
Buy TE Connectivity zSFP+ 23400338 now and experience unmatched reliability and performance in high-speed communication systems.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 23400338?
You can click on the BUY or RFQ button to purchase 23400338 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 23400338?
You can download the 23400338 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 23400338?
TE CONNECTIVITY
