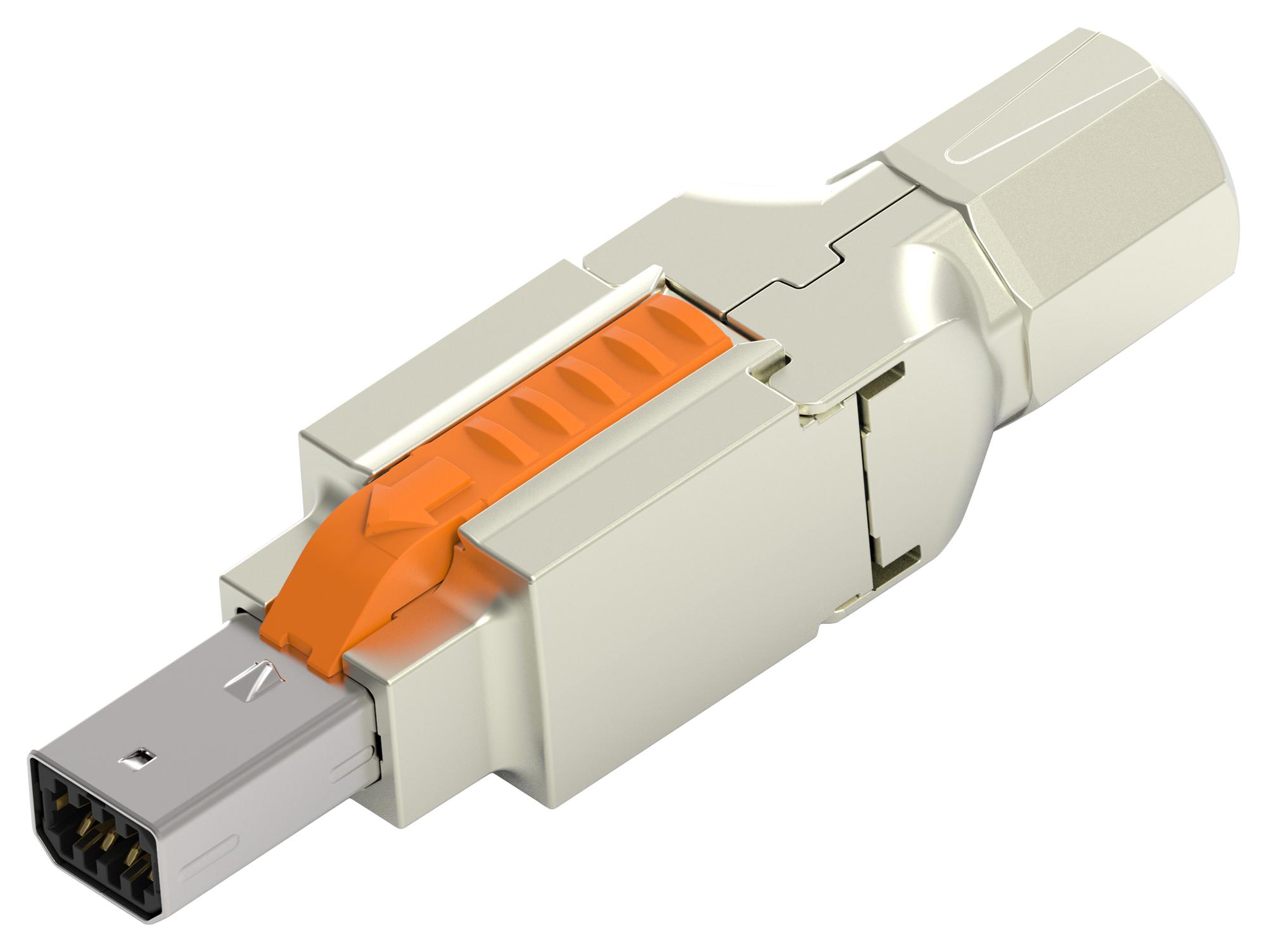

TE CONNECTIVITY 23503042 Industrial Ethernet Connector
The TE Connectivity Industrial Mini I/O connector is suitable for Cat6A Ethernet applications, offering quick, tool-free installation and compatibility with 8-wire AWG24/26 cables. Its compact design is one-quarter the size of traditional RJ45 connectors, enabling efficient use of PCB space. The connector automatically trims wires to optimal length during connection, ensuring reliable transmission performance. It supports high-speed data transfer, including PoE, and is ideal for industrial environments such as robotics, machinery, drives, motors, and distributed peripherals. This field-installable connector features innovative IDC termination technology that reduces installation time compared to traditional soldering methods.
TE CONNECTIVITY 23503042 Industrial Ethernet Connector Specifications:
- Port Matrix Configuration: 1x1
- Connector Contact Density: High
- Connector Style: Plug
- Shielded: Yes
- Housing Material: PA 4T GF30
- Centerline (Pitch): 1.27 mm
- Operating Temperature Range: -40°C to +105°C
- Cable Compatibility: Cat 5e, 8-wire AWG24/26
- Power & Signal: Power & Signal Circuit Application
- Mounting: Cable Mount (Free-Hanging)
- Standards Compliance: EU RoHS, REACH, China RoHS 2, EU ELV
- Max Current Rating: Not specified
- Size: Compact design, one-quarter of traditional RJ45
- Installation Method: Tool-free, IDC termination
- Product Length/Dimensions: Not specified
- Certifications: UL, CE (based on compliance info)
Buy the Buy TE Connectivity Industrial Mini I/O Part Number 23503042 Online
Secure your TE Connectivity Industrial Mini I/O connector online today to streamline your industrial networking setup. This compact, shielded connector offers tool-free installation, high-speed data transfer including PoE, and compatibility with Cat 6A Ethernet cables. Perfect for robotics, machinery, and industrial environments, its innovative IDC termination reduces installation time. Ensure dependable performance in harsh conditions with this field-installable, UL and CE certified connector. Buy now and enhance your system’s reliability and network efficiency with minimal downtime and easy setup.
Order your TE Connectivity 23503042 Industrial Mini I/O connector today and experience quick, reliable Ethernet connections for your industrial automation projects.
