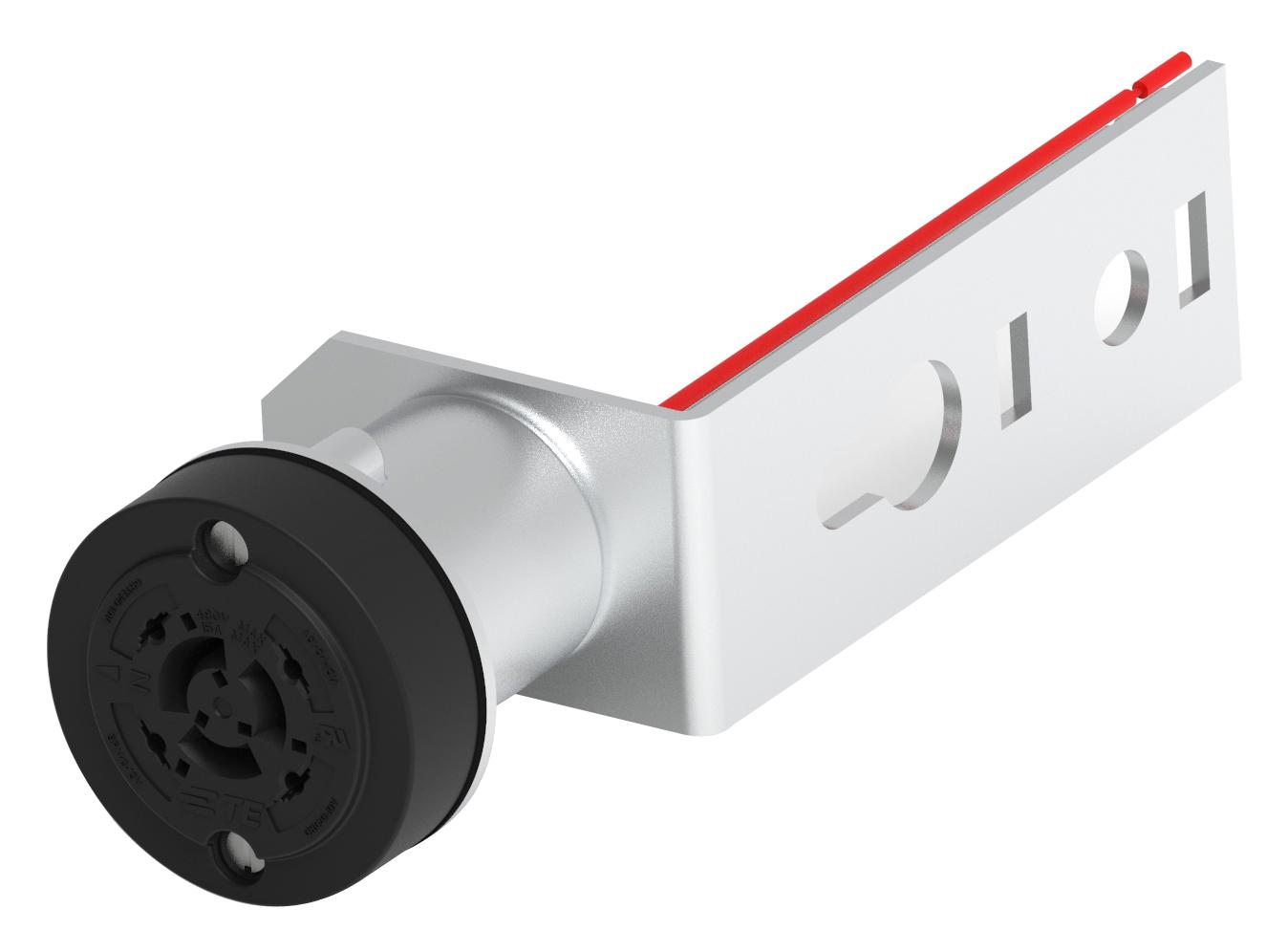

TE CONNECTIVITY 23639291 Lighting Receptacle Assembly
The LUMAWISE Endurance N Bracket Mount Receptacle Assembly is designed for outdoor street, area, decorative, and commercial lighting, simplifying remote mounting of controls. Crafted from durable aluminum, it features a 2.0-inch width, 3.0-inch depth, and 5.5-inch height bracket, with a 2.56-inch diameter and 2.63-inch height housing. Rated for 15 amps and operating between 120-480VAC, it complies with ANSI C136.10 and ANSI C136.41 standards. Fully assembled with an integral gasket, it offers IP66 sealing, ensuring reliability in outdoor environments. It supports both standard and rotatable receptacles and is compatible with 14 AWG and 18 AWG wiring rated at 105°C.
TE CONNECTIVITY 23639291 Lighting Receptacle Assembly Specifications:
- Materials: Aluminum bracket & housing
- Bracket Dimensions: Width 2.0 inch, Depth 3.0 inch, Height 5.1/2 inch
- Housing Dimensions: Diameter 2.56 inch, Height 2.63 inch
- Wire Rating: 14 AWG and 18 AWG, rated at 105° C
- Current Rating: 15 AMPS
- Voltage Range: 120 - 480VAC
- Nipple Size: 1/2” - 4NPAL (ANSI/ASME B1.20.1)
- Standards: ANSI C136.10, ANSI C136.41
- Sealing: IP66 with integral gasket
- Application: Outdoor roadway, street, area, decorative and commercial lighting
- Design: Fully assembled, compatible with standard and rotatable receptacles
Buy the TE Connectivity Series Lumawise Endurance N: 23639291
Purchase the TE Connectivity Lumawise Endurance N Receptacle Assembly online today to enhance your outdoor lighting projects with a highly reliable, IP66-rated solution. Designed for street, decorative, and commercial applications, this durable aluminum assembly simplifies installation and ensures long-lasting performance. Compatible with ANSI standards and available with standard or rotatable receptacles, it supports 15 amps and operates at 120 to 480VAC. Order now for quick delivery and seamless integration into your outdoor lighting setup.
Get TE Connectivity Lumawise Endurance N 23639291 today—built for outdoor lighting reliability and easy remote control mounting.
