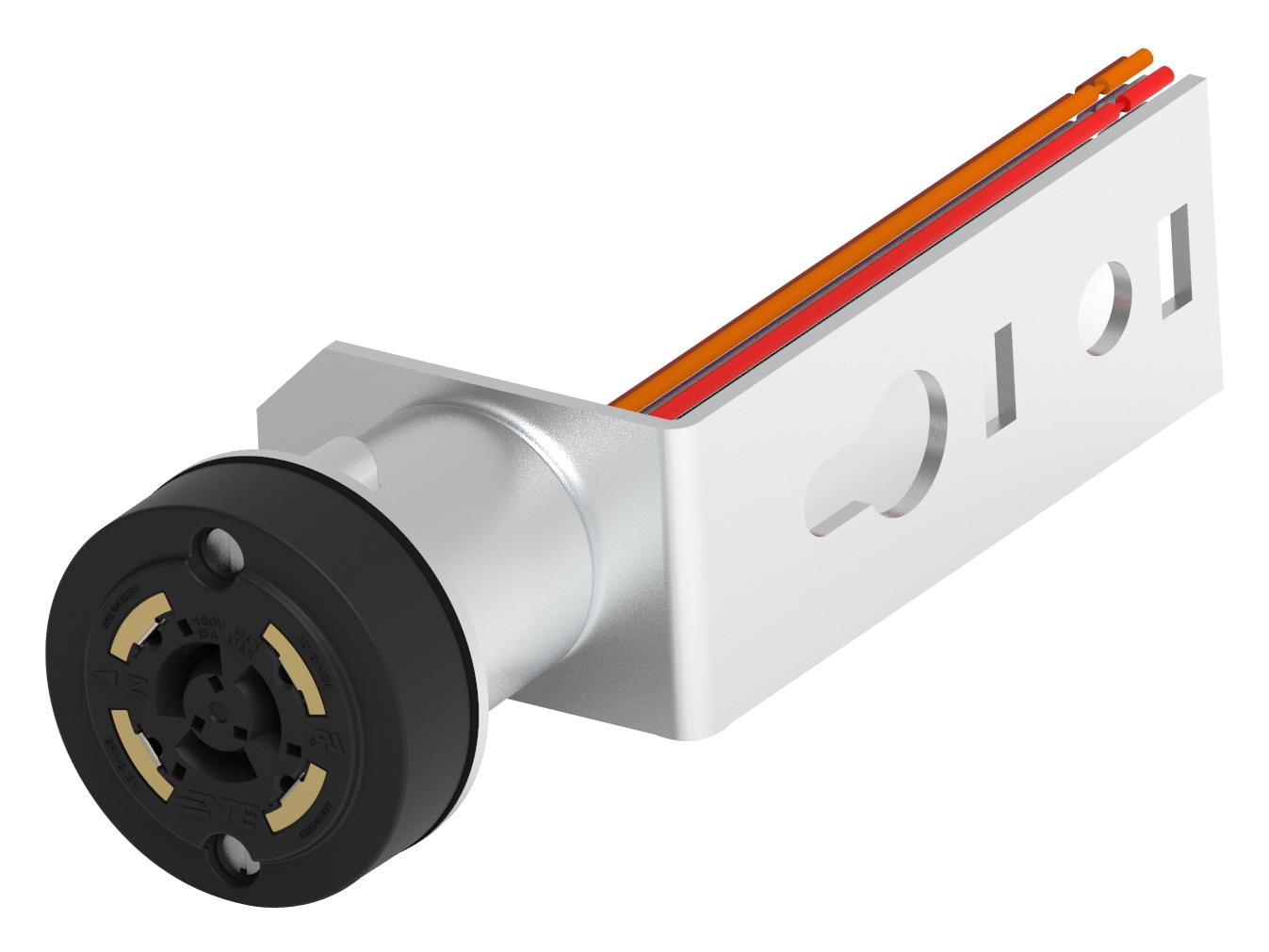

TE CONNECTIVITY 23639293 Lighting Receptacle
The LUMAWISE Endurance N Bracket Mount Receptacle Assembly by TE Connectivity is designed for outdoor street and area lighting, offering easy remote mounting for discrete and network lighting controls. Available in 3, 5, and 7 position configurations, it features durable aluminum construction, IP66 sealing, and compliance with ANSI standards. Suitable for roadway, park, decorative, and commercial lighting, it simplifies installation, enhances reliability, and maintains aesthetic appeal of vintage and LED luminaires, making it an ideal choice for outdoor lighting applications.
TE CONNECTIVITY 23639293 Lighting Receptacle Specifications:
- Housing Material: Aluminum
- Bracket Dimensions: Width 2.0 inch, Depth 3.0 inch, Height 5-1/2 inch
- Housing Dimensions: Diameter 2.56 inch, Height 2.63 inch
- Current Rating: 15 Amps
- Voltage Range: 120 - 480VAC
- Wire Ratings: 14 AWG and 18 AWG, 105°C
- Standards Compliance: ANSI C136.10, ANSI C136.41
- Mechanical: Nipple 1/2” - 4NPAL, as per ANSI/ASME B1.20.1
- Seal Rating: IP66
- Application: Roadway, street, area, decorative, and commercial lighting
- Receptacle Configurations: Standard or rotatable, 3, 5, & 7 position options
Buy the Buy TE Connectivity LUMAWISE ENDURANCE N Bracket Mount Receptacle Assembly Part Number 23639293 Online
Enhance your outdoor lighting installation with the TE Connectivity LUMAWISE Endurance N Receptacle Assembly. Featuring durable aluminum construction, IP66 sealing, and ANSI compliance, this versatile receptacle simplifies remote mounting for street, roadway, and decorative lighting. Available in multiple configurations, it ensures secure connections and reliable operation in harsh outdoor environments. Easily installed, it supports both discrete and network lighting controls, providing an ideal solution for parking lots, parks, and commercial areas seeking efficient, long-lasting, and aesthetically pleasing lighting control components.
Buy TE Connectivity LUMAWISE ENDURANCE N Bracket Mount Receptacle Assembly now and experience unmatched reliability and performance for outdoor lighting controls.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 23639293?
You can click on the BUY or RFQ button to purchase 23639293 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 23639293?
You can download the 23639293 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 23639293?
TE CONNECTIVITY
