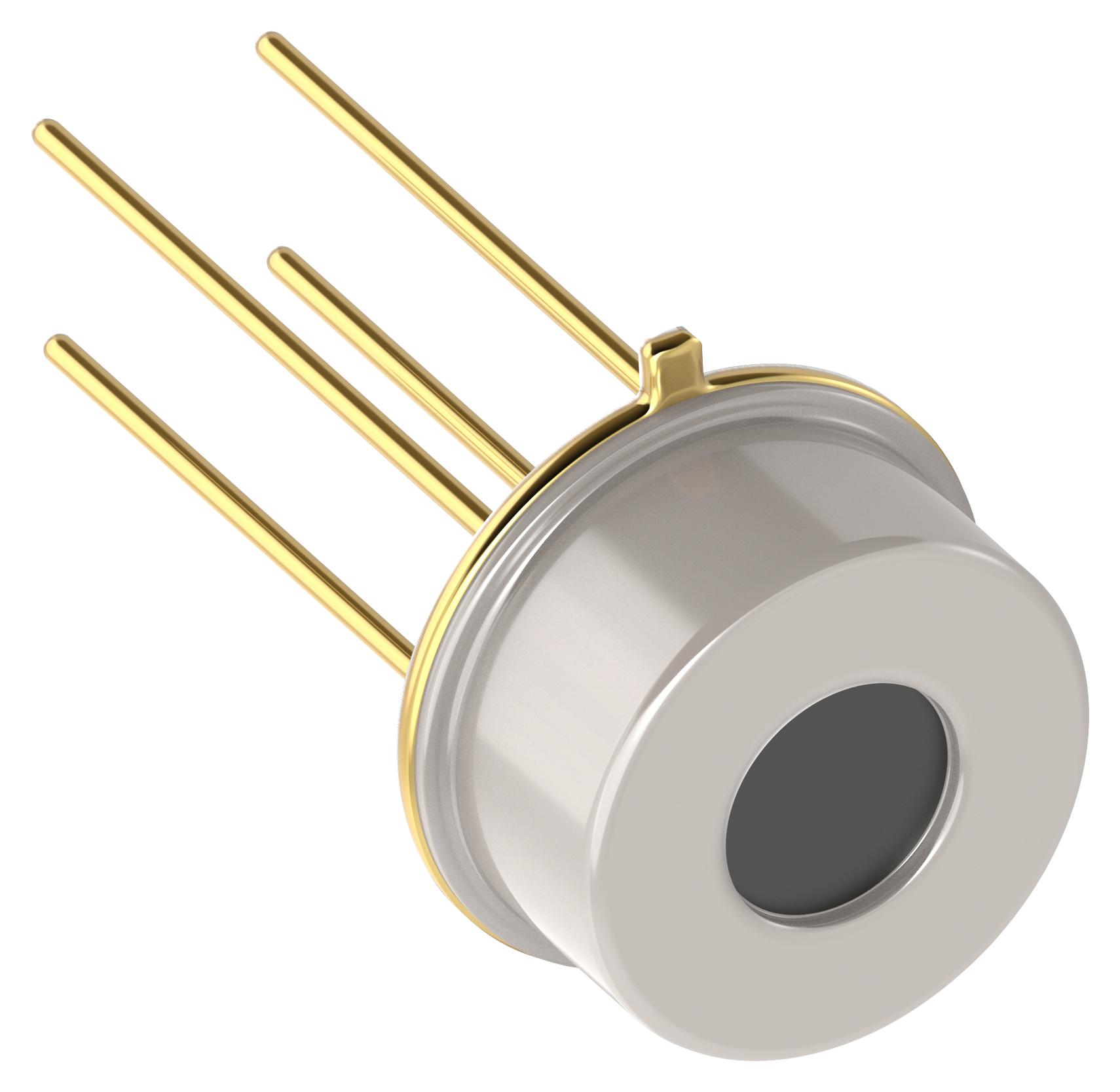

TE CONNECTIVITY GTPCO033 Infrared Thermopile Sensor
The MEAS analogue infrared thermopile is a unique temperature sensor capable of measuring surface temperatures without physical contact. It features an 88° field of view at 50% of maximum sensitivity, a voltage sensitivity of 7 mV with a >5.5 µm filter bandpass, and an internal 100 kΩ NTC thermistor as a reference temperature sensor at 25°C. The measurement range spans from -40°C to 300°C, offering high accuracy after compensation and calibration. Additional features include a built-in temperature reference, hermetic enclosure, infrared filter window, making it suitable for non-contact measurements, medical thermometry, remote surface temperature monitoring, and industrial production line applications.
TE CONNECTIVITY GTPCO033 Infrared Thermopile Sensor Specifications:
- Measurement Range: -40°C to 300°C
- Field of View: 88° (TS305), 110° (TS318 variants)
- Voltage Sensitivity: 7 mV (TS305), 8.4 mV (TS318), 5.0 mV (TS318-1B0814)
- Filter Transmission Range: >5.5 µm (TS305), 7.5 to 13.5 µm (TS318 variants)
- Infrared Filter Efficiency: 0.5% to 1.0%
- Response Time: 7-17 ms depending on model
- Internal Reference: 100 kΩ NTC thermistor or RTD
- Operating Temperature Range: -20°C to 85°C (continuous), -20°C to 100°C (max one hour)
- Dimensions: Approximately 3.8 x 2.4 mm for TS305, 4.0 x 2.7 mm for TS318 variants
- Hermetic Enclosure and Infrared Filter Window
- Thermopile Resistance: 40-100 kΩ
- Temperature Coefficient of Resistance: -0.02 to -0.10 %/K
- Response Time: 7 to 17 ms
- Suitable Applications: Medical thermometry, remote surface temperature, industrial production monitoring, non-contact measurement
Buy the MEAS Series Infrared Thermopile: GTPCO033
Purchase the MEAS infrared thermopile sensor GTPCO033 online today and experience reliable non-contact temperature measurement from -40°C to 300°C. Featuring high accuracy after calibration, built-in temperature references, hermetic enclosure, and infrared filtering, it is ideal for medical thermometry, industrial surface monitoring, and remote sensing applications. Its compact design, rapid response time, and versatile field of view make it suitable for various industrial and healthcare settings. Order now to ensure precise and durable temperature sensing in your projects.
Get MEAS series infrared thermopile GTPCO033 today—built for precision and long-lasting durability in temperature measurement.
