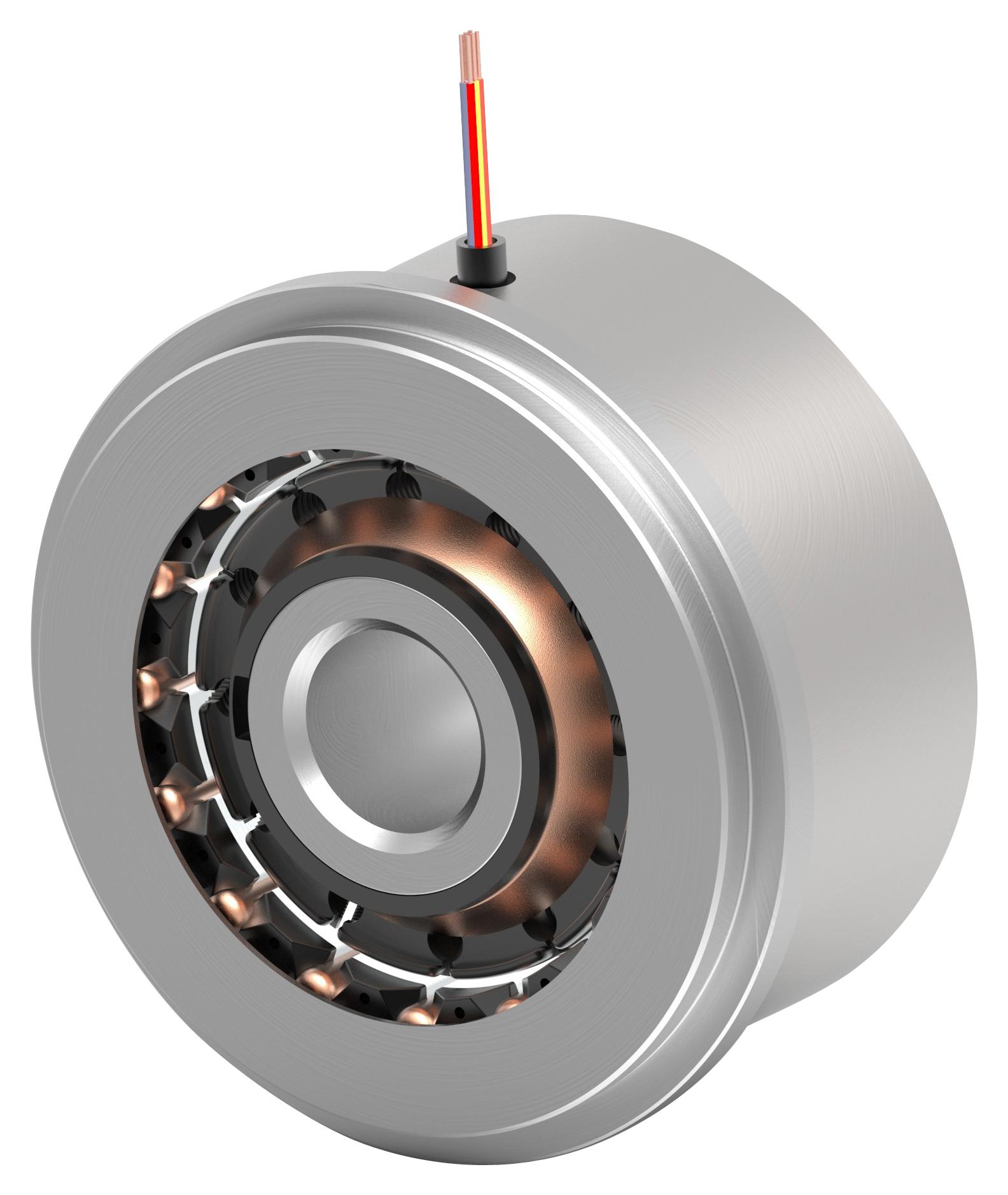

TE CONNECTIVITY 23672371 resolver
This hollow shaft resolver features a size 21 shaft with a 12.7 mm inner diameter, supporting a maximum rotational speed of 20,000 rpm and an inertia of approximately 20 g·cm². Designed for precise angular measurement, it operates reliably within temperatures from -55°C to +150°C and withstands shocks up to 41,000 m/s² and vibrations of 200 m/s. Electrical parameters include an input voltage of 7V, resistance of 20Ω, and a transformation ratio of 0.4, with phase shifts between -10° and 0°. Its robust construction ensures accurate position feedback in industrial automation and control systems.
TE CONNECTIVITY 23672371 resolver Specifications:
- Shaft Inner Diameter: 12.7 mm
- Size: 21
- Number of Poles: 6
- Max Rotational Speed: 20,000 rpm
- Rotor Inertia: approx. 20 g·cm²
- Operating Temperature: -55°C to +150°C
- Shock Resistance: 41,000 m/s²
- Vibration Resistance: 200 m/s
- Electrical Input Voltage: 7V
- Input Resistance: 20Ω
- Frequency: 8 kHz
- Transformation Ratio: 0.4
- Phase Shift: -10° to 0°
- Residual Voltage: Max 25 mV
- High Voltage Test: 500 Vac
- Physical Length: 300 mm
- Wire: AWG 26, Teflon insulated
Buy the TE Connectivity Series Resolver: 2367237-1
Purchase the TE Connectivity Series Resolver 2367237-1 online now to upgrade your control systems with high-precision, durable, and temperature-resistant rotary position sensors. Designed for demanding industrial environments, this resolver offers excellent electromagnetic compatibility, fast response, and stable operation at high speeds up to 20,000 rpm. Its robust construction ensures long-term reliability, minimizing downtime and maintenance costs. Secure your industrial automation and control projects today by ordering this high-performance resolver online. Fast delivery and manufacturer support guaranteed.
Order your TE Connectivity Series Resolver 2367237-1 today and ensure reliable position feedback for your industrial automation projects.
